Milling Process: Enhancing Efficiency and Quality

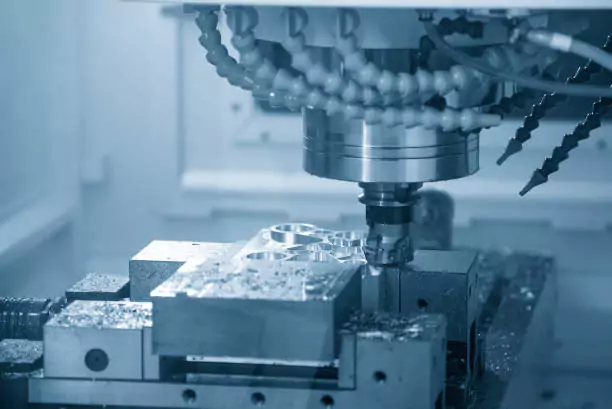

Milling is a crucial machining technique in CNC machining, which involves moving the tool along the workpiece surface to remove material to achieve the desired shape and surface quality. Throughout the machining process, milling plays a pivotal role. This article will delve into the definition of milling, its importance in CNC machining, differences from other milling techniques, demonstrating its critical role in optimizing processing efficiency and quality.

Milling, as the name suggests, involves moving the milling tool on the workpiece surface to gradually remove material to achieve the desired shape and surface quality. Compared to other machining techniques, milling boasts high precision and efficiency, making it widely applied across various industrial sectors. In CNC machining, milling is indispensable.

The significance of milling in CNC machining is evident. Firstly, it enables high-precision processing of workpiece surfaces, ensuring that product geometric dimensions and surface quality meet design requirements. Secondly, milling is an effective method for achieving workpiece flatness and surface roughness requirements. By properly setting processing parameters and selecting suitable tools, processing efficiency can be improved while maintaining accuracy, thus reducing processing costs.

Compared to other milling techniques, milling offers significant advantages. Firstly, compared to techniques like end milling and side milling, milling is more suitable for processing the overall surface of workpieces, allowing for the completion of large-scale processing tasks at once, thereby improving processing efficiency. Secondly, milling facilitates fine processing of workpiece surfaces, achieving higher flatness and surface quality requirements. Additionally, milling can address the processing needs of complex surfaces, exhibiting greater versatility.

In-depth Understanding of the Milling Process

As one of the crucial techniques in CNC machining, the milling process involves various factors, including technical details, machine types, and aspects of manual and automatic processing. This section will delve into the milling process to help readers better understand the operation mechanism of this critical technique.

Description of Milling Technology: Milling is a method of material removal by moving a milling cutter on the workpiece surface layer by layer. It is commonly applied in the processing of workpieces requiring flat surfaces and high precision dimensions. Different types of milling cutters can be used, including flat end mills, ball end mills, etc., selected based on the shape of the workpiece and processing requirements.

Types of Machines Used: Milling is typically performed using machining centers or milling machines. Machining centers, equipped with multi-axis control and automatic tool change functions, are suitable for processing complex shapes and high-precision requirements of workpieces, while milling machines are suitable for processing simple shapes and standard dimensions of workpieces.

Different Characteristics of Milling Machines: Machining centers and milling machines have their respective characteristics during the milling process. Machining centers have the advantages of high speed, high precision, and versatility, suitable for processing complex workpieces, and can achieve automated production, while milling machines are relatively simple, suitable for processing ordinary workpieces, with lower costs.

Comparison of Manual and Automatic Milling Processes: Manual milling refers to operators controlling milling machines manually, requiring experienced technical personnel, and with low processing efficiency and difficult-to-guarantee processing accuracy. Automatic milling, on the other hand, involves using CNC programs to control machining centers or milling machines, featuring high efficiency, high precision, and good repeatability, suitable for batch production and processing of complex workpieces.

Optimizing the Milling Workflow: From Theory to Practice

As an important CNC machining technique, the milling principle involves multiple steps, including workpiece positioning, machine positioning, adjustment of processing parameters, and specific processing processes. This section will combine the milling principle with practical operations to delve into methods and techniques for optimizing the milling workflow, aiming to improve processing efficiency and quality.

The step-by-step decomposition of the milling process is as follows:

Workpiece Positioning:

Before milling, it is essential to accurately position the workpiece on the machining platform. This involves using fixtures or locating pins to firmly secure the workpiece on the machining table, ensuring its accurate and stable position to avoid deviations and vibrations during processing.

Machine Positioning:

Next is the positioning of the machining center or milling machine to ensure the correct relative position and angle between the tool and the workpiece. This involves the control of machine tool axes motion, moving the tool to the correct starting position either through CNC programs or manual operation to commence processing.

Adjustment of Feed Speed and Spindle Speed:

After determining the positions of the workpiece and the tool, it’s necessary to adjust the feed speed and spindle speed based on processing requirements and material characteristics. The feed speed affects processing rate and surface quality, while spindle speed influences cutting efficiency and tool life, thus requiring reasonable adjustments according to actual conditions to achieve optimal processing effects.

Execution of the Processing Process:

Once everything is set, the processing process can commence. Controlling the machining center to perform milling according to pre-set processing paths and cutting parameters. It’s crucial to monitor the processing status closely, adjusting processing parameters and tool positions timely to ensure processing quality and efficiency.

In practical operations, measures can be taken to optimize the milling workflow:

• Develop detailed machining plans and process flows, including workpiece positioning, machine adjustments, and processing parameter settings, ensuring each step is thoroughly considered and prepared. • Utilize advanced CNC technologies and tools to enhance processing accuracy and efficiency. • Regularly maintain and upkeep machine tools and tools to keep equipment in good condition, reducing failures and downtime. • Train operators to enhance their skills and experience levels, reducing the likelihood of operational errors and accidents.

Preferred Face Milling Tools: Key to Precision Machining

Face milling, as an important CNC machining technology, greatly depends on the type of milling cutter selected for its efficiency and quality. In this section, the main face milling tools will be outlined, including shell end mills, end mills, and fly cutters, analyzing their characteristics, application scenarios, and suggestions for tool selection based on material and design requirements.

Overview of Major Face Milling Tools:

Shell End Mills: Shell end mills are commonly used face milling tools with a semi-circular cutting edge, suitable for precise machining of flat and contoured surfaces. Shell end mills feature low cutting forces, high cutting efficiency, and good surface quality, widely used in mold manufacturing, aerospace, and other fields.

End Mills: End mills are milling cutters with straight blades, suitable for machining workpiece edges and flat surfaces. End mills feature high cutting forces and efficiency, suitable for scenarios involving hard materials and large-area machining.

Fly Cutters: Fly cutters are high-speed rotating cutting tools, typically used for fine surface machining. Fly cutters feature high machining accuracy and good surface quality, suitable for machining hard materials and complex surfaces.

Characteristics and Applications of Each Tool Type:

Shell end mills are suitable for precise machining of contoured and flat surfaces, especially for workpieces with high precision and surface quality requirements such as molds. End mills are suitable for machining workpiece edges and flat surfaces, with characteristics of high cutting forces and efficiency, suitable for large-area machining and scenarios with high cutting force requirements. Fly cutters are suitable for fine surface machining of workpieces, featuring high machining accuracy and good surface quality, suitable for the machining needs of complex surfaces and hard materials.

Suggestions for Tool Selection Based on Material and Design Requirements:

For hard materials such as titanium alloys and stainless steel, it is recommended to choose end mills or fly cutters for machining to ensure machining efficiency and cutting quality. For workpieces requiring high surface quality, such as molds, it is recommended to choose shell end mills for machining to obtain better surface finish and precision. Before machining, appropriate milling cutter types should be selected according to specific machining requirements and material characteristics, and machining parameters should be adjusted reasonably to achieve the best machining results.

Precision Selection and Skillful Application: Enhancing Efficiency and Quality in Face Milling

Effective tool selection and usage skills are crucial in face milling operations, directly affecting machining efficiency and quality. This section will discuss how to effectively select and use tools in face milling operations, including considerations for cutting material properties, tool angle effects, advantages of CNC modes, and precautions to avoid tool wear and damage.

Consideration of Cutting Hardness and Softness of Materials:

When selecting face milling tools, it is necessary to fully consider the hardness and softness of the workpiece materials. For hard materials such as stainless steel and titanium alloys, it is recommended to choose milling cutters with strong wear resistance and high cutting forces, such as end mills or fly cutters, to ensure cutting efficiency and machining quality. For soft materials such as aluminum alloys and copper, shell end mills can be selected for machining to achieve better machining surface quality and accuracy.

Impact of Tool Angle on Machining:

Tool angle is one of the important factors affecting the effectiveness of face milling operations. Appropriate tool angles can improve cutting performance, reduce cutting forces, and minimize tool wear and machining vibrations. When selecting tool angles, reasonable adjustments should be made based on factors such as workpiece shape, machining depth, and cutting parameters to achieve the best machining results.

Advantages of CNC Modes Compared to Manual Face Milling:

Relative to manual face milling, CNC modes have many advantages. Firstly, CNC modes can achieve automation and highly precise control of the machining process, improving machining efficiency and consistency. Secondly, CNC modes can reduce machining time and cutting costs by optimizing machining paths and adjusting cutting parameters. Additionally, CNC modes can achieve machining of complex surfaces and multi-axis linkage machining, expanding the scope of machining and application areas.

Precautions to Avoid Tool Wear and Damage During Machining:

In order to prolong tool life and ensure machining quality, it is necessary to avoid tool wear and damage during machining. Firstly, appropriate tool materials and coatings should be selected to improve wear resistance and high-temperature resistance. Secondly, machining parameters should be controlled to avoid excessive feed rates and cutting depths, reducing tool wear. Additionally, tools should be inspected and maintained regularly, and worn tools should be replaced promptly to ensure machining quality and safe production.

Optimizing Face Milling Processes: Enhancing Efficiency and Quality in Machining

Face milling, as an important process in CNC machining, can adopt various face milling programs according to different machining requirements and workpiece characteristics. This section will delve into various face milling programs, including general face milling, heavy-duty face milling, high-feed milling, and surface treatment using wiper inserts, and explore optimization techniques for each operation type, aiming to improve machining efficiency and quality.

Explanation of Various Face Milling Programs:

General Face Milling: General face milling is a common face milling program suitable for machining the overall surface of workpieces, including flat and contoured surfaces. General face milling features a wide processing range and strong applicability, often used for machining workpieces with conventional shapes and sizes.

Heavy-Duty Face Milling: Heavy-duty face milling is suitable for machining large, thick-walled workpieces, featuring large cutting forces and cutting depths, suitable for machining hard materials and large-sized workpieces.

High-Feed Milling: High-feed milling is an efficient face milling program that increases machining rates by increasing feed rates and spindle speeds. High-feed milling is suitable for rapid machining of large-area workpieces, with advantages of high machining efficiency and short production cycles.

Surface Treatment Using Wiper Inserts: In addition to traditional cutting methods, surface treatment can also be performed using wiper inserts. Wiper inserts can remove burrs and roughness from workpiece surfaces through friction and pressure during machining, improving surface finish and machining accuracy.

Optimization Techniques for Each Operation Type:

For general face milling, machining efficiency and quality can be improved by optimizing tool selection, machining parameter settings, and machining path planning, while paying attention to controlling tool wear and workpiece vibration during machining.

For heavy-duty face milling, appropriate cutting tools and parameters should be selected, and cutting depths and feed rates should be controlled properly to avoid excessive cutting forces and tool damage.

In high-feed milling, the focus is on increasing machining rates while ensuring machining quality and tool life. Efficient machining can be achieved by optimizing machining paths, improving tool rigidity, and machining stability.

When using wiper inserts for surface treatment, suitable insert materials and machining parameters should be selected to ensure contact quality and machining effectiveness with the workpiece surface.

Optimizing Machining Schemes: Comparison and Application of Face Milling and Peripheral Milling

Face milling and peripheral milling are two common milling techniques in CNC machining, differing in machining principles, applicable scenarios, and machining effects. This section will compare and analyze face milling and peripheral milling, helping readers choose suitable machining schemes to improve machining efficiency and quality.

Main Differences between Face Milling and Peripheral Milling:

Face milling is mainly aimed at machining workpiece surfaces, removing material along the workpiece surface to achieve the desired shape and surface quality, while peripheral milling is aimed at machining workpiece edges, removing excess material around the workpiece edge to trim and finish the workpiece edge.

Comparative Advantages and Limitations of Each Technology:

The advantage of face milling lies in its wide applicability, enabling high-precision machining of workpiece surfaces with high efficiency and good surface quality. However, face milling requires high flatness and shape requirements for workpieces and is not suitable for edge machining. Peripheral milling, on the other hand, can achieve precise machining of workpiece edges, suitable for scenarios with strict requirements for workpiece edges, but with lower machining efficiency and not suitable for machining the overall surface of workpieces.

Applicability of Face Milling and Peripheral Milling in Different Scenarios:

In scenarios where machining of the overall surface of workpieces is required, such as machining of planes, surfaces, and holes, face milling is a more suitable choice, enabling efficient machining and high-quality machining surfaces. In scenarios where machining of workpiece edges is required, such as machining of outer circles, inner holes, and contours, peripheral milling is a more appropriate choice, enabling precise edge machining and finishing.

In summary, face milling and peripheral milling have their respective applicable scenarios and advantages. In actual machining, it is necessary to choose according to the specific shape of the workpiece, machining requirements, and production needs. By selecting appropriate machining schemes and combining optimized machining parameters and techniques, machining efficiency and quality can be improved, providing more reliable machining solutions for production manufacturing.

Optimizing Face Milling Processes: Practical Tips to Improve Machining Efficiency and Quality

Face milling, as a crucial process in CNC machining, its optimization process is crucial to enhancing machining efficiency and quality. In this section, some practical tips will be introduced to help companies optimize face milling processes, including the importance of proper tools and settings, ensuring the correctness of milling parameters, the importance of sharp cutting tools for efficient machining, and suggestions for increasing productivity and accuracy in face milling operations.

Importance of Proper Tools and Settings:

Selecting the right tools and settings is critical to ensure smooth face milling operations. Firstly, appropriate milling cutter types and cutting parameters should be selected based on the hardness, shape, and size of the workpiece material. Secondly, the workpiece clamping device of the machining center or milling machine should be correctly set to ensure stable fixation of the workpiece and avoid vibration and deviation during machining.

Ensuring the Correctness of Milling Parameters:

The correctness of milling parameters directly affects machining quality and efficiency. Before face milling, cutting speed, feed rate, cutting depth, and other parameters should be carefully adjusted and confirmed to match the workpiece material and design requirements, avoiding excessively high or low cutting parameters that may result in poor machining quality or tool damage.

Importance of Sharp Cutting Tools for Efficient Machining:

Maintaining the sharpness of cutting tools is crucial to ensuring efficient face milling. Regular inspection and timely replacement of severely worn tools, along with the use of high-quality tool materials and coatings, can prolong tool life and maintain cutting efficiency, thereby improving machining quality and efficiency.

Suggestions for Increasing Productivity and Accuracy in Face Milling Operations:

Using CNC machining centers for face milling operations can achieve automation and highly precise control of the machining process, improving machining efficiency and consistency. Training operators to improve their skills and experience in face milling operations, allowing them to master the operation techniques and precautions proficiently, can increase productivity and machining accuracy. Establishing scientific production plans and machining process flows, arranging machining sequences and parameters reasonably, can maximize production efficiency and product quality.

BOYI’s Tailored Milling Solutions

In the realm of precision milling, trust the expertise of BOYI. We specialize in the milling of both plastic and metal custom components. Whether you require rapid prototypes or low-volume production, our services have you fully covered. For those in need of on-demand CNC milling solutions, our in-house machine shop ensures the delivery of top-quality machined parts in as little as three days.

At BOYI, we seamlessly integrate speed with uncompromising quality. Every product undergoes rigorous 100% inspection, guaranteeing flawless results. Reach out to us today for a quote on your milling projects, and expect to receive an instant quote along with Design for Manufacturing (DFM) feedback within the next 12 business hours.


FAQs: Face Milling Tools and Techniques

Q: What is a face mill?

A: A face mill is a type of milling cutter used in CNC machining to remove material from the surface of a workpiece. It typically features multiple cutting edges and is designed to efficiently mill large areas of a workpiece’s surface.

Q: What is a face mill cutter?

A: A face mill cutter is a specific type of milling cutter used for face milling operations. It typically consists of a body with multiple cutting inserts arranged around its periphery, allowing for high-speed, high-volume material removal.

Q: What is the difference between face mill and end mill?

A: Face mills are designed for milling large flat surfaces, while end mills are typically used for milling slots, pockets, and contours. Face mills have multiple cutting edges and are capable of high material removal rates, whereas end mills have a single cutting edge and are more versatile for various milling operations.

Q: What is face milling?

A: Face milling is a machining process where a face mill cutter is used to remove material from the surface of a workpiece. It is commonly used for producing flat surfaces, contours, and grooves on workpieces made from a variety of materials.

Q: What is a face milling cutter?

A: A face milling cutter is a type of milling tool used in face milling operations. It typically consists of multiple cutting edges arranged on a cylindrical body, allowing for efficient material removal from the surface of a workpiece.

Q: What is a fly cutter vs face mill?

A: A fly cutter and a face mill are both milling tools used for facing operations, but they have different designs and applications. A fly cutter typically has a single cutting edge and is manually operated, while a face mill has multiple cutting edges and is typically used in CNC machining for high-volume material removal.

Q: What is a shell mill vs face mill?

A: A shell mill and a face mill are similar types of milling cutters used for face milling operations. The main difference lies in their design: a shell mill typically has fewer cutting edges and a larger diameter, while a face mill has more cutting edges and a smaller diameter, allowing for higher material removal rates.

Q: What is a side milling cutter?

A: A side milling cutter is a type of milling tool used for milling surfaces perpendicular to the cutter axis. It typically has teeth on the periphery and side of the cutter, allowing for efficient material removal from the side of a workpiece.

Q: What is slab milling?

A: Slab milling is a type of face milling operation where a large, flat surface (or “slab”) is machined using a face mill cutter. It is commonly used in CNC machining for producing flat surfaces on workpieces.
