Comprehensive Guide to Counterbore Machining Techniques

Counterbore apertures are widely utilized to accommodate fasteners and seals within precision-engineered components, particularly within contexts such as sealing mechanisms, mechanical assemblies, and automotive engineering. Distinguished by their non-tapered recessed configuration, counterbore apertures ensure that fastener heads are seamlessly aligned with the surface of the component.

This article aims to elucidate the concept of counterbore apertures, delineate the scenarios warranting their application, and expound upon the imperative considerations for accurately specifying counterbore apertures within design schematics to facilitate precise manufacturing processes.

What is a Counterbore?

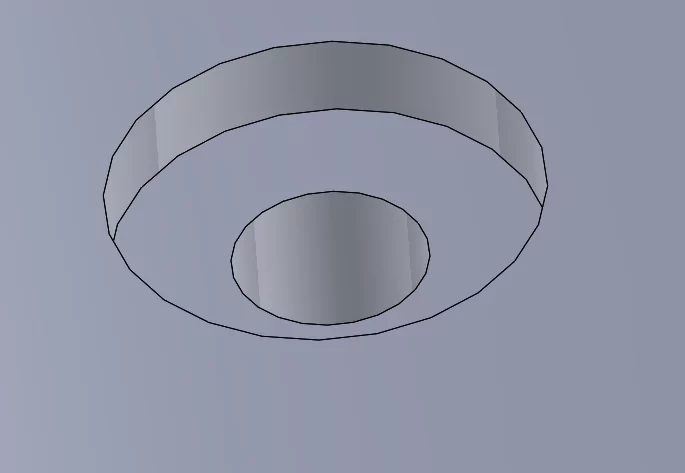

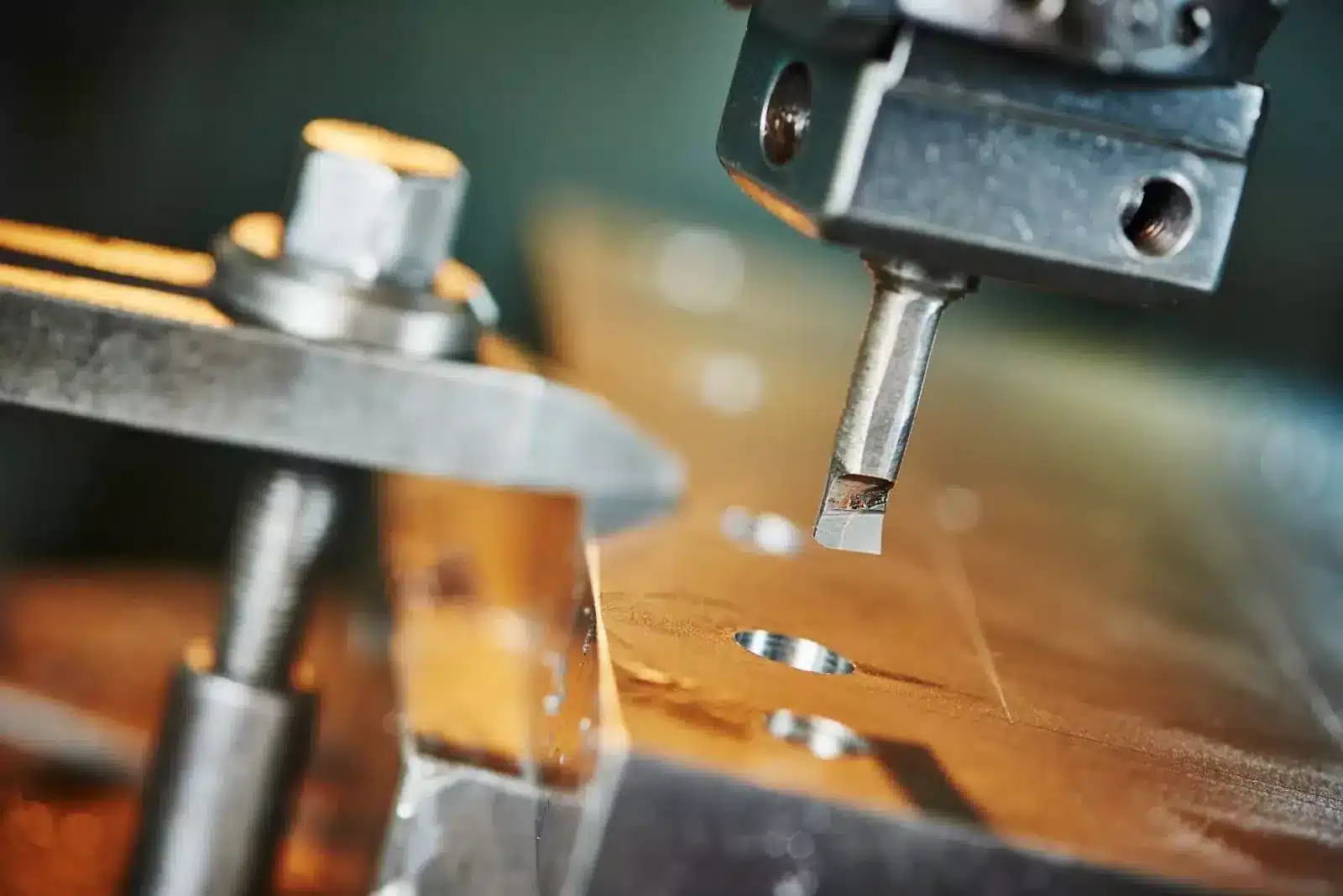

A counterbore can be defined as a precision-engineered cylindrical cavity featuring a flat bottom surface, strategically designed to be larger than and aligned with another cylindrical aperture beneath it. This specialized configuration facilitates the creation of a recessed and uniformly level interface for the seamless integration of mating components. Typically, counterbores are optimized for utilization with socket head cap screws, ensuring secure fastening and optimal mechanical performance.

Moreover, the term “counterbore” extends to encompass the tool specifically engineered to enlarge the diameter of a pre-existing aperture while simultaneously generating a flat bottom surface. This enhancement allows for the seamless accommodation of socket-head screws within the surface of a component. It is important to note that while a counterbore may share similarities with a spotface, the distinction lies in their respective depths. A spotface tends to offer a more shallow alteration, often serving as a flat mounting surface for precise positioning, whereas a counterbore provides a deeper recess, facilitating the accommodation of fastener heads.

Counterbore GD&T Symbol

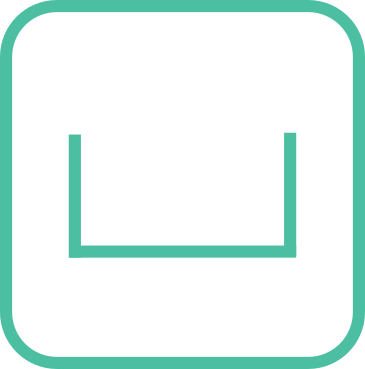

The distinctive flat-bottomed, cylindrical shape of a counterbore sets it apart from a countersink, characterized by its conical bottom profile.

Constituents of a Counterbore Cavity

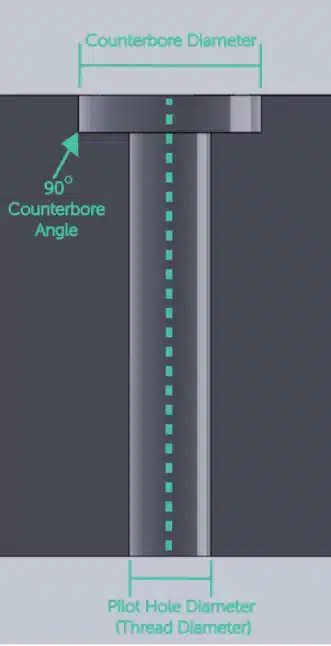

The diagram above illustrates the comprehensive specification of a counterbore hole, encompassing three pivotal dimensions:

  1. Counterbore Diameter: This dimension must exceed the diameter of the fastener head, seal, or gasket for optimal functionality.
  2. Counterbore Angle: Traditionally set at a standard 90 degrees for compatibility with various fasteners.
  3. Pilot Hole Diameter: Determined by the diameter of the fastener thread, ensuring precise alignment and fit.

In manufacturing operations, the process typically involves drilling the pilot hole using a suitable drill bit, followed by the creation of the counterbore using a counterbore cutter, provided it adheres to the specified tolerances. In CNC machining, a counterboring end mill tool is commonly employed. This tool is utilized initially to drill the countersink portion, followed by the pilot hole, ensuring accuracy and efficiency in the machining process.

Optimal Applications for Employing a Counterbore:

Counterbores serve the purpose of machining a cylindrical cavity within a component to facilitate:

  1. Accommodation of washers
  2. Integration of bolts
  3. Housing of gaskets
  4. Encasing of O-rings
  5. Enabling insertion of socket head cap screws or fillister head screws
  6. Utilization with specialty counterbore screws
  7. Implementation for cosmetic or safety considerations, especially when the protrusion of a fastener head poses a risk of entanglement or injury.

When determining whether to utilize a countersink or counterbore hole, it is essential to consider the morphology of the fastener head. Countersink holes are appropriate for accommodating conical or tapered head hardware, whereas counterbore holes are suitable when dealing with cylindrical heads or when incorporating a rigid washer or gasket.

A properly executed counterbore will result in the fastener head sitting flush with the surface of the component. This implies that the depth of the counterbore matches the height of the fastener head and any accompanying components like washers or gaskets. Counterbores offer advantages such as simplified installation (due to their self-locating nature), enhanced aesthetics, and improved safety, as protruding fastener heads are less likely to cause obstructions or hazards.

How to Specify a Counterbore

When specifying a counterbore, most Computer-Aided Design (CAD) software packages, such as SolidWorks, provide built-in tools for creating counterbores within your model. While these tools facilitate the creation of appropriately sized holes for your fasteners, it remains crucial to comprehend the fundamental principles and adhere to relevant standards such as those outlined by the American National Standards Institute (ANSI) or the International Organization for Standardization (ISO). This ensures that control drawings accurately convey the required specifications for manufacturing.

Pro-Tip: For further insights into effectively communicating design intent through manufacturing drawings, consider exploring additional resources, such as the referenced article.

Counterbores and their corresponding fasteners adhere to established industry standards, delineating precise specifications such as angle, diameter, and pilot diameter, as exemplified in the provided graphic.

To accurately define the counterbore required for your design, several factors must be considered initially:

  1. The applicable standard governing the design.
  2. The size of the fastener intended for the counterbore hole.
  3. The height of the fastener head.
  4. The necessary dimensions of the counterbore hole (comprising the diameter of the fastener head plus the desired clearance).

It’s noteworthy that, in contrast to countersinks, the target angle of the wall of the larger diameter in a counterbore hole consistently measures 90 degrees. While computer-aided design (CAD) tools can accommodate this divergence seamlessly, adherence to specifications is paramount, as they can undergo alterations impacting the final product. Thus, accurately specifying the counterbore hole using expected drawing elements is essential to preempt potential issues.

Proper delineation of a counterbore on an engineering drawing encompasses four key components:

  1. Diameter of the counterbore.
  2. Depth of the counterbore.
  3. Diameter of the smaller pilot hole beneath the counterbore.
  4. Depth of the smaller diameter below the counterbore.

Although some sources may overlook the depth of the smaller diameter hole (the pilot hole), it remains a crucial specification always accompanying the counterbore dimensions. The symbol denoting a counterbore is ⌴, with an illustrative call-out from a drawing featuring a counterbore for a binding head machine screw provided as follows: [example call-out].

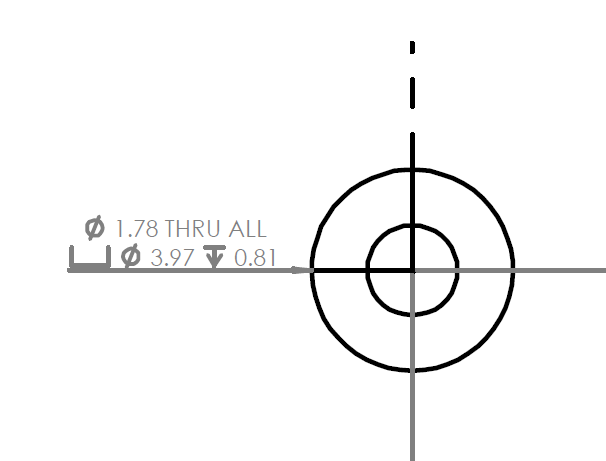

The diagram depicts a 1.78-inch diameter through-hole situated beneath a 3.97-inch diameter counterbore, extending to a depth of 0.81 inches.

Guidelines for Determining Counterbore Dimensions

Determining the appropriate dimensions for a counterbore involves straightforward calculations when the size of the fastener is specified. Firstly, accommodate tolerance for the diameter — or maximum dimension for polygonal fasteners — to ensure a proper fit within the counterbore. Subsequently, allocate additional space in the counterbore depth to accommodate the height of the fastener head and any accompanying washers.

Moreover, comprehensive tables are available containing data on counterbore hole sizing, including pilot hole dimensions and depths, such as:

  • Counterbore Sizing for Socket Cap Head Fasteners (ANSI Inch)
  • Counterbore Hole Size Chart for Socket Cap Head Fasteners (ISO 4762)
  • Counterbore Hole Size Chart for Socket Cap Head Fasteners (DIN 912)
  • Counterbore Hole Size Chart for Socket Cap Head Fasteners (JIS)
  • Counterbore Hole Size Chart for Socket Cap Head Fasteners (GB)
  • Counterbore Hole Size Chart for Socket Cap Head Fasteners (ANSI Metric)
  • Counterbore Hole Size Chart for Low Socket Cap Head Fasteners (DIN 7984)

BOYI – Precision Components with Unmatched Efficiency

Seeking a thorough review of your designs prior to production is a prudent step, particularly with the insight of a BOYI application specialist. This ensures meticulous detailing, such as the specification of counterbore holes, within your designs.

Leveraging a meticulously outlined blueprint alongside our extensive network of proficient manufacturing partners—comprising specialists in injection molding, CNC machining, 3D printing, and urethane casting—you can consistently procure top-tier components to meet your exacting standards.

Register an account and submit your design today to experience the prowess of BOYI’s streamlined quoting process, comprehensive design feedback for manufacturability, and innovative platform capabilities.


1. Counterbore Callout

Q: What is a counterbore callout? A: A counterbore callout refers to the specification of a counterbore hole on an engineering drawing. It encompasses four essential components: the diameter and depth of the counterbore, as well as the diameter and depth of the smaller pilot hole beneath it. Properly calling out these dimensions is critical for manufacturing precision.

2. Counterbore Dimension

Q: How are counterbore dimensions determined? A: Counterbore dimensions are determined based on several factors including the size of the fastener intended for the counterbore hole, the height of the fastener head, and the desired clearance. These dimensions dictate the diameter and depth of the counterbore as well as the dimensions of the smaller pilot hole.

3. Counterbore Bit

Q: What is a counterbore bit? A: A counterbore bit is a specialized cutting tool designed to create counterbore holes. It features a cylindrical shank with a flat cutting end used to bore out the wider portion of the hole, while the pilot tip assists in guiding the bit accurately. Counterbore bits are essential for precision machining operations.

4. Dimension Counterbore

Q: How do you dimension a counterbore? A: Dimensioning a counterbore involves specifying its diameter and depth, along with the dimensions of the smaller pilot hole beneath it. These dimensions are crucial for ensuring proper fit and alignment of fasteners within the counterbore hole, as per industry standards.

5. Dimension Counterbore

Q: What are the key considerations for dimensioning a counterbore? A: When dimensioning a counterbore, it’s important to consider factors such as the size of the fastener, the height of its head, and the desired clearance. Additionally, adherence to relevant industry standards ensures accurate and consistent dimensioning practices for optimal performance.

6. C Bore

Q: What is a “C bore”? A: “C bore” typically refers to a counterbore, a cylindrical recess typically used to accommodate the head of a fastener such as a bolt or screw. It’s called a “C bore” due to its resemblance to the letter “C” when viewed from the side. This feature is crucial in ensuring proper seating and alignment of fasteners in various mechanical assemblies.
