Our Comprehensive Manual on Hard Anodizing Techniques

Anodizing represents a sophisticated electrochemical technique utilized to deposit a protective oxide layer onto metallic surfaces, primarily for corrosion mitigation purposes. This process enables the application of diverse colorations to anodized coatings. Distinguished by its enhanced attributes, hard anodizing, also recognized as “Type III anodizing” according to MIL-A-8625 specifications or termed as “hard coat anodizing,” engenders a substantially thicker, more resilient, and abrasion-resistant aluminum oxide layer compared to conventional anodizing methods. This meticulous CNC finishing procedure is predominantly employed on aluminum and titanium alloys, particularly in alkaline anodizing, to augment their resistance against corrosion, fortify hardness, and bolster overall durability. For a comprehensive understanding of the anodizing process at a microscopic scale, a detailed exploration of “Aluminum Anodizing: All You Need to Know” is recommended. Additionally, our instructional YouTube video elucidating the intricacies of the CNC Anodizing Process can provide further insights.

A notable advantage of hard anodizing lies in its capacity to facilitate the integration of dye within the anodizing procedure, thus enabling the attainment of diverse surface colors on the metal. Continue perusing for insights and strategies pertaining to the nuanced art of hard anodizing coloration.

Hard Anodizing Coloration – Comprehensive Overview

The color spectrum achieved via hard anodizing is contingent upon various factors, encompassing the metal substrate, anodizing process parameters, and dye selection. Common hues attainable through hard anodizing encompass black, red, blue, green, and gold.

Beyond the aesthetic augmentation facilitated by hard anodizing colors, the process confers enhanced safeguarding to the metallic surface. Dye infusion into the oxide layer’s pores engenders a denser, more resilient, and less permeable coating, mitigating susceptibility to abrasion and corrosion.

The utility of hard anodizing colors extends across diverse applications, offering manifold advantages:

  1. Aesthetic Enhancement: Hard anodizing colors are a favored option for products wherein visual appeal holds significance. The versatility in coloration and finish augments product distinctiveness, bolstering branding initiatives and market positioning.
  2. Augmented Durability: Hard anodizing colors furnish an additional stratum of defense, fortifying the metallic surface against degradation from wear and corrosive agents. This attribute proves especially invaluable in hostile environments where exposure to corrosive elements is inevitable.
  3. Enhanced Hardness: Hard anodizing concurrently amplifies the surface hardness of the metal, fortifying it against scratches and other forms of mechanical damage.
  4. Electrical Insulation: Hard anodizing engenders an insulating layer atop the metal surface, particularly advantageous in electrical and electronic applications to avert short circuits and electrical malfunctions.
  5. Friction Mitigation: Hard anodizing diminishes friction on the metal surface, rendering it apt for applications necessitating minimal frictional resistance.

Hard Anodizing Colors – Prevalent Applications

Utilization of hard anodizing colors is widespread across various industries, notably in the following sectors:

  1. Aerospace: Employed extensively in the fabrication of aircraft parts and components.
  2. Automotive: Integral in enhancing the durability and aesthetics of engine parts and wheels.
  3. Consumer Goods: Frequently applied in the production of high-performance sporting equipment and exquisite jewelry pieces.
  4. Medical: Critical for ensuring the resilience and biocompatibility of surgical instruments and implants.

The utilization of hard anodizing colors offers a myriad of advantages and finds versatile applications. The resultant hues and surface finishes are contingent upon multiple factors, including the base metal, anodizing methodology employed, and the choice of dyes or pigments utilized in the process.

Expert Advice on Hard Anodizing Coloration

Mastering the intricacies of hard anodizing necessitates a profound understanding of the chemical processes involved. Delving into specifying hard anodizing for your components requires meticulous attention to detail. Furthermore, comprehending the intricacies of the process itself and executing it with precision elevate the complexity further. However, rest assured, Fictiv stands ready to provide comprehensive guidance.

Key Recommendations for Achieving Desired Hard Anodizing Colors:

Processing Insights: The anodizing procedure renders the surface non-conductive, with the resultant oxide layer exhibiting highly insulating properties. Consequently, the integration of dyes becomes imperative to impart coloration. These dyes may vary in their conductive properties. Hard anodizing entails immersing the metal in an electrolytic solution while applying an electric current. This induces the formation of an oxide layer, subsequently imbued with dye or pigment to realize the desired hue. Furthermore, hard anodizing can be synergistically combined with additional techniques, such as laser etching or silk-screen printing, to introduce intricate designs or labels onto the anodized surface.

Factors Influencing Coloration: The coloration of the anodized coating is subject to several processing parameters:

  • Metal Variability: Distinct metals, including various aluminum alloys, may yield divergent hues post-anodization.
  • Anodizing Process Parameters: The color spectrum of the anodized coating is contingent upon factors like the electrolyte solution composition, applied voltage, duration of anodization, and solution temperature.
  • Dyeing Mechanism: Anodized coatings undergo dye absorption within the porous oxide layer during the dyeing process, facilitating a spectrum of color possibilities.
  • Surface Texture: The surface finish of the metal plays a pivotal role in determining the final appearance of the anodized coating, with polished surfaces yielding a more radiant, reflective finish compared to matte surfaces.
  • Coating Thickness: The depth of the anodized layer directly impacts color intensity, with thicker coatings often resulting in darker or more vibrant hues.
  • Lighting Dynamics: Variations in lighting conditions, encompassing natural versus artificial illumination, can induce perceptible differences in the appearance of the anodized coating.
  • Environmental Influences: The long-term color retention and durability of the anodized coating are subject to environmental elements such as sunlight exposure, temperature fluctuations, and humidity levels.

Color Properties and Considerations in Hard Anodizing:

  1. Coating Thickness Impact: The depth and intensity of colors in hard anodizing are directly influenced by coating thickness. Typically, thicker coatings result in darker hues.
  2. Control over Color Depth: Precise control over the thickness of the anodized layer allows for tailored levels of hardness and corrosion resistance, crucial for applications prioritizing durability.
  3. Range of Colors: Hard anodizing offers a spectrum of colors, including but not limited to black, gold, blue, red, and green.
  4. Variability in Color: The specific shade of anodized color can vary due to factors such as alloy composition and process parameters like current density, temperature, and duration.
  5. Longevity and Environmental Impact: Colors may fade or alter over time, particularly when subjected to UV radiation or harsh environments.
  6. Consistency Challenges: Achieving precise color matching between batches is challenging due to inherent variations in hard anodizing processes.
  7. Durability and Integration: Anodized colors are durable and long-lasting, integrated into the metal structure itself, providing superior resistance against wear, scratches, and fading compared to surface coatings or paints.
  8. Customization Potential: Colors and finishes can be tailored to meet specific application requirements, offering flexibility in achieving desired aesthetic effects.
  9. Electrical Properties Enhancement: Hard anodizing can also improve electrical conductivity or insulation, a valuable feature in electrical and electronic applications.
  10. Overall Benefits: Hard anodizing colors offer a combination of enhanced durability, corrosion resistance, and aesthetic appeal, making them a preferred solution across various industrial applications.

What are the Standard Colors for Hard Anodizing?

In industrial contexts, a range of standard anodizing colors are commonly employed, albeit with variations in shade influenced by the alloy being anodized and process parameters. These colors include:

  1. Clear or Natural Anodizing: A transparent, colorless finish that offers robust corrosion resistance and safeguards the base metal from further oxidation.
  2. Black Anodizing: This entails a deep, matte black finish achieved through the introduction of black dye. It finds application in both decorative purposes and minimizing glare on aluminum surfaces.
  3. Gold Anodizing: Exhibiting a light to medium gold hue, gold anodizing involves the use of yellow dye. It serves decorative purposes and enhances the aesthetic appeal of anodized aluminum surfaces.
  4. Red Anodizing: Delivering a vibrant, deep red shade through the application of red dye, this method is often employed for decorative objectives and enhancing the visibility of aluminum components.
  5. Blue Anodizing: Utilizing blue dye to achieve a spectrum ranging from medium to dark blue, this process is favored for decorative enhancements and enhancing the appearance of anodized aluminum surfaces.
  6. Green Anodizing: This technique yields a light to medium green tint through the application of green dye, serving decorative purposes and enhancing the visual appeal of aluminum surfaces.

It’s crucial to note that the visual characteristics of these standard anodizing colors may vary based on factors such as dye specificity and the thickness of the anodized layer. Furthermore, custom colors like purple, pink, and bronze can be realized through tailored anodizing processes.

What Factors Affect the Longevity of Anodized Colors?

The endurance of anodized colors hinges on several critical elements, including the thickness of the anodized layer, the composition of the alloy undergoing anodization, and the environmental factors impacting the treated component. When properly maintained, anodized colors can persist for numerous years, even extending into decades.

Anodized surfaces boast remarkable resistance to both corrosion and abrasion, with the anodized layer acting as a formidable shield against further oxidation. By integrating the color within the anodized layer itself rather than employing a superficial coating, the susceptibility to chipping, flaking, or peeling is significantly diminished.

Nonetheless, it is crucial to acknowledge the susceptibility of anodized colors to certain environmental stressors such as UV radiation, elevated temperatures, and specific chemicals. For instance, prolonged exposure to sunlight in outdoor settings may result in gradual fading or alteration of the color. Moreover, abrasive chemicals have the potential to compromise the integrity of the anodized layer, leading to the deterioration of the color.

To optimize the longevity of anodized colors, prudent precautions must be taken to shield treated components from these harsh conditions. Regular cleansing with a gentle detergent and a soft cloth is advisable to maintain their appearance. Additionally, seeking guidance from seasoned professionals in anodizing services, such as Fictiv, can prove invaluable in selecting the most suitable anodizing techniques and color schemes tailored to the specific demands of your application.

How to Perform Hard Anodizing with Coloration?

The procedural steps for achieving colored hard anodization align closely with those of standard hard anodizing. Here’s a methodical breakdown:

  1. Surface Preparation: The aluminum component slated for anodization undergoes meticulous cleaning to eradicate any impurities such as dirt or grease that might impede the anodizing process. This preparatory phase typically entails a dual approach involving mechanical cleaning techniques like sandblasting or polishing, complemented by chemical treatments such as immersion in alkaline or acid baths.
  2. Anodizing: Subsequent to thorough cleaning, the component is immersed in an electrolytic bath containing an acid solution, often sulfuric acid. An electric current is then introduced into the solution, instigating a meticulously controlled oxidation reaction on the surface of the aluminum. This yields a robust anodized layer endowed with the desired coloration and enhanced resistance to corrosion.
  3. Dye Infusion: Following the formation of the anodized layer, the component is rinsed and submerged in a dye solution bath. Here, the dye penetrates the porous structure of the anodized layer, imbuing it with the desired hue.
  4. Sealing: Post-dyeing, the component undergoes another round of rinsing before being immersed in a sealing solution, typically comprising organic polymers or nickel acetate. This sealing process serves to occlude the pores within the anodized layer, thereby augmenting its resistance to corrosion and fortifying its overall durability. Moreover, sealing can contribute to the preservation of color vibrancy in the anodized layer.
  5. Quality Assurance: Upon the culmination of the anodizing process, meticulous quality assessments are conducted to ensure compliance with predetermined specifications. This entails scrutinizing parameters such as the thickness of the anodized layer, the fidelity of coloration, and overall aesthetic appearance, among others. Such rigorous quality control measures are imperative for upholding the integrity and performance of the finished component.

Tips for Masking and Plugging Parts Before Hard Anodizing

For components featuring threads, intricate designs with complex assemblies, or holes, employing masking and plugging techniques is essential to prevent undesirable anodization buildup, particularly when stringent tolerances are required. These methods are crucial not only for preserving functional features but also for achieving desired aesthetic outcomes, such as distinct color variations, or for safeguarding and enhancing specific physical or electrical properties, such as targeted electrical conductivity.

Masking and plugging can also offer cost-saving benefits in the anodizing process by enabling selective treatment of parts, sparing unnecessary anodization across the entirety of the component.

How to Convey Masking Requirements

While there’s no universally prescribed method for communicating masking and plugging requirements, customary approaches typically involve:

  • Inclusion of callouts on 2D drawings specifying the type of finishing required, accompanied by notes or flagged annotations indicating surfaces slated for finishing or masking.
  • Incorporation of masking and plugging legends within drawings, typically presented as tables detailing the masking or plugging requisites for individual parts within an assembly.
  • Utilization of highlighted or color-coded drawings, where masking areas are distinguished by one color and non-masked regions by another.
  • Provision of complex masking drawings alongside part drawings, delineating the dimensions of masked areas and often supplemented with masking instructions or notes.

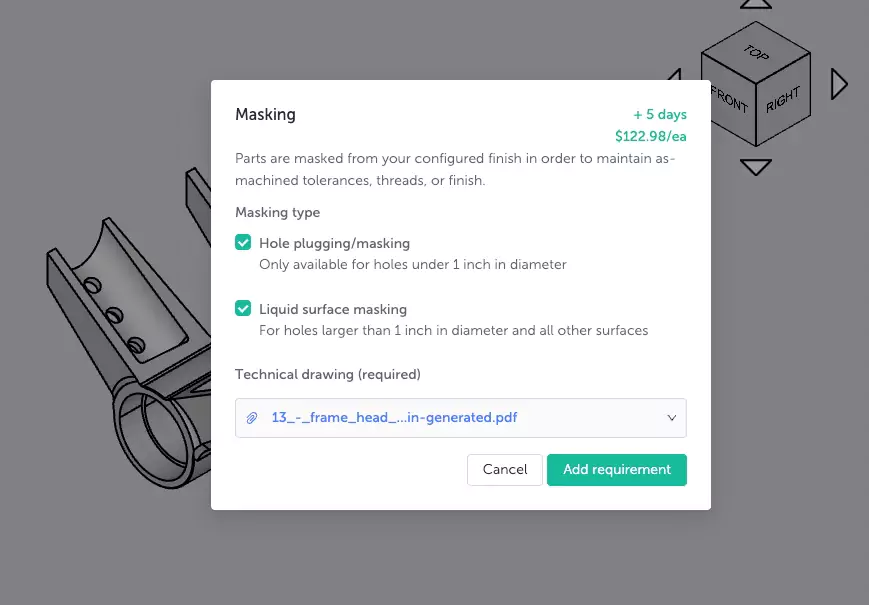

BOYI offers streamlined solutions for specifying masking requirements, enabling customers to effortlessly request and outline masking details directly through our advanced digital manufacturing platform. This innovative approach significantly enhances efficiency and productivity compared to traditional methods of specifying masking or plugging.

You can specify holes and surfaces that require masking before anodization, paint, and other finish coatings. For detailed guidance on how to specify masking within the BOYI platform, we recommend consulting this informative resource.

Pro-Tip: Delve deeper into masking techniques and BOYI’s comprehensive finishing capabilities by referring to our comprehensive Ultimate Guide to Finishing CNC Machined Parts.

Hard anodizing constitutes a surface treatment process that imparts excellent corrosion and wear resistance to aluminum surfaces. Additionally, anodizing presents a spectrum of color options, including black, gold, blue, red, and green. It’s worth noting that anodized color may undergo alterations due to exposure to UV light, elevated temperatures, and certain chemicals.

To uphold the vibrancy and longevity of the anodized color, it’s imperative to engage with a seasoned anodizing provider who can offer expert guidance on optimal process parameters and dye selections tailored to your specific application. Routine cleaning and maintenance practices can further extend the lifespan of anodized color.

In essence, hard anodizing colors furnish a robust and visually appealing finish ideal for a myriad of industrial applications.

BOYI – Streamlining Manufacturing Sourcing

BOYI serves as your premier platform for customized manufacturing, simplifying part procurement processes by making them faster, more accessible, and highly efficient. Essentially, BOYI empowers engineers, like yourself, to focus on engineering tasks rather than expending time and resources on sourcing, vetting, onboarding, and managing suppliers.

Through BOYI, numerous companies have optimized their workflows for custom part sourcing, thereby unlocking newfound potential for product innovation and revolutionizing the design, development, and delivery of the next generation of products. Sign up for an account and upload your part to experience firsthand the benefits of our instant quote system, design for manufacturability feedback, and intelligent platform functionalities.


1. Anodized Red

Q: What is anodized red? A: Anodized red refers to the process of imparting a red color to aluminum surfaces through anodization. This surface treatment enhances the durability, corrosion resistance, and wear resistance of the aluminum while providing an attractive red finish.

Q: How is anodized red achieved? A: Anodized red is achieved through the anodization process, which involves immersing the aluminum part in an electrolyte solution and passing an electric current through it. This creates an oxide layer on the surface of the aluminum, which can then be dyed red to achieve the desired color.

Q: What are the benefits of anodized red aluminum? A: Anodized red aluminum offers excellent corrosion resistance, wear resistance, and an attractive red finish. It is ideal for applications where both aesthetics and durability are important, such as automotive parts, consumer electronics, and architectural elements.

2. Anodized Blue

Q: What is anodized blue? A: Anodized blue refers to the process of achieving a blue color on aluminum surfaces through anodization. This surface treatment enhances the aluminum’s corrosion resistance, wear resistance, and aesthetics.

Q: How is anodized blue achieved? A: Anodized blue is achieved through the anodization process, wherein the aluminum part is immersed in an electrolyte solution and subjected to an electric current. This forms an oxide layer on the surface, which can then be dyed blue to achieve the desired color.

Q: What are the advantages of anodized blue aluminum? A: Anodized blue aluminum offers excellent corrosion resistance, wear resistance, and a visually appealing blue finish. It finds applications in industries such as aerospace, marine, and sporting goods where both performance and aesthetics are crucial.

3. Aluminium Anodizing Colours

Q: What are aluminium anodizing colors? A: Aluminium anodizing colors refer to the variety of colors that can be achieved through the anodization process on aluminum surfaces. These colors include red, blue, black, gold, green, and more, offering versatility in design options.

Q: How are aluminium anodizing colors determined? A: Aluminium anodizing colors are determined by various factors such as the type of dye used, the anodizing process parameters, and the composition of the aluminum alloy. Different combinations of these factors result in different colors and finishes.

Q: Can custom colors be achieved through aluminium anodizing? A: Yes, custom colors can be achieved through aluminium anodizing by using specific dye formulations and adjusting process parameters. This allows for tailor-made solutions to meet the unique aesthetic requirements of different applications.

4. Red Anodized Aluminum

Q: What is red anodized aluminum? A: Red anodized aluminum refers to aluminum surfaces that have undergone the anodization process and been dyed red to achieve a vibrant red color. This treatment enhances the aluminum’s durability, corrosion resistance, and visual appeal.

Q: Where is red anodized aluminum used? A: Red anodized aluminum finds applications in various industries such as automotive, aerospace, electronics, and architectural design. It is used for decorative purposes as well as functional components where both aesthetics and performance are important.

Q: How durable is red anodized aluminum? A: Red anodized aluminum is highly durable, offering excellent resistance to corrosion, wear, and fading. The anodized layer provides a protective barrier that prolongs the lifespan of the aluminum while maintaining its vibrant red color.

5. Blue Anodized Aluminum

Q: What is blue anodized aluminum? A: Blue anodized aluminum refers to aluminum surfaces that have undergone the anodization process and been dyed blue to achieve a distinctive blue color. This treatment enhances the aluminum’s corrosion resistance, wear resistance, and aesthetic appeal.

Q: What are the applications of blue anodized aluminum? A: Blue anodized aluminum is used in various industries such as automotive, marine, electronics, and sporting goods. It is employed for decorative purposes as well as functional components where both durability and visual appeal are essential.

Q: Is blue anodized aluminum suitable for outdoor use? A: Yes, blue anodized aluminum is suitable for outdoor use due to its excellent corrosion resistance and UV stability. The anodized layer provides protection against environmental factors, ensuring long-lasting performance and color retention.

6. Anodize Chart

Q: What is an anodize chart? A: An anodize chart is a reference tool that displays different anodizing colors and finishes along with corresponding process parameters such as dye formulations, voltage settings, and anodizing times. It helps in selecting the desired color and achieving consistent results in the anodization process.

Q: How is an anodize chart useful? A: An anodize chart is useful for designers, engineers, and manufacturers involved in the anodization process as it provides guidance on color selection, process optimization, and quality control. It ensures that the desired color and finish are achieved consistently across different batches of parts.

Q: Where can I find an anodize chart? A: Anodize charts are typically provided by anodizing service providers, material suppliers, and industry organizations. They may also be available in technical literature, online resources, and professional forums dedicated to surface treatment processes.
