Unveiling Pad Printing: Pro Techniques & Benefits Revealed

Pad printing is a sophisticated technique utilized for imprinting 2-dimensional graphics onto diverse surfaces and geometries, ranging from spherical objects like golf balls to irregular shapes such as toys, medical syringes, and remote controls. Esteemed for its cost-efficiency, versatile color selection, and impeccable printing output, this method holds paramount significance across various industries.

The evolution of pad printing from rudimentary applications to intricate processes has substantially enhanced its efficiency and productivity. This discourse aims to elucidate the operational mechanics, merits, demerits, and prevalent applications of pad printing, offering an in-depth comprehension of its operational intricacies.

The Evolution of Pad Printing: A Professional Perspective

The historical trajectory of pad printing unveils a compelling narrative of advancement and refinement within the printing industry. Originally employed for decorating delicate objects like blue china plates and crockery, the technique has undergone a transformative journey, culminating in its ubiquitous presence across diverse printing applications today.

At its inception, pad printing relied on manual techniques, but over time, it transitioned into a highly automated process. This shift towards automation has been pivotal, catalyzing exponential improvements in both efficiency and productivity across various industrial sectors.

One of the most notable advancements lies in the refinement of pad materials. The transition from soft gelatin to silicone pads represents a watershed moment, characterized by enhanced adhesion properties and superior chemical resistance against a wide array of substrates.

Furthermore, significant strides have been made in the realm of printing plates. Once predominantly crafted from copper, modern printing plates now boast a diverse range of materials, including hardened steel and plastic. These plates undergo sophisticated manufacturing processes, such as photochemical or laser engraving, ensuring unparalleled precision and reproducibility in image transfer.

How Does Pad Printing Function?

Comprehending the operational mechanics of pad printing entails familiarity with its constituent elements. Hence, this segment will elucidate the key components of pad printing, followed by an exposition on its operational process.

Unveiling Pad Printing: Pro Techniques & Benefits Revealed插图

Key Elements of Pad Printing Equipment

Pad printing machines are characterized by diverse designs, configurations, and printing methodologies. Yet, they universally incorporate essential components. Presented below are pivotal elements intrinsic to all pad printing systems.

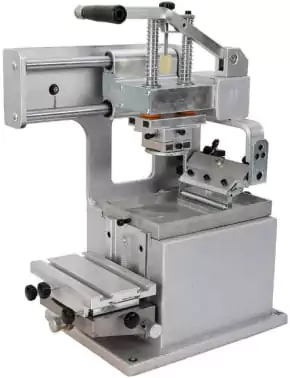

Pad Printing Equipment

Unveiling Pad Printing: Pro Techniques & Benefits Revealed插图1

Within the realm of pad printing machinery, three distinct types stand out: open inkwell, closed ink-cup, and rotary gravure. Each variant boasts unique configurations and employs different methodologies to achieve printing outcomes. The open inkwell system, renowned for its versatility, employs a spatula and doctor blade mechanism for ink distribution and regulation. In contrast, the closed ink-cup method represents a universal approach, housing ink within an inverted cup structure. Lastly, rotary gravure technology, akin to the open inkwell model, excels in achieving 360-degree printing coverage around objects.

Pad Printing Plate

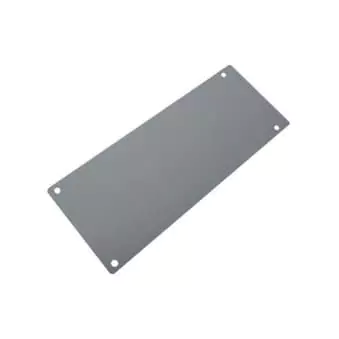

The pad printing plate serves as the substrate for transferring the desired image onto the target object. Typically fabricated from either plastic or thin metal, these plates are coated with photosensitive polymers, making them suitable for small to medium-scale production runs due to their versatility, cost-effectiveness, and ease of use. Alternatively, steel plates are employed for their exceptional durability and resilience, making them better suited for high-volume production operations.

Unveiling Pad Printing: Pro Techniques & Benefits Revealed插图2

The process of engraving the image onto the printing plate entails two distinct stages

Photopolymer Plate-making

Utilizing photopolymer plate-making entails subjecting the plate to multiple exposures of UV light until the etching process reaches completion. While this method proves highly cost-effective, it does necessitate a longer duration (approximately 30 minutes per plate) due to the extended curing process compared to laser engraving.

Computer-to-plate Laser Plate-making

This method involves the precision etching of a plate using a computer-controlled laser marking machine. The resultant images boast unparalleled quality owing to their exceptional precision and accuracy. Moreover, this process ensures comprehensive traceability, as images can be produced with consistent properties such as depth, pattern, and overall quality. Additionally, laser plate-making offers expedited production times, enabling the creation of images within a mere 5-7 minutes.

Pad Print Ink

Unveiling Pad Printing: Pro Techniques & Benefits Revealed插图3

Pad print ink is a critical component within the printing apparatus, formulated with resins, pigments, and thinners. The resin/binder imparts mechanical attributes to the ink, such as adhesion, abrasion, and scratch resistance, while the pigment offers a spectrum of colors, and the thinner adjusts viscosity.

Various ink series are accessible, each tailored to specific applications and industries. Key considerations for selection encompass coverage capability, adhesion characteristics, chemical resistance, wear durability, surface finish (glossy or matte), and lightfastness. Optimal ink choice necessitates meticulous examination of the accompanying datasheet, delineating these fundamental properties.

Printing Ink Reservoir Assembly

Unveiling Pad Printing: Pro Techniques & Benefits Revealed插图4

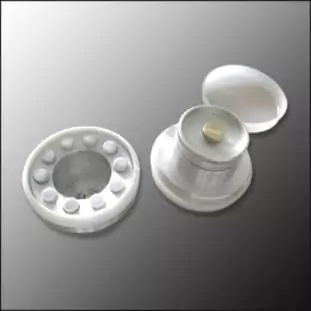

This integral component serves as a reservoir for ink in pad printing operations, facilitating precise ink application onto the printing plate. Comprising two key elements – the ink cup and the doctoring ring – its design ensures efficient ink transfer. The cup securely holds the ink, while the ring facilitates controlled ink distribution onto the printing plate’s surface. Materials commonly utilized for the ring include ceramic, metal, or plastic, with ceramic being preferred due to its scratch-resistant properties, ensuring smooth and consistent printing despite the printer’s continuous motion.

Printing Pad

Unveiling Pad Printing: Pro Techniques & Benefits Revealed插图5

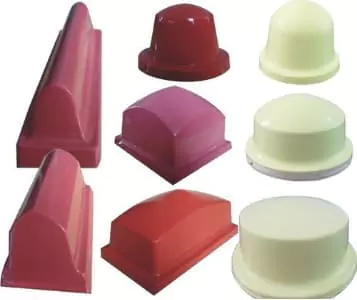

This essential component facilitates the transfer of ink from the printing plate onto the target surface. Employing a compressive mechanism, it effectively retrieves the image from the ink-saturated plate, navigates to the designated object, undergoes compression once more, and meticulously applies the image onto the surface.

Crafted from silicone, printing pads are meticulously engineered to exhibit a spectrum of mechanical characteristics tailored to specific applications, including varying degrees of hardness, diverse shapes, and customizable sizes.

Pad Printing Process

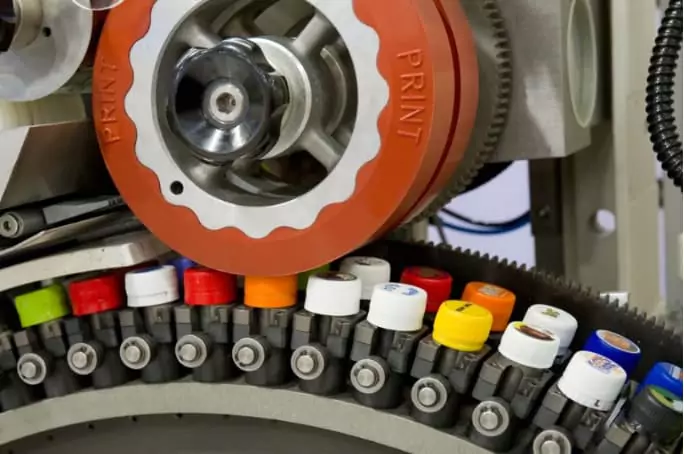

Following the meticulous etching of the plate using advanced techniques such as laser technology or photoengraving, the pad printing process unfolds with precision. The methodology, particularly when employing a closed ink cup printer, is orchestrated through a series of systematic steps:

  1. Initialization Phase: The printing ink cup assumes its designated position directly above the meticulously etched printing plate, meticulously covering the etched design. Subsequently, it initiates an aperture, allowing for the infusion of ink into the etched recesses of the plate.
  2. Controlled Exposure and Ink Management: Upon completion of the ink infusion process, the ink cup systematically seals itself, subsequently disengaging from the etched plate. This controlled disengagement facilitates the removal of surplus ink, rendering the printing plate primed for the subsequent printing cycle. During this phase, the ink’s surface undergoes controlled exposure to air, fostering the development of a tacky surface layer conducive to enhanced adhesion to both the pad and the target substrate.
  3. Imprinting Phase: The pivotal imprinting phase is initiated as the specialized pad, meticulously calibrated for optimal performance, engages with the ink-laden plate. Through a calculated compression action, the pad effectively captures the intricacies of the etched design, subsequently transferring it onto the designated object with unparalleled precision. A residual amount of ink is deliberately retained on the printing plate to ensure consistency and quality throughout the printing process.
  4. Iterative Continuation: With each successful imprint, the pad seamlessly transitions to the subsequent print cycle, while the ink cup resumes its original position over the printing plate. Here, it meticulously replenishes the plate with ink, ensuring the continuous operability and efficiency of the pad printing process.

Here are some refined suggestions for achieving success in pad printing

  1. Optimal Pad Selection: The key to successful pad printing lies in meticulous pad selection. Various factors such as shape, size, and mechanical attributes play pivotal roles in ensuring flawless prints. Consider the following guidelines when choosing pads:
    • Hard pads are ideal for intricate contours and fine lines, particularly on hard and irregular surfaces.
    • Steep pads with efficient air-trapping mechanisms facilitate seamless ink pickup and transfer.
    • Larger pads minimize deformation, thereby reducing print distortion.
  2. Precision Ink Mixing: In cases where the desired color isn’t readily available, expert ink mixing becomes indispensable. Leveraging proficient pad printing services such as those offered by RapidDirect ensures access to cutting-edge technology and adept professionals capable of accurately matching target colors.
  3. Optimal Pad Pressure: Vigilance against excessive pad pressure during printing is imperative to prevent issues like pad splitting due to over-compression. Attaining the desired results involves fine-tuning the downstroke mechanism and allowing ink to flow naturally. Regular machine inspections are essential to identify and rectify mechanical irregularities contributing to excessive pressure.
  4. Investment in High-Quality Equipment: Success in pad printing is heavily reliant on the utilization of top-tier equipment. While all three types of pad printers are viable options, closed ink-cup printers are widely favored for their reliability. Additionally, prioritizing automation not only enhances productivity but also minimizes error probabilities, thus ensuring consistent print quality.

Advantages of Pad Printing

Pad printing serves as a pivotal technique across various industries, owing to its array of benefits. Here are several compelling reasons to opt for this method:

Versatility Across Surfaces: Pad printing boasts unparalleled versatility, effortlessly accommodating printing on surfaces of varied shapes, sizes, and textures, irrespective of their complexity.

Material Compatibility: This method seamlessly adapts to diverse materials, including metals, plastics, glass, and even edible substances like confectionery items, ensuring a wide-ranging applicability.

Cost-Efficiency: Pad printing stands out for its cost-effectiveness and user-friendly operation, making it a pragmatic choice for businesses seeking economical solutions for personalized, traceable, and identifiable printing needs.

Consistent High-Quality Results: With pad printing, achieving pristine and sharp prints on any surface is a given, regardless of the object’s contours or material composition. This makes it indispensable for intricate printing tasks, such as marking tiny electronic components.

Versatile Color Options: Pad printing offers a rich spectrum of colors to cater to diverse aesthetic preferences of businesses. Additionally, the method allows for color mixing, facilitated by cutting-edge technology and specialized tools, ensuring precise color matching when standard hues aren’t sufficient.

Limitations of Pad Printing

Despite its impressive capabilities, pad printing also presents several challenges. The following are notable drawbacks of this printing method:

  1. Limited Speed: Pad printing operates at a slower pace compared to alternative techniques like hot stamping. Consequently, it may not be the most time-efficient or productive option for high-volume production.
  2. Restricted Printing Area: While pad printing excels at detailing small images on larger surfaces, it does have inherent limitations in terms of the size of the printing area that can be effectively utilized.
  3. Potential Color Challenges: Large blocks of colors can pose challenges in maintaining tonal consistency during the pad printing process. This can result in quality issues, increased production costs, and wastage of raw materials.

Utilizations of Pad Printed Components

Pad printing serves as a versatile solution across various industries for functions such as identification and traceability. Presented below are several professional applications of these components:

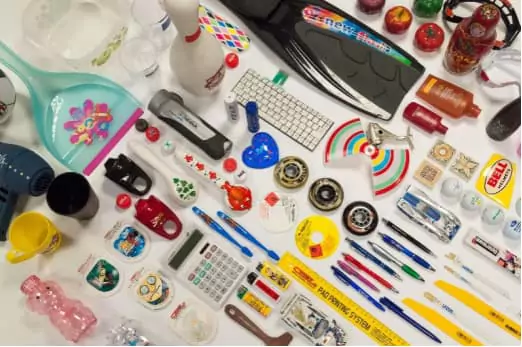

Unveiling Pad Printing: Pro Techniques & Benefits Revealed插图6

· Healthcare Devices Within the medical sector, pad printing finds extensive use in marking equipment and products like prosthetics, tubes, IV bags, syringes, and casings. This application is vital for precise identification and traceability, necessitating the utilization of medical-grade inks to ensure non-toxicity.

·. Noteworthy examples include the marking of motor parts such as radiators and batteries.

· Consumer Electronics For consumer appliances such as torches, radios, headsets, and laptops, pad printing serves purposes like decoration, instructional indication, and branding. The ink selection for such applications must consider environmental compatibility, resistance to wear and tear, and non-toxicity in case of contact with users.

· Sporting Goods Pad printing is utilized in the sporting goods sector to display iconic names, events, and images on equipment and merchandise. Ink formulations used for this purpose prioritize wear resistance and non-toxicity to ensure durability and safety.

· Cosmetics Industry Within the cosmetics industry, pad printing is employed for imprinting images, text, and instructions on product containers and branding tools. This includes the printing of visuals on containers for creams, lotions, and perfumes.

· Electronics Manufacturing In the electronics industry, pad printing is employed for creating varied image sizes on appliance surfaces, including circuits. This facilitates the clear labeling of parts for easy identification and traceability.

Comparing Pad Printing and Screen Printing for Surface Finishing

When considering surface finishing techniques, it’s essential to evaluate the merits of pad printing versus screen printing.

Unveiling Pad Printing: Pro Techniques & Benefits Revealed插图7

Screen printing is a sophisticated method whereby an image is transferred onto a flat surface through an intricately prepared screen overlay. This overlay contains a stencil that selectively blocks ink, allowing precise image reproduction onto the underlying object. The ink transfer is facilitated by pressure applied through a roller or squeegee.

Both screen printing and pad printing offer versatility in accommodating multiple colors. However, in screen printing, each color is applied individually, resulting in exceptional color saturation and opacity. Conversely, pad printing involves color mixing during the printing process.

While pad printing is particularly suitable for smaller objects with varying shapes, screen printing shines in large-scale projects involving expansive, flat, and smooth surfaces such as those found in paper, metal, or wood substrates. Despite this, pad printing holds an advantage in terms of cost-effectiveness and ease of setup compared to screen printing.

Conclusion

Pad printing, a method facilitating the transfer of 2D images from engraved printing plates onto objects of varied dimensions and sizes, stands as a pinnacle of accuracy, precision, and efficiency. However, the selection of optimal materials and components necessitates a comprehensive grasp of the process. Hence, this discourse delved deeply into the intricacies of pad printing, equipping you with a profound comprehension.

BOYI provides an extensive array of surface finishing solutions tailored to your requirements. Whether for prototyping purposes or large-scale production, our expertise in pad printing ensures impeccable results. Feel free to reach out to us for a customized quote today.

FAQs

Q: What is tampo printing?

A: Tampo printing, also known as pad printing, is a surface decoration technique used to transfer ink onto various objects. It involves using a silicone pad to pick up ink from a etched plate and then transferring it onto the desired surface.

Q: What types of ink are used in pad printing?

A: Pad printing ink typically consists of solvent-based, UV-curable, or water-based formulations. These inks are specially formulated to adhere to a variety of substrates and offer excellent durability and color vibrancy.

Q: What is involved in the pad printing process?

A: Pad printing involves several key components, including a printing plate engraved with the desired image, a silicone printing pad, ink, and the object to be printed. The ink is transferred from the etched plate to the silicone pad, and then onto the object through a pressing action.

Q: What are pad printing plates?

A: Pad printing plates, also known as clichés, are metal or polymer plates that have been etched with the desired image or design. These plates serve as the transfer medium for the ink in the pad printing process.

Q: What are pad printing pads?

A: Pad printing pads, or silicone pads, are soft, flexible pads made from silicone rubber. These pads pick up ink from the etched plate and transfer it onto the object being printed. The flexibility of the pads allows them to conform to the contours of various objects for precise ink transfer.
