Surface Refinement Technique: In-Depth Examination of Bead Blasting

A bead blast finish represents a refined surface treatment renowned for its versatility across diverse applications. Positioned within the expansive domain of “media blasting,” it stands as a preeminent choice among discerning manufacturers of precision-engineered components. Alongside bead blasting, this category encompasses alternative techniques such as abrasive planting and sandblasting, each distinguished by its unique merits and considerations.

This discourse is dedicated to elucidating the intricacies of the bead blast finish, delving into its underlying principles and the sophisticated array of apparatus employed to achieve optimal results. Furthermore, a comprehensive exploration of the advantages and limitations inherent to this surface treatment will empower stakeholders to make informed decisions pertinent to their specific project requirements. Let us embark upon this journey of exploration and enlightenment.

What Is Bead Blasting?

Bead blasting, a sophisticated surface finishing technique, employs the controlled propulsion of fine glass or steel beads at high pressure onto the surface of a component. This process is meticulously executed using specialized equipment within a controlled environment.

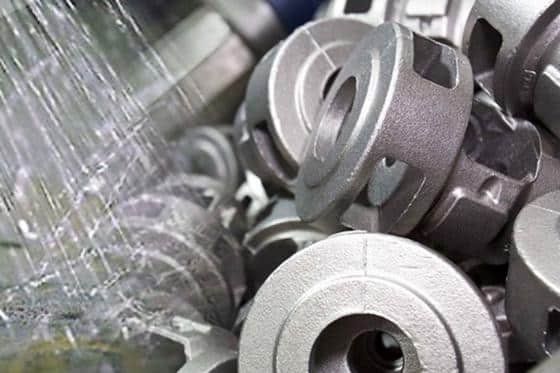

The Principle Behind Bead Blast Finish: How Does It Work?

Bead blasting operates on the fundamental principle of abrasive blasting. It entails the precise projection of spherical or bead-shaped media onto the surface of a workpiece. The controlled impact of these media particles yields a uniform and smooth finish on the component. The resultant surface texture is achieved through the controlled dimpling effect imparted by the bead blasting media.

Bead blasting offers a superior option for achieving consistently textured finishes. Utilizing fine glass media yields “dull” or “satin” surfaces on 3D printed or machined components, rendering it a premier choice for post-finishing applications. Conversely, employing coarse glass media produces a uniformly textured “rough” bead blasting finish.

In addition to ensuring uniform surface textures, bead blasting serves to conceal imperfections on workpiece surfaces. While certain finishing techniques may result in components with darker surfaces, the bead blast finish preserves the base color of the substrate, ultimately imparting brighter surface characteristics to the parts.

Distinguishing Between Bead Blasting and Sandblasting: A Professional Comparison

In the realm of surface finishing techniques, understanding the disparity between bead blasting and sandblasting is crucial for informed decision-making. While both methods operate on comparable principles, their material compositions and safety considerations delineate their respective applications.

Bead blasting employs spherical glass media propelled at high pressure, imparting a delicate yet effective treatment on surfaces. In contrast, sandblasting relies on silica sand to achieve its abrasive action, delivering a swifter but more abrasive process.

One notable advantage of bead blasting lies in its gentler approach, preserving the integrity of the underlying material while providing a polished finish. This method ensures minimal alteration to the component’s dimensions, thereby maintaining optimal quality.

Conversely, sandblasting, while faster, poses notable safety concerns due to the generation of fine sand or silica dust, which can be hazardous to operators upon inhalation. Prolonged exposure to such particulate matter may result in the development of silicosis, a serious respiratory condition.

Moreover, sandblasting carries the risk of unintentionally reshaping the substrate if not meticulously controlled, potentially compromising dimensional accuracy. Hence, meticulous monitoring and adherence to safety protocols, including the utilization of protective equipment, are imperative during sandblasting operations.

Equipment and Materials Utilized in Achieving a Bead Blast Finish

The cornerstone of a proficient bead blasting operation lies in employing appropriate equipment and materials tailored to the task at hand. Let us delve into the array of tools necessary to achieve optimal outcomes.

Bead Blasting Abrasives

Central to the bead blasting process is the choice of abrasive material. Typically, machinists opt for two primary types: glass beads and steel beads.

Glass Beads

Fashioned from lead-free soda-lime glass, these beads are meticulously crafted into spherical forms. Renowned for their eco-friendliness, glass beads can be recycled upwards of 30 times. Moreover, they exhibit a gentler abrasiveness, ensuring delicate treatment of component surfaces.

Steel Beads

Derived from molten steel and shaped into uniform spheres through precision molding, steel beads offer a robust and cost-efficient solution. Notably durable, they lend themselves to multiple recycling cycles. Steel beads excel in tasks requiring substantial material removal or the refinement of metal surfaces.

Glass Bead Blasting Enclosure

The glass bead blasting enclosure serves as the central hub for executing the entire blasting procedure. It is imperative to select a high-caliber enclosure that prioritizes both the safety of personnel conducting the operation and the integrity of the final results.

Enclosure Structure

A top-tier glass bead blasting enclosure demands robust construction. Steel emerges as the optimal material choice due to its inherent strength and resilience. Enclosures crafted from steel boast prolonged longevity and can withstand the intense pressures associated with the bead blasting process.

Structural Stability

Structural stability is paramount to the efficiency of the finishing process. The legs of the glass bead blasting enclosure must exhibit exceptional strength to uphold the weight of the enclosure itself, the bead blasting media, and the workpieces within. Feeble legs introduce instability, leading to incessant vibrations and jeopardizing operator safety. Furthermore, equipment failure mid-process presents a formidable setback.

In essence, what are the indispensable constituents defining a superior glass bead blasting enclosure?

Enhancing Cabinet Integrity:

Ensuring the cabinet’s internal sealing is meticulously maintained is imperative. Residue or particulates resulting from abrasive blasting processes pose potential health hazards. Hence, it is critical that the seals effectively contain dust and debris within the cabinet.

Optimizing Viewing Window Integrity:

In selecting a bead blaster cabinet, prioritizing a spacious viewing window is essential for adequate observation during operation. However, beyond mere size, safeguarding the window’s integrity is paramount. Certain glass bead materials may induce frosting over time, compromising visibility and potentially impacting work quality. Therefore, incorporating replaceable protective sheets for prolonged clarity during blasting operations is advisable.

Abrasive Blasting Tool

The attainment of a bead blast finish hinges significantly upon the efficiency and effectiveness of the abrasive blasting tool. Consequently, it represents an indispensable element warranting meticulous consideration. Various designs of abrasive blasting tools exist, each characterized by distinct operational mechanisms. While certain models are operated via manual hand pedals, others are controlled through foot pedals.

The selection of an appropriate abrasive blasting tool is a decision entrusted to either oneself or the designated operator. However, in instances demanding prolonged blasting endeavors, the utilization of tools equipped with foot pedal controls is advisable. Such tools offer enhanced ergonomic comfort and mitigate operator fatigue.

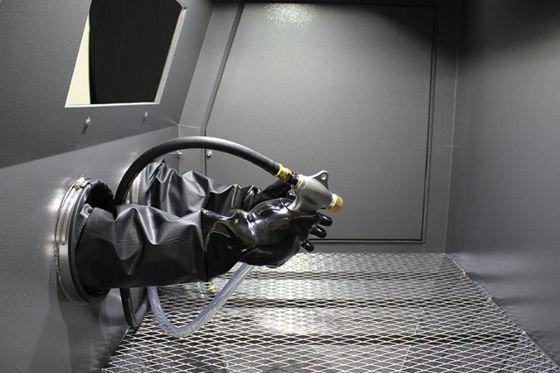

Protective Gloves for Abrasive Blasting

Prioritizing safety and operator comfort is paramount in any bead blasting operation. Protective gloves play a pivotal role in ensuring the safety of the operator during the abrasive blasting process. Typically provided as part of the blasting cabinet setup, these gloves serve to shield the hands from potential hazards. Given the manual handling of the blast gun, their use minimizes the risk of injury from abrasive residuals while also providing enhanced grip and control over the equipment.

Attributes of Bead Blasting Surface Treatment

The bead blasting technique offers distinct advantages in achieving uniform surface finishes without altering the dimensions of the workpiece. Unlike more aggressive abrasive methods, bead blasting operates with controlled efficiency, making it particularly suitable for a wide array of materials across various industrial sectors.

Bead blasting, a versatile surface finishing technique employed by manufacturers, serves to enhance the durability of components. This method seamlessly integrates with various manufacturing processes, offering adaptability across diverse applications. In scenarios necessitating precision and delicate features, the utilization of finer beads proves advantageous.

For stainless steel or aluminum bead blasting, opting for medium-sized beads is optimal. Renowned for their efficacy in concealing surface imperfections, these beads are favored for achieving impeccable finishes. Conversely, larger beads are preferred for the thorough cleansing and deburring of rugged surfaces encountered in automotive parts and metal castings.

Functional Applications of Bead Blasting:

Bead blasting serves as a multifaceted technique with diverse functional utilities, encompassing the following professional domains:

  1. Peening: Strategically employing bead blasting to enhance the resilience of metals against fatigue and fracture, thereby augmenting their durability and lifespan.
  2. Deburring: Employing bead blasting to meticulously refine the surface of metallic components, thereby eliminating irregularities, such as rough edges or ridges, to ensure optimal performance and safety.
  3. Cosmetic Refinement: Leveraging bead blasting to impart aesthetically pleasing characteristics to components, aligning with the desired visual standards and enhancing the overall appeal of finished products.
  4. Surface Preparation: Utilizing bead blasting to meticulously prime metal surfaces, ensuring an impeccable foundation for subsequent finishes such as powder coating and painting, thereby optimizing adhesion and longevity.
  5. Material Polishing: Employing bead blasting to meticulously polish an array of materials including aluminum, stainless steel, and cast iron, achieving a refined surface texture and luster, enhancing both functionality and visual appeal.
  6. Surface Restoration: Harnessing the abrasive power of bead blasting to effectively remove unwanted substances such as paint, rust, scale, and calcium deposits, rejuvenating surfaces and restoring them to their pristine condition.

Applications Across Industries

The bead blast finish finds versatile utility across diverse industrial sectors, encompassing:

  1. Aerospace: Priming aircraft components prior to painting.
  2. Automotive: Preparing automotive parts for fresh paint application.
  3. Defense: Conditioning military components.
  4. Medical: Treating aluminum parts for medical equipment.

Advantages and Disadvantages of Bead Blast Finish

Bead blasting yields a uniform, textured surface with a non-directional finish, offering both functional and aesthetic benefits. This technique demonstrates adaptability across an array of materials such as aluminum, stainless steel, titanium, copper, brass, and plastics.

In assessing the viability of bead blasting for your project, it is imperative to meticulously weigh its benefits and drawbacks. This section aims to elucidate the advantages and disadvantages inherent in employing bead blasting techniques.

Advantages of Bead Blasting

  1. Cost-Effectiveness: Bead blasting stands out as one of the most economically viable surface finishing methods available.
  2. Enhanced Safety: Compared to alternative blasting processes, bead blasting boasts superior safety protocols, ensuring a secure working environment.
  3. Preserved Aesthetic Integrity: The inherent nature of bead blasting ensures that the original color and vibrancy of the workpiece remain unaltered, resulting in a pristine finish.
  4. Sustainable Resource Utilization: The recyclability of bead blasting media, particularly glass beads, up to 30 cycles before replacement underscores its eco-friendly appeal.
  5. Environmental Responsibility: Utilizing lead-free materials in the bead blasting process minimizes ecological footprint by obviating the generation of harmful residues.
  6. Customizable Application: Bead blasting offers the flexibility to selectively mask specific surfaces of components, enabling precise control over the finishing process.
  7. Versatile Application: Particularly well-suited for intricate components, bead blasting emerges as a superior choice for achieving meticulous surface finishes.

Disadvantages of Bead Blasting

  1. Tolerance Considerations: Bead blasting may not be conducive to applications necessitating stringent dimensional tolerances, requiring careful consideration in such contexts.
  2. Time Intensiveness: Processing tougher materials through bead blasting may entail extended operation durations, potentially impeding efficiency.
  3. Paint Adherence Limitations: Utilization of glass beads in bead blasting may pose challenges to subsequent paint adherence, necessitating additional preparatory measures.
  4. Labor Intensity: The manual operation inherent in bead blasting renders it labor-intensive, demanding heightened personnel involvement throughout the process.

Optimizing Bead Blast Finishes: Expert Guidelines

Achieving top-tier bead blast finishes necessitates meticulous attention to detail across various parameters, ranging from the selection of blasting media to the precise application of pressure. To ensure consistently high-quality results, it is imperative to establish comprehensive specifications that govern these variables.

Outlined below are industry-recommended best practices and strategic insights aimed at enhancing control and elevating the quality of bead blast finishing processes.

Precise Media Selection and Grit Sizing

The choice of blasting media exerts a profound influence on the tactile and visual attributes of the final bead blast finish. For example, fine glass beads yield a uniform, satin-like texture, whereas coarse glass beads impart a rugged appearance. Alternatively, steel shots excel in refining surfaces and eliminating undesired imperfections.

Grit size, denoting the coarseness or fineness of abrasive particles, plays a pivotal role in determining the ultimate finish. Lower grit values correspond to coarser particles, whereas higher grits yield finer abrasives. Media sizes typically span a spectrum from very fine to coarse, each offering distinct textural outcomes. Accordingly, specifying the desired media type and grit size in part documentation or order requisitions is essential for achieving desired results.

Enhance Surface Quality Through Strategic Bead Blasting Practices

The intricacies of bead blasting can significantly influence the surface roughness of components. Achieving precise surface roughness specifications can be challenging with bead blast finishes. It is advisable to maintain a minimum surface roughness of 32 µin Ra for smoother results.

Specify Masking Protocols for Critical Features

In instances where certain surfaces or features must remain free of bead blast finishing, meticulous masking instructions should be provided. Critical features such as O-ring grooves and sealing surfaces warrant particular attention, as do small pitch threaded features.

Optimize Bead Blasting Pressure for Superior Results

Effective bead blasting entails employing the lowest feasible pressure, as this often yields optimal outcomes, particularly when utilizing glass beads. A starting pressure of approximately 50 PSI is recommended to prolong bead lifespan and ensure an ideal bead blasting finish.

Excessive pressure during bead blasting can lead to bead deformation, escalating production expenses and generating surplus debris, posing safety risks to operators and potentially compromising surface quality.

Pre-treatment for Aluminum Components

Before subjecting aluminum components to bead blasting, it is imperative to remove any oxide layers or rust present on the surface. Glass beads are ineffective for this purpose. Instead, abrasive materials capable of efficiently eliminating oxide layers or rust should be utilized to ensure a pristine surface prior to bead blasting.

Executive Summary

Employing a bead blast finish offers an advantageous method for achieving semi-polished, satin-like surfaces on components. This versatile surface treatment is applicable across diverse materials and boasts a wide array of potential uses. Its comparatively gentle nature and cost-effectiveness render it a preferred choice for numerous projects.

For optimal outcomes in bead blast surface finishing, collaboration with a dependable partner is paramount. WayKen delivers top-tier parts finishing solutions at competitive rates. Our commitment extends to addressing the requirements of components necessitating varied surface finishes. Reach out to us for expert consultation on your upcoming project, and if you’re prepared to engage our services, kindly request a quote at your earliest convenience.

Frequently Asked Questions (FAQs):

Q1. What role does bead blast finishing serve?

A1. Bead blasting offers versatility and adaptability, aiding in surface cleansing to yield a uniform, matte or satin-like texture and enhancing overall aesthetic appeal.

Q2. Is glass bead blasting considered safe?

A2. Employing glass beads entails fewer safety concerns compared to alternative bead blasting media. They mitigate risks associated with silica dust or debris, thus ensuring operator safety. Additionally, they exert minimal impact on component dimensions, preserving their integrity.

Q: What is bead blast?

A: Bead blast refers to a surface treatment process utilizing abrasive media, typically glass beads or ceramic particles, propelled at high velocity to clean, smooth, or texture a material’s surface.

Q: What is bead blast finish?

A: Bead blast finish denotes the result of employing bead blasting techniques, yielding surfaces with a uniform, matte, or satin-like texture, enhancing the aesthetic appeal of components.

Q: What is bead blasted?

A: “Bead blasted” describes a surface that has undergone the bead blasting process, characterized by its matte or satin-like appearance resulting from the impact of abrasive media.

Q: What is bead blasted stainless steel?

A: Bead blasted stainless steel refers to stainless steel surfaces treated with bead blasting methods, resulting in a uniform, textured finish, often preferred for its aesthetic appeal and corrosion resistance.

Q: What is bead blasting aluminum?

A: Bead blasting aluminum involves subjecting aluminum surfaces to bead blasting techniques to achieve desired finishes, effectively removing impurities and creating a uniform texture.

Q: What is bead blasting gun? A: A bead blasting gun is a handheld tool used to direct abrasive media, such as glass beads or ceramic particles, at high velocity onto surfaces for cleaning, smoothing, or texturing purposes.

Q: Is there a bead blasting near me?

A: To locate bead blasting services in your vicinity, it is recommended to conduct a local search or inquire with nearby fabrication or surface finishing facilities.

Q: What is beadblast?

A: “Beadblast” is a term commonly used interchangeably with “bead blast,” referring to the process or result of bead blasting techniques applied to various materials for surface treatment purposes.
