High Pressure Die Casting (HPDC) Process Overview

Ever contemplated the intricate fabrication of vehicle components such as engine blocks, powertrains, and suspension parts? Consider the juxtaposition of these robust elements with the precision-engineered lightweight tools utilized in the medical field. High pressure die casting emerges as a prominent manufacturing methodology capable of producing a diverse array of products.

What attributes contribute to the widespread adoption of this technique across various industries? This article delves into the technical nuances of high pressure die casting, elucidating its procedural intricacies, practical applications, and inherent advantages. Armed with this knowledge, stakeholders can make well-informed decisions regarding the suitability of this process for their specific manufacturing requirements.

Understanding High Pressure Die Casting

High pressure die casting represents a manufacturing process wherein molten metal is introduced into a die and subsequently solidified to yield the desired component. Employing hydraulic pressure, the molten metal is forcefully injected into the die cavity, whereupon a robust press firmly secures it in place. Upon completion of the solidification phase, the casting is extracted by opening the die, with the apparatus promptly reset for subsequent production cycles. Notably, the tooling for high pressure die casting comprises two steel blocks that delineate the boundaries of the die cavity, thereby facilitating the formation of the desired object.

Evolutionary Trajectory of High Pressure Die Casting

The lineage of high-pressure die casting traces back to the mid-1800s, originating initially within the printing industry for the production of printing machinery components. Initially employing a blend of lead and tin poured into steel molds, the technique gradually evolved and diversified across industries. Subsequent to 1914, die casting expanded its material repertoire to encompass zinc and aluminum alloys, which have since become ubiquitous in contemporary industrial applications. By the mid-1930s, the majority of alloys employed in the die casting industry had been established.

Operational Mechanisms of High Pressure Die Casting

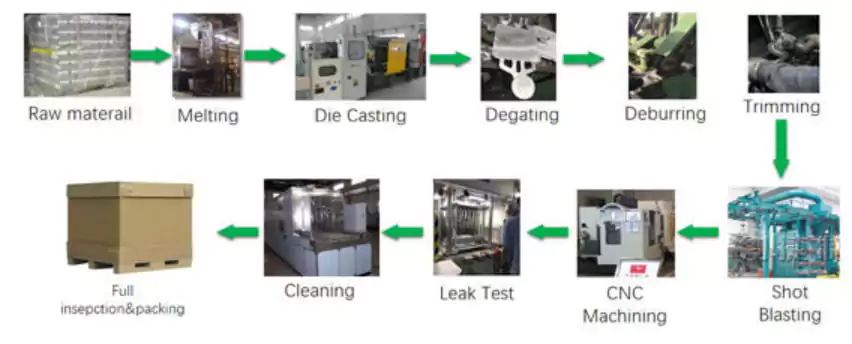

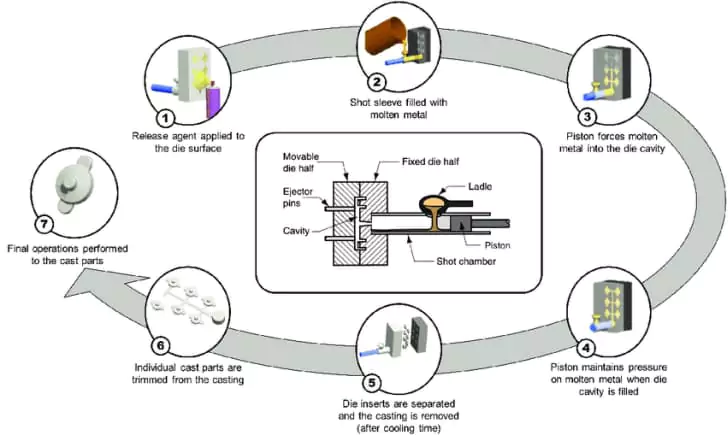

High-pressure die casting (HPDC) operates through a meticulously orchestrated sequence of four fundamental stages: mold preparation, injection, ejection, and post-casting treatments. Variations in this process have emerged to address specific product exigencies, incorporating advancements such as vacuum die casting, slow-fill die casting, and semisolid metal processing (SSM), among others. Nonetheless, the overarching procedural framework remains consistent, encompassing the following procedural delineations:

1.Mold Conditioning

Prior to commencing the production cycle, it is imperative to engage in mold preparation procedures aimed at purging impurities and ensuring optimal functionality. This involves meticulous cleaning of the die cast mold followed by the application of lubricants to its interior surfaces. This process serves to regulate mold temperature and facilitate the seamless extraction of the casted product.

2.Metal Injection

The injection phase entails the introduction of molten metal into a designated shot chamber, subsequently injecting it into the prepared mold. This pivotal step can be executed via two distinct methods: hot chamber and cold chamber injection.

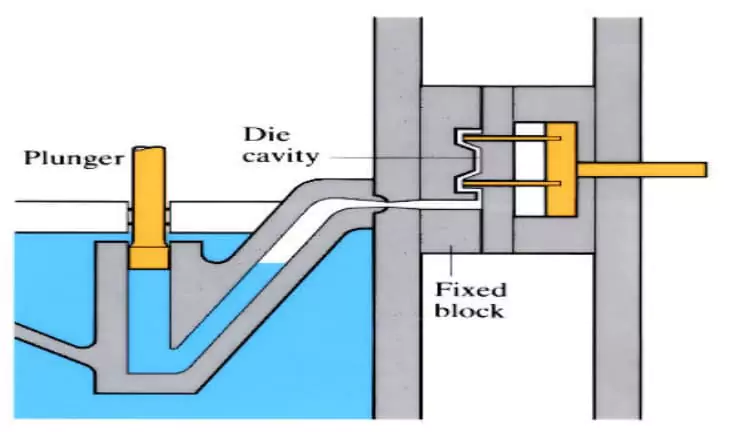

Hot Chamber Injection

Within this methodology, the injection system is immersed directly into the molten metal furnace. The molten metal traverses through the shot plunger into the nozzle before being delivered into the die. Hot chamber injection is particularly well-suited for metals such as zinc, magnesium, and lead.

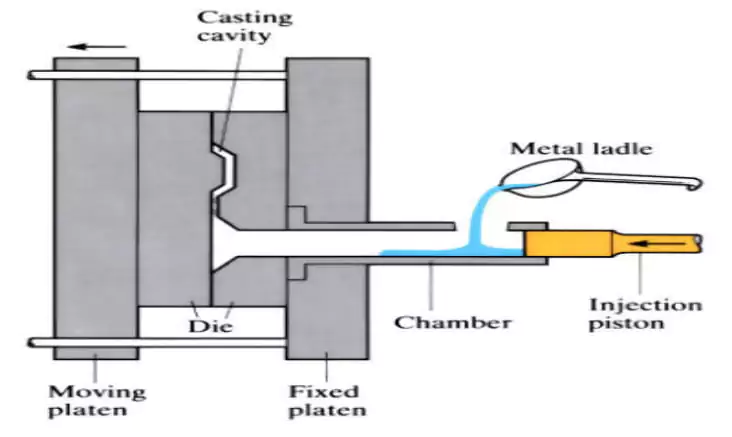

Cold Chamber Die Casting

In this technique, molten metal is introduced into a cold chamber sleeve either manually or through an automated system. Subsequently, a hydraulic plunger is utilized to drive the molten metal through the sleeve, sealing the port and facilitating the injection into the die cavity. Upon solidification, the plunger is removed, and the die is opened to eject the finished part. This method is particularly well-suited for materials with high melting points such as aluminum, brass, and magnesium. The cold chamber process can be executed using either horizontal or vertical injection configurations.

Magnesium exhibits compatibility with both cold chamber and hot chamber die casting processes. Typically, hot chamber machines are employed for producing small and intricate parts due to their dimensional constraints. Furthermore, parts manufactured through high-pressure zinc die casting tend to possess greater strength compared to those produced via aluminum pressure die casting.

In both methodologies, the injection process is executed under elevated pressures, typically ranging between 1,500 to 25,000 pounds per square inch (PSI). This rapid process occurs within fractions of a second. The mold must be hermetically sealed and subjected to sustained high pressure to facilitate solidification. Hydraulic pressures are adept at compressing any entrapped gases within the mold and facilitating solidification shrinkage during the cooling phase. Commercially available forces of up to 4000 tons are employed to secure the die and endure the high pressures.

3.Part Extraction

Upon ensuring complete solidification of the molten metal, the cavity is extracted from the mold. Ejector pins, typically situated on the movable end of the mold, facilitate the release of the cavity by pushing out the solidified casting part.

4.Deflashing and Finishing

The culminating phase of high-pressure die casting entails the deflashing and finishing processes, aimed at eliminating excess material from both the product and the mold. Employing specialized equipment such as trim dies and saws facilitates precision in this critical stage. Furthermore, it’s noteworthy that surplus metal scraps generated during trimming are conducive to reusability and recyclability in subsequent production cycles.

For those seeking further insights into die casting methodologies, we invite exploration of our comprehensive guide on low-pressure die casting, which promises to enhance your expertise in the field.

Advantages of High Pressure Die Casting

High-pressure die casting stands out as a preferred manufacturing method across diverse industries owing to its array of advantages compared to alternative processes. Here are some of its key benefits delineated with a professional touch:

– Enhanced Production Efficiency

High-pressure die casting facilitates elevated production rates surpassing those achievable with low-pressure or gravity casting methodologies. The utilization of high pressure enables the rapid injection of molten metal, culminating in heightened production efficiencies. Consequently, this process is particularly favored for high-volume manufacturing endeavors.

– Superior Component Quality

In addition to heightened efficiency, high-pressure die casting yields components of exceptional quality characterized by precise dimensional accuracy and impeccable surface finishes. The superior precision obviates the necessity for supplementary trimming procedures, thereby mitigating both time and cost expenditures. Furthermore, the superior surface finish facilitates subsequent plating processes. Notably, products derived from high-pressure die casting exhibit exemplary uniformity and optimal mechanical properties.

– Thin Wall Fabrication Capability

The robust pressures inherent in high-pressure die casting permit the creation of remarkably thin cross-sections, surpassing the capabilities of alternative casting techniques. Achieving wall thicknesses below 0.40 mm is feasible, tailoring to specific requirements and component dimensions. The resultant thin walls contribute to weight reduction in the final products, while also accommodating the integration of inserts—commonly referred to as “co-cast” parts—such as screws and liners, within the casting process. This integration streamlines assembly processes by minimizing the number of constituent components.

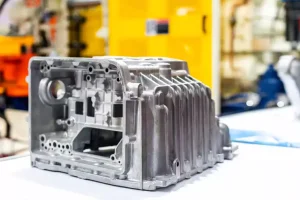

– Facilitation of Complex Designs

High-pressure die casting affords flexibility in die shapes, enabling the fabrication of intricate parts seamlessly within a single casting process. This capability is instrumental in realizing complex assemblies with precision and efficiency.

– Longevity of Dies

The dies employed in high-pressure die casting exhibit remarkable durability, rendering them reusable across multiple production cycles. This longevity significantly mitigates the per-unit cost associated with die casting, bolstering its economic viability.

Applications of High-Pressure Die Casting (HPDC)

Owing to the unparalleled quality and precision achieved with High-Pressure Die Casting, this process has garnered significant traction across a spectrum of industries.

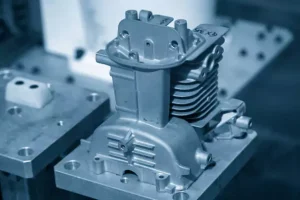

– Automotive Sector

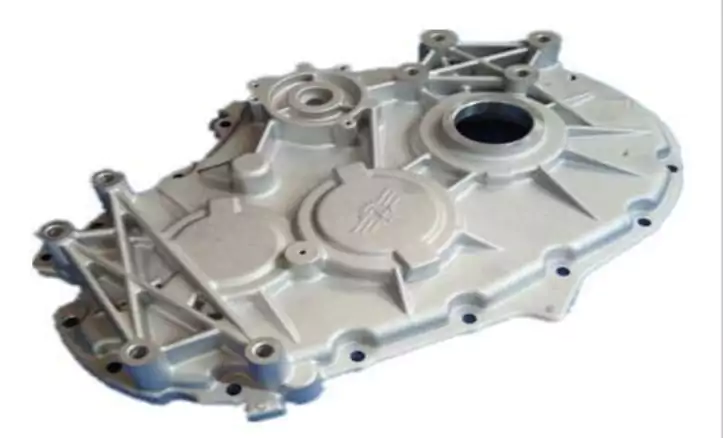

High-Pressure Die Casting stands as a cornerstone in the fabrication of diverse aluminum and magnesium automotive structural components. It facilitates the production of critical parts including engine blocks, gearbox casings, oil sumps, engine mounts, and structural elements such as cross-car beams.

– Medical Field

In the medical domain, High-Pressure Die Casting emerges as a favored method for crafting lightweight surgical instruments. Additionally, it serves as a pivotal technique for the mass production of medical devices, including high-end imaging equipment and infusion pumps.

– Aerospace Domain

Renowned for its capability to realize intricate designs with precision and efficiency, High-Pressure Die Casting holds a paramount position in the aerospace industry. Utilizing alloys of aluminum, zinc, and magnesium, this method enables the manufacture of engine components tailored for aerospace applications.

BOYI – Tailored Solutions for High-Pressure Die Casting

Selecting the optimal manufacturing process and partnering with seasoned professionals is pivotal for product success. At BOYI, we offer access to a dedicated team of skilled engineers renowned for their expertise in high-pressure die casting services. Our team’s depth of knowledge empowers us to offer comprehensive guidance and address all your inquiries with confidence.

Leveraging state-of-the-art manufacturing facilities and cutting-edge technology, we excel in delivering premium-quality products. Furthermore, our streamlined processes ensure swift lead times, alongside rapid online quotations and complimentary Design for Manufacturability (DFM) analysis upon file submission. Trust in BOYI for superior solutions at competitive market rates.


Q1. What is the rationale behind the term “die casting”?

A1. The nomenclature stems from the utilization of dies in the process. Dies, crafted from steel through CNC machining, serve as molds into which molten metal is injected. These dies consist of two halves: a fixed segment integrated with the casting apparatus and a movable ejector counterpart.

Q2. How does die casting distinguish itself from alternative casting methodologies?

A2. Die castings offer analogous benefits to gravity-cast counterparts, such as robustness, aesthetic appeal, tactile quality, verified fatigue resistance, and effective sound attenuation. Notably, die casting facilitates swift production with precise dimensional accuracy, often obviating the necessity for secondary machining operations. Furthermore, while sand casting necessitates fresh molds for each production run and permanent mold casting operates at a slower pace compared to High-Pressure Die Casting (HPDC), die casting stands out for its rapid manufacturing capabilities.

Q3. What sets apart low-pressure and high-pressure die casting?

A3. Low-Pressure Die Casting (LPDC) operates within pressure ranges of 0.08-0.15 MPa, whereas High-Pressure Die Casting (HPDC) operates within the 30-70 MPa range. LPDC typically yields moderate production rates with comparatively extended casting cycles, while HPDC achieves higher throughput with accelerated casting cycles. HPDC results in products featuring controlled porosity and superior surface finish, whereas LPDC produces castings devoid of internal porosity but with an average surface texture.

Q4. What distinguishes high pressure die casting from other casting methods?

A4. High Pressure Die Casting (HPDC) is a casting process renowned for its utilization of significantly elevated pressures, typically ranging between 30-70 MPa. This method stands out for its ability to swiftly produce intricate metal components with exceptional dimensional accuracy and surface finish. HPDC is particularly favored in industries where rapid production, precise geometries, and superior mechanical properties are paramount.

Q5. How does high pressure die casting compare to other die casting techniques?

A5. Unlike Low-Pressure Die Casting (LPDC) or Gravity Die Casting, high pressure die casting operates within a distinctly higher pressure range, resulting in faster production cycles and finer surface finishes. LPDC, with its lower pressure parameters, may offer advantages in specific applications, but HPDC’s ability to deliver intricate parts with minimal porosity and superior mechanical properties makes it a preferred choice for many industries.

Q6. What defines pressure die casting as a manufacturing process?

A6. Pressure die casting encompasses a range of casting techniques characterized by the application of pressure to force molten metal into a mold cavity. This process ensures the production of precise, complex metal components with minimal defects. Pressure die casting methods include both high pressure die casting (HPDC) and low-pressure die casting (LPDC), each offering distinct advantages and applications.

Q7. What are the key benefits of pressure die casting?

A7.Pressure die casting methods, whether high or low pressure, offer several advantages over alternative casting techniques. These include rapid production rates, excellent dimensional accuracy, fine surface finishes, and the ability to produce intricate geometries with minimal post-processing. Additionally, pressure die casting processes facilitate the use of a wide range of metal alloys, making them versatile solutions for diverse industrial applications.
