Manual for Utilizing STL Files in 3D Printing Processes

Definition and Role: STL files define 3D models by dividing surfaces into triangles.

STL (Stereolithography) files serve as the standard format for 3D printing, defining the geometry of 3D models through a collection of interconnected triangles. The resolution of an STL file determines the level of detail and accuracy of the printed model. Higher resolution STL files contain more triangles, resulting in smoother surfaces and finer details. However, this increased detail comes at the cost of larger file sizes and longer processing times.

Manual for Utilizing STL Files in 3D Printing Processes插图

Resolution Impact: Higher resolution enhances accuracy but increases file size.

The impact of resolution on 3D printing quality cannot be overstated. A higher resolution STL file contains more triangles, allowing for finer details and smoother surfaces in the printed model. This enhanced accuracy is particularly important for complex geometries or intricate designs where precision is paramount. However, higher resolution also means larger file sizes, which can strain storage capacity and slow down printing processes, especially for large-scale or batch printing operations.

Balancing Resolution: Optimal resolution balances accuracy with manageable file size.

Finding the optimal resolution for 3D printing requires striking a balance between accuracy and file size. While higher resolution offers superior detail and surface quality, it also increases the computational load and printing time. Therefore, it’s essential to assess the specific requirements of each printing project and adjust the resolution accordingly. For larger models or prototypes where intricate details are less critical, a lower resolution may suffice, reducing file size and printing time without significant compromise in quality.

Export Settings for Quality Printing

Chordal Tolerance/Deviation: Defines allowable divergence between CAD and STL surfaces.

Chordal tolerance, also known as chord height tolerance or deviation, specifies the maximum allowable distance between the surface of the CAD model and the corresponding triangular facets in the STL file. This parameter influences the accuracy and fidelity of the printed model, as deviations beyond the specified tolerance can result in inaccuracies or surface imperfections. Fine-tuning chordal tolerance settings ensures that the printed model closely matches the original CAD design while minimizing file size and printing time.

Angular Tolerance/Deviation: Determines permissible deviation from CAD angles.

Angular tolerance defines the maximum allowable deviation from the original angles specified in the CAD model. Like chordal tolerance, angular tolerance influences the accuracy and precision of the printed model, particularly for geometric features such as corners, edges, and intersecting surfaces. Setting appropriate angular tolerance values ensures that the printed model faithfully replicates the intended geometry of the CAD design, maintaining dimensional accuracy and structural integrity throughout the printing process.

Setting Recommendations: Optimal values for chordal and angular tolerances.

Achieving optimal print quality requires careful consideration of chordal and angular tolerance settings. While the specific values may vary depending on the complexity of the model and the capabilities of the 3D printing equipment, general recommendations can guide the selection process. Typically, chordal tolerance values between 0.01 mm and 0.1 mm and angular tolerance values between 0.5 degrees and 1 degree are suitable for most printing applications, striking a balance between accuracy, efficiency, and file size. However, adjustments may be necessary based on the specific requirements of each printing project and the capabilities of the printing equipment.


Exporting STL Files from CAD Software

Manual for Utilizing STL Files in 3D Printing Processes插图1

Process Overview: Exporting STL files from various CAD programs.

Exporting STL files from CAD software is a fundamental step in the 3D printing process, allowing designers to translate their digital designs into a format compatible with 3D printers. The process typically involves accessing the export function within the CAD software and selecting STL as the desired file format. Different CAD programs may have variations in the export process, but the general workflow remains consistent across platforms, ensuring compatibility with a wide range of 3D printing systems.

Settings and Options: Configuring chord and angular tolerances, poly count, and file format.

When exporting STL files from CAD software, designers have the option to configure various settings to optimize print quality and efficiency. Key parameters include chordal and angular tolerances, which determine the level of detail and accuracy in the printed model. Additionally, designers can specify the polygon count to control the density of the triangular mesh defining the 3D model. These settings allow designers to balance print quality with file size and printing time, ensuring optimal results for each printing project.

Binary vs. ASCII Format: Understanding the difference and implications.

STL files can be exported in either binary or ASCII (text-based) format, each with its own advantages and implications. Binary format STL files are more compact and efficient in terms of storage and processing, making them suitable for large and complex models. However, binary files are not human-readable and may be more challenging to troubleshoot or modify. On the other hand, ASCII format STL files are plain text files that can be easily edited or inspected using a text editor, facilitating debugging and customization. While ASCII files are larger in size compared to binary files, they offer greater accessibility and transparency in the 3D printing workflow.

What Is an STL File?

Manual for Utilizing STL Files in 3D Printing Processes插图2

Definition: Digital format readable by 3D printers and slicing software.

An STL (Stereolithography) file is a digital format commonly used in 3D printing and computer-aided manufacturing (CAM) processes. It consists of a collection of interconnected triangles that define the surface geometry of a 3D model. STL files are widely supported by 3D printers and slicing software, allowing designers to translate their digital designs into physical objects with precision and accuracy.

Purpose: Defines outer shape of 3D model without aesthetic details.

The primary purpose of an STL file is to define the outer shape or surface geometry of a 3D model, excluding aesthetic details such as colors, textures, or internal structures. By representing the model as a collection of triangles, STL files provide a simplified and geometrically accurate representation that is suitable for interpretation by 3D printers and slicing software. This allows for efficient slicing and layer-by-layer fabrication of the physical object from the digital model.

Importance: Essential for interpreting models in 3D printing process.

STL files play a crucial role in the 3D printing process, serving as the bridge between digital design and physical fabrication. Without an STL file, 3D printers would not have the necessary instructions to create the desired object layer by layer. As such, STL files are indispensable for translating digital designs into tangible prototypes, products, and components across a wide range of industries, from aerospace and automotive to healthcare and consumer goods.


Pros and Cons of STL Files

Compatibility, ease of sharing, versatility, fast printing.

STL files offer numerous advantages in the realm of 3D printing, making them a preferred format for digital design representation. Firstly, STL files are highly compatible with a wide range of 3D printing software and hardware, ensuring seamless integration into various workflows and systems. Additionally, their simplicity and universality facilitate easy sharing and distribution among designers, manufacturers, and clients. Furthermore, STL files are versatile, capable of representing complex geometries with precision, and enabling the fabrication of a diverse range of objects. Lastly, due to their triangular mesh structure, STL files are conducive to fast printing, allowing for efficient production of prototypes and components.

Lack of visual detail, inability to store metadata, difficult to modify.

Despite their advantages, STL files also present some limitations and drawbacks. One significant limitation is the lack of visual detail inherent in STL representations. Since STL files define 3D models solely through triangular facets, they are unable to capture finer aesthetic details such as textures, colors, or surface finishes. Additionally, STL files do not have the capability to store metadata, such as material properties or design intent, which may be crucial for certain applications or downstream processes. Furthermore, modifying STL files can be challenging, as they are not easily editable or parametrically driven like CAD files. This limitation can hinder design iteration and customization efforts, requiring additional time and resources to make alterations.

Creating and Modifying STL Files

Creation Process: Steps from CAD design to STL export.

The process of creating an STL file typically begins with the design of a 3D model using computer-aided design (CAD) software. Once the design is complete, the designer exports the model as an STL file using the CAD program’s export function. During export, the CAD software triangulates the model’s surfaces, converting them into a mesh of interconnected triangles that define the geometry of the object. This STL file is then ready for further processing, such as slicing for 3D printing.

Modifying Resolution: Adjusting resolution within CAD software.

When creating or modifying STL files, designers may need to adjust the resolution of the triangular mesh to achieve desired print quality and file size. Most CAD software allows users to control the level of detail in exported STL files by adjusting parameters such as chordal and angular tolerances. By increasing or decreasing these tolerances, designers can fine-tune the resolution of the STL file to balance accuracy with efficiency. Additionally, CAD software often provides tools for refining mesh geometry, smoothing surfaces, or simplifying complex shapes to optimize the STL file for printing.

Tools and Software: CAD, mesh editing, and slicer programs for handling STL files.

A variety of tools and software are available for creating, modifying, and processing STL files throughout the 3D printing workflow. CAD software such as Autodesk Fusion 360, SolidWorks, or Blender are commonly used for designing and exporting STL files. Mesh editing programs like MeshLab or Blender offer additional capabilities for refining and repairing STL meshes, such as removing artifacts, closing gaps, or reducing file size. Finally, slicer programs such as Cura or Simplify3D convert STL files into printable instructions for 3D printers, allowing users to adjust printing parameters, generate support structures, and preview print outcomes before fabrication.


Understanding Surface Representation

Manual for Utilizing STL Files in 3D Printing Processes插图3

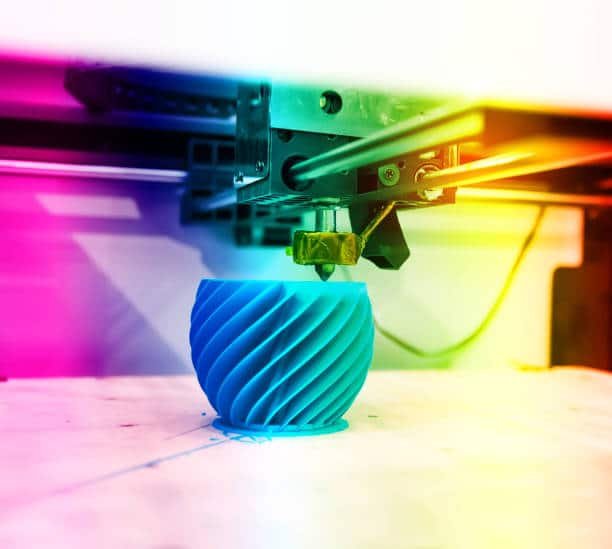

Three dimensional printing machine

Outer Surface Representation: STL models typically represent only exposed surfaces.

In the realm of 3D printing, STL (Stereolithography) files serve as the primary format for representing 3D models. However, it’s essential to recognize that STL files typically represent only the outer surfaces of objects. This means that any internal structures or cavities within the model may not be accurately represented in the STL file. Designers must ensure that the model’s geometry is closed and manifold to prevent printing errors and ensure the integrity of the final printed object.

Solidity Configuration: Ensuring STL objects are interpreted as solid.

To ensure that STL objects are interpreted as solid by slicing software and 3D printers, designers must configure the geometry to be watertight and free of gaps or holes. A solid STL model should have well-defined boundaries and a closed surface mesh without any missing or overlapping triangles. By configuring the model’s solidity appropriately, designers can avoid printing errors such as voids or incomplete layers and ensure that the printed object accurately reflects the intended design.

Handling Gaps and Holes: Closing gaps for solid rendering.

Handling gaps and holes in STL models is crucial for achieving solid and printable geometry. Designers can use various techniques to close gaps and holes in the model’s surface mesh, such as manual editing in CAD software or using specialized mesh repair tools. These techniques involve identifying and repairing areas of the model where triangles are missing or incorrectly aligned, ensuring that the surface is continuous and free of defects. By addressing gaps and holes, designers can create STL files that are suitable for successful 3D printing.

Secure Methods and Compatibility

Secure STL Creation: Simplifying data to triangle positioning.

When creating STL files, it’s important to employ secure methods to ensure the integrity and confidentiality of the design data. One approach is to simplify the data representation to only include essential information, such as triangle positioning, while omitting sensitive details such as design intent or proprietary features. This simplification reduces the risk of intellectual property theft or unauthorized access to the design data, safeguarding the designer’s creative work and business interests.

Security Measures: Keeping files offline for enhanced security.

Manual for Utilizing STL Files in 3D Printing Processes插图4
White 3D printing piece

In addition to secure creation methods, designers can further enhance the security of STL files by keeping them offline and limiting access to authorized personnel only. Storing STL files on secure, offline storage devices or networks minimizes the risk of cyberattacks, data breaches, or unauthorized distribution. By implementing robust security measures, designers can protect their intellectual property and confidential design data from potential threats or vulnerabilities.

Compatibility: Prevalence of STL format in 3D printing, with alternatives like VRML, OBJ, and PLY.

Despite its widespread use and compatibility in 3D printing, the STL format is not the only option available for representing 3D models. Alternative formats such as VRML (Virtual Reality Modeling Language), OBJ (Object File Format), and PLY (Polygon File Format) offer different features and capabilities that may be better suited for specific applications or workflows. Designers should consider the compatibility and requirements of their 3D printing system when choosing the appropriate file format for their projects, ensuring seamless integration and optimal printing outcomes.

Conclusion

STL files serve as crucial intermediaries in the 3D printing process, defining models for printing. Understanding resolution, export settings, and handling is essential for successful printing outcomes.

Understanding surface representation, secure methods, and compatibility is essential for effective utilization of STL files in 3D printing workflows. By ensuring the solidity and integrity of STL models, employing secure creation methods, and choosing compatible file formats, designers can optimize print quality, efficiency, and security in their 3D printing endeavors. STL files play a pivotal role in translating digital designs into physical objects, and by mastering their nuances, designers can unlock the full potential of 3D printing technology in various industries and applications.
