Precision Machining: In-depth Exploration of Undercut Processes and Applications

Undercutting, an advanced machining technique rooted in chemical machining principles, involves the creation of recessed cavities beneath a material’s surface. Originally relying on chemical etching, the process has evolved to utilize mechanical tools for precision and efficiency.

This article aims to delve into the intricacies of undercut machining, tracing its development, exploring various methodologies, and elucidating its practical applications.

What is Undercut Machining?

Undercut machining is a specialized process for creating recessed surfaces within mechanical components. These recesses, often extending beneath another surface, require techniques beyond standard cutting tools due to their inaccessible nature.

T-Slot Undercut Machining

Visualize a T-slot: the horizontal element of the “T” represents the undercut. While the top surface is readily machinable, the inward-extending undercut cannot be reached directly from above.

Undercuts can be either external or internal. External undercuts, common in molds, are relatively straightforward to machine. Conversely, internal undercuts, concealed within components like gear hubs, pose greater machining challenges.

How Undercut Machining Works

Undercut machining demands specialized processes and tools tailored to each job’s requirements.

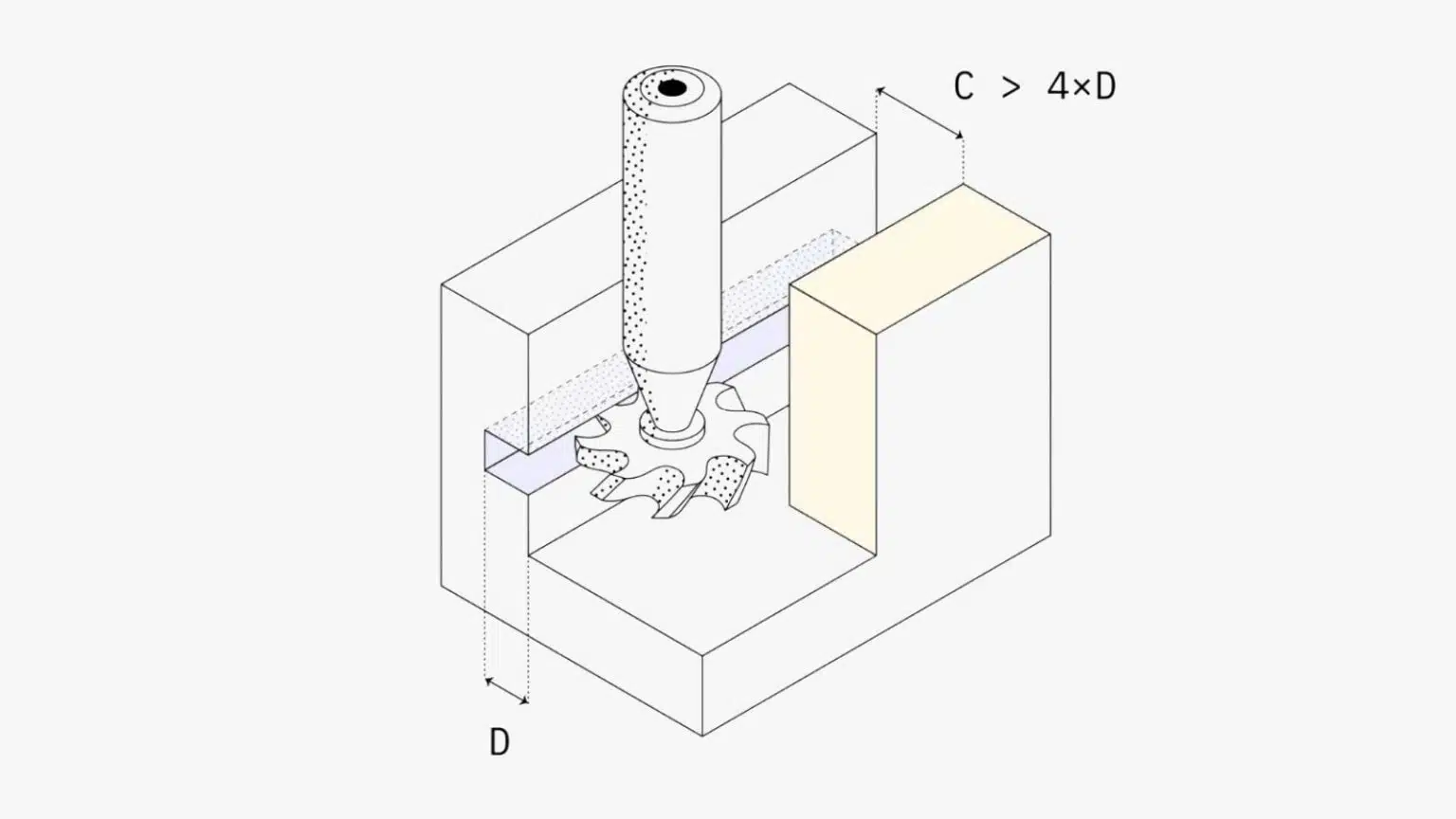

Creating Undercuts with End Mill Cutters

Step 1: Geometry Analysis

Thoroughly analyze the component’s geometry to discern whether the undercut is internal or external. Document the machining strategies and sequence needed to achieve the desired design.

Step 2: Tool Selection

No universal tool exists for undercut machining; each job necessitates specific CNC undercut tools chosen based on material and required profile and depth.

Step 3: CNC Machine Setup

Input detailed design specifications into CAD software to prepare the CNC machine. Attach a specialized spindle for undercut machining and securely clamp the material onto the work table.

Step 4: Machining

After tool addition and workpiece clamping, the CNC machine autonomously executes the cutting process along the defined path.

Step 5: Quality Control

Conduct a comprehensive inspection of the machined part to ensure all dimensions meet specified tolerances. This quality control check verifies that the undercut aligns with design requirements, ensuring optimal part functionality.

Importance of Undercut in Modern Manufacturing

In contemporary manufacturing, the strategic incorporation of undercuts plays a pivotal role in achieving both functional and design objectives. While typically avoided in design due to complexities, undercuts become indispensable in scenarios necessitating seamless component assembly, particularly in designs requiring secure locking mechanisms sans external fasteners.

Furthermore, undercuts contribute significantly to weight reduction, a critical consideration in industries such as aerospace where every gram directly impacts fuel efficiency and payload capacity. This technique facilitates the creation of internal cavities that uphold structural integrity while minimizing excess material elsewhere.

Moreover, undercuts form integral components of hydraulic systems, serving as vital conduits for fluid dynamics. They establish essential pathways for fluids, facilitating the guided movement of liquids or gases within hydraulic mechanisms.

In certain machining processes, such as CNC turning, undercuts manifest at the terminus of threaded shafts to afford clearance for cutting tools during transitions to lower cross-sections, underscoring their versatility across manufacturing domains.

Common Types of Undercuts in Machining

Undercuts in machining typically manifest as recessed or sunken surfaces within machined components, exhibiting diverse geometric profiles tailored to specific applications. Several prevalent types of undercuts include:

T-slot Undercut

Characterized by a ‘T’ shape, T-slot undercuts are often employed in securing components with T-shaped fixtures. Machining these cavities entails a two-step process: initial slot formation with a standard end mill cutter followed by the creation of the T-shape using a specialized T-slot cutter. Customized through CNC turning, T-slot cutters typically feature shanks with cutting blades perpendicular to facilitate horizontal undercutting. Tool widths typically range from 3 to 35mm.

One-sided Undercut

Designed to target a single surface of a workpiece, one-sided undercuts are tailored for applications necessitating precision grooves to accommodate specific assemblies like seals or retaining rings. Machining these undercuts typically involves the utilization of lollipop cutters featuring single-side cutting capabilities. Clamped onto multi-axis CNC machines, lollipop cutters maneuver around the workpiece periphery to execute precise cuts where needed.

Dovetail Undercut

Primarily serving the purpose of joining two components, dovetail undercuts feature an angled blade design comprising wedge and recessed sections. This configuration ensures secure interlocking of components, with the wedge assembly firmly lodging into the recessed part. Widely utilized in the woodworking industry, dovetail cutting tools boast slightly tapered edges, typically with angles ranging between 45° and 60°, facilitating robust component integration.

Tapered Undercut

In precision engineering, a tapered undercut features a sloping surface that gradually narrows from one side to another. Its application is particularly advantageous in scenarios necessitating a snug, frictional fit between two components, such as intricate mechanical assemblies. Additionally, the aesthetic appeal of a smoothly tapering surface enhances the perceived value of the final product.

Machining tapered undercuts entails the utilization of tapered end mill cutters meticulously crafted to sculpt the gradual incline characteristic of this undercut profile, ensuring exacting precision and uniformity in the finished product.

Threaded Undercut

Threaded undercuts are integral to components requiring screwing mechanisms, exemplified by screws and bolts. These internal threads are essential for facilitating secure fastening in mechanical assemblies. Specialized thread mills and taps are employed to impart threads onto undercut parts, with thread mills adeptly navigating the helical path of thread formation suitable for both internal and external threading operations.

Spherical Undercut

Featuring a three-dimensional curved surface akin to a sphere, spherical undercuts find application in components necessitating rotary motion, exemplified by ball joints or bearings. Machining these curved undercut profiles is facilitated by ball-nose end mills characterized by their rounded tips, enabling efficient cutting of intricate curved profiles along CNC-programmed paths.

Keyway Undercut

Keyway undercuts serve the specific function of accommodating keys that secure mechanical components, preventing independent rotation. Commonly employed in shafts and rotational components like gearing systems, these undercuts are machined using specialized tools such as broaches or keyway cutters. Broaches employ a series of progressively larger teeth to execute material removal through linear motion, creating precise slots or keyways in a single pass. Conversely, keyway cutters, akin to T-slot cutters, are inserted into milling machines to rotate and meticulously remove material, forming the required slot.

Relief Undercut

Designed to mitigate stress concentrations or provide clearance around bearings or shafts, relief undercuts entail the creation of small grooves or recesses within components. Standard undercut end mills or slotting cutters are deployed to machine these profiles, meticulously traversing predetermined paths around bearings or shafts to achieve the requisite groove depth and shape, often necessitating multiple passes for optimal precision.

O-ring Groove Undercut

This specialized groove is engineered to house O-rings, facilitating a tight seal between components. Precision-cut O-ring groove undercuts, executed with specialized cutters, ensure exact dimensions and placement, crucial for preventing leaks across various applications requiring robust sealing mechanisms.

Technical Insights of Different Undercuts

In this section, we delve into the technical intricacies of various undercut types, examining their primary applications, requisite tooling, and associated challenges:

Common Applications and Examples in Industries

Despite being relatively uncommon, undercutting machining serves pivotal roles across diverse industries. Notable applications include:

Manufacturing (Mold Making): Undercuts facilitate the creation of intricate mold designs, enabling the production of complex part geometries.

Electronics: Relief undercuts in housings afford assembly flexibility, while T-slot undercuts in connectors ensure secure component attachment.

Automotive: Undercuts in gears and shafts enhance mechanical engagement, whereas o-ring undercuts guarantee leak-proof seals.

Medical Components: Barb fittings featuring undercuts securely hold tubing without necessitating additional fasteners.

Aerospace: Undercut parts contribute to weight reduction and facilitate the integration of wiring grooves without compromising structural integrity.

Challenges of Undercut Machining

Compared to surface cuts, machining undercuts presents distinct challenges, necessitating careful evaluation of design, tooling, and materials prior to commencement.

Technical Challenges in Machining Undercut

The geometric complexity of undercuts demands tools capable of navigating tight spaces and intricate shapes, often beyond the reach or efficacy of standard tools. Specialized undercutting tools like slot cutters and lollipop cutters address these requirements. However, their unique shapes and sizes pose challenges concerning tool stability, wear, and necessitate precise control during machining.

Design Considerations

Designing for undercuts mandates anticipation of how tools will access and machine desired features without compromising part integrity. Detailed planning is imperative to ensure undercuts fulfill their intended purpose while remaining manufacturable. Designers must consider factors such as tool accessibility for machining, as well as the potential impact on part functionality and assembly.

Material Considerations

Workpiece material significantly influences undercut feasibility and quality. Materials like hardened steel or ceramics may prove too hard or brittle, increasing the risk of tool breakage or part damage during machining. Tool selection is also contingent on material characteristics, necessitating choices that withstand undercut machining stresses while meeting final part performance criteria.

Tips for Perfect Undercuts

Machining undercuts presents inherent challenges; however, the following tips can mitigate some complexities:

Choose Standard Dimensions: Utilize readily available market tools for standard dimensions, minimizing the need for custom tools, which are both time-consuming and expensive.

Avoid Excessive Depth: Stick to shallow cuts within the tool’s reach, avoiding depths surpassing 1x diameter to mitigate tool failure or deflection risks.

Minimize Undercuts When Possible: While essential for specific designs, minimizing undercuts can streamline manufacturing processes, reducing stress concentration areas and manufacturing costs. Explore alternate joining methods like welding or adhesive bonding and avoid undercuts when dealing with difficult-to-machine materials such as titanium or hardened steel.
