Exploring the Advanced Capabilities and Key Components of 4-Axis CNC Machining

4-axis CNC machining centers represent a pivotal advancement over their 3-axis counterparts, heralding a transformative era in workpiece fabrication. By incorporating a fourth axis, these machines have elevated machining precision and efficiency to unprecedented levels.

Operating on four axes, these CNC machines offer a versatile array of capabilities including milling, turning, drilling, and beyond. This multifunctional capacity enables concurrent execution of diverse machining tasks. Within this exhaustive exposition, we will delve into the intricacies of 4-axis CNC machining, elucidating their features and functionalities to furnish you with a comprehensive comprehension of their operational prowess.

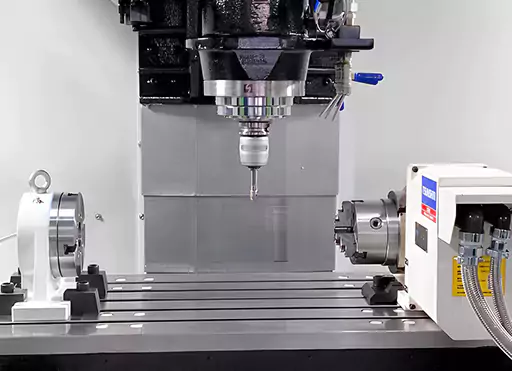

Exploring the Advanced Capabilities and Key Components of 4-Axis CNC Machining插图

Without hesitation, let us embark on an in-depth exploration to unveil comprehensive insights into these sophisticated apparatus.

Exploring the Concept of 4-Axis CNC Machining

In the realm of computer numerically controlled (CNC) machining, a 4-axis CNC machine represents a notable advancement in capability and versatility. Unlike its 3-axis counterparts, which operate along linear paths in three dimensions (X, Y, and Z), a 4-axis CNC machine introduces an additional axis of rotation, denoted as the A-axis. This rotational capability unlocks a realm of possibilities for intricate machining operations.

At its core, the operation of a 4-axis CNC machine involves the precise coordination of four axes: three for linear motion and one for rotational movement. By strategically manipulating these axes, the machine can sculpt complex geometries and intricate details with remarkable accuracy and efficiency.

The incorporation of the A-axis enables dynamic rotation of the workpiece about the X-axis, providing unprecedented flexibility in machining operations. This rotational freedom allows for the efficient removal of material from various angles and surfaces of the workpiece, enhancing the machine’s ability to tackle a diverse range of machining tasks.

However, harnessing the full potential of a 4-axis CNC machine requires meticulous programming and sophisticated software solutions. Unlike simpler CNC systems, which may suffice with basic coding methods, the complexity of 4-axis operations demands comprehensive computer-aided manufacturing (CAM) software. These advanced tools empower operators to seamlessly translate intricate 2D or 3D models into precise instructions for the CNC machine, ensuring optimal coordination and execution of machining processes.

In practical terms, the inclusion of the A-axis expands the capabilities of a single machining unit, enabling a broader spectrum of machining operations with enhanced precision and efficiency. As such, 4-axis CNC machines represent a cornerstone of modern manufacturing, empowering industries to realize intricate designs and intricate components with unparalleled accuracy and versatility.

Exploring the Advanced Capabilities and Key Components of 4-Axis CNC Machining插图1

Types of 4-Axis CNC Machining

  1. Continuous Machining: Continuous mode CNC machining enables material removal using a spindle while simultaneously rotating the workpiece about the fourth axis. Typically utilized in lathes and turning centers, this method is favored for producing symmetrical workpieces from an axial perspective. Proficiency in pre-programming is essential due to the complexity involved, particularly in synchronizing rotating and cutting operations involving multiple tools simultaneously.
  2. Index Machining: Index mode, also known as access mode or continuous mode, is a standard feature in 4-axis machines. In indexing mode, the cutting tool remains inactive until the fourth axis returns to its initial position. Precision is ensured through brakes, or “indexers,” which maintain the axis in a specified position before progressing to the next stage of shaping the workpiece.

Advantages of 4-Axis CNC Machining

  1. Enhanced Accuracy and Precision: With the capability to move in four directions (A, B, C, and D), a CNC 4-axis machine delivers more precise outputs compared to a 3-axis machine. This facilitates precise control over the cutting process, enabling the creation of complex machine shapes with greater freedom.
  2. Reduced Human Error: Each axis in a 4-axis machine is controlled by a computer, allowing operators to make quick and precise adjustments without interfering with their colleagues’ work. This minimizes the potential for human error during the machining process.
  3. Increased Portability: Unlike 3-axis machines, a 4-axis machine can operate in multiple areas simultaneously, offering greater flexibility in deployment. Its portability is advantageous, as it can be transported to various locations as needed, unrestricted by the dimensions of a fixed workshop.
  4. Innovative Design Capabilities: A 4-axis machine unlocks possibilities for manufacturing designs that a 3-axis machine cannot achieve. Computer-generated models of real-world items or structures can be translated into tangible forms, enabling the creation of intricate shapes and the realization of complex designs.

Utilizing 4-Axis CNC Machining for Project Management

Efficiently managing various projects is achievable through the utilization of 4-axis CNC machining. One notable collaborative endeavor involves the fabrication of bespoke machine parts and components. This encompasses the production of replacement parts aimed at augmenting functionality or productivity. Additionally, crafting essential components for the manufacturing of a final product, such as household appliances, falls within this domain. Several other prominent projects include:

  1. Advanced 3D modeling and additive manufacturing.
  2. Prototyping and conceptual model development.
  3. Precision crafting of customized carvings, such as hobbyist signage.
  4. Conventional 3D modeling with subsequent printing.

Furthermore, the manufacturing of unique tools or dies stands as another significant application of 4-axis CNC machining. Tailoring a tool or die to specific manufacturing techniques or applications often proves indispensable. For instance, the creation of an eccentric tool or die may be imperative for accurately finishing surfaces like the bottoms of gears.

Exploring the Advanced Capabilities and Key Components of 4-Axis CNC Machining插图2

In the preceding scenario, a four-axis CNC machining center could be directed to perform milling operations on one face of the component. Subsequently, the component could be rotated by ninety degrees, facilitating machining operations on the opposite face while maintaining the same machining configuration.

The aerospace sector also extensively employs 4-axis machining techniques. Machining processes in aerospace applications encompass turning, milling, drilling, and various other precision techniques. This machining capability proves invaluable in the fabrication of intricate gear components essential for aerospace vehicles such as aircraft and spacecraft, owing to its exceptional precision and reliability.

Optimal Selection Between 3-Axis and 4-Axis CNC Machines

When deliberating on the most suitable CNC machine for your specific requirements, a thorough understanding of your project’s intricacies and production necessities is paramount. For those contemplating the investment in CNC manufacturing services, the following considerations can aid in making an informed decision:

  1. Precision and Accuracy Requirements: Achieving meticulous precision and accuracy in parts is more effectively accomplished with 4-axis CNC machines due to their enhanced stability across all three primary axes, coupled with an additional rotational axis.
  2. Component Size: Opting for 4-axis machining is advisable when dealing with larger parts, as these machines offer greater spatial accommodation, resulting in more precise outcomes that align with the dimensions of the component.
  3. Complexity of Parts: For intricately designed components demanding heightened maneuverability during machining, 4-axis machines prove advantageous, facilitating enhanced movement and enabling the fabrication of more intricate shapes.
  4. Durability Considerations: 3-axis CNC machines are better suited for tasks necessitating lighter-duty operations and elevated milling speeds. Their design allows for the utilization of a more compact cutter head, thereby minimizing vibration during the cutting process and ensuring prolonged durability.
  5. Tooling Compatibility: Soft tooling varieties such as sanding belts, spindles, and drill jigs are most compatible with 3-axis machines. These tools exhibit a higher degree of flexibility, mitigating the risk of fractures or bending during operation, and thus are preferred for such machinery setups.

By meticulously evaluating these factors in alignment with your specific project parameters, you can make an informed decision regarding the optimal selection between 3-axis and 4-axis CNC machines, ensuring the attainment of desired precision, efficiency, and operational excellence.

Conclusion:

4-axis CNC machines represent an advanced evolution beyond traditional 3-axis counterparts. The incorporation of the A-axis facilitates rotational movement of a workpiece, expanding the machining capabilities beyond linear axes. This enhancement unlocks a wide array of possibilities in CNC machining, enabling the production of intricate patterns at improved efficiency and reduced costs.

In intricate four-axis machining, the addition of the axis necessitates preparatory blocking before cutting, while continuous axis functionality enables turning operations. However, leveraging such sophisticated machining centers demands robust software solutions to optimize CNC equipment for material shaping tasks. The adoption of 4-axis CNC machines holds the potential to supplant their 3-axis predecessors entirely, a trend increasingly observed across diverse industries.
