CNC Machining in the Aerospace Sector: A Comprehensive Overview

In the realm of aerial navigation, the intricacies of flight transcend terrestrial locomotion. The realm of flight necessitates maneuvering within Earth’s atmosphere, presenting a myriad of challenges. Be it for commercial aviation, defense, or space exploration, the integrity and functionality of aircraft components are paramount considerations.

Crafting intricate geometries for aerospace components demands a mastery of precision and finesse. The production process leaves no room for human error, requiring a seamless blend of expertise and technical acumen.

Aerospace CNC Machining

Aerospace CNC machining is a sophisticated manufacturing process integral to the production and upkeep of aircraft and space equipment. This method utilizes computer-aided tools and components to execute precise machining tasks according to programmed instructions.

In this highly specialized field, precision and reliability are paramount. Aerospace CNC machining involves the utilization of cutting-edge technology to ensure the highest standards of accuracy and quality in the fabrication of aerospace components.

CNC Machining in the Aerospace Sector: A Comprehensive Overview插图

Unlike traditional machining techniques, CNC machining offers unparalleled consistency and repeatability, making it indispensable in the aerospace industry where even the slightest deviation can have severe consequences. Moreover, whether manufacturing a single prototype or mass-producing thousands of parts, CNC machining guarantees uniformity in output, crucial for meeting the stringent demands of aerospace engineering.

What Materials Are Used In Aerospace Machining?

Aerospace machining necessitates careful selection of materials to meet stringent performance requirements. Below delineates the key materials utilized in the fabrication of aerospace components.

Aluminum and Aluminum Alloys

Renowned for their high tensile strength and lightweight properties, aluminum and its alloys are ubiquitous in aerospace machining. Aluminum 7075, featuring zinc as its primary alloying element, stands out for its exceptional fatigue strength, rendering it ideal for fabricating wings, fuselage, and support structures.

Other machinable aluminum alloys such as 4047 (cladding/filler), 6951 (fins), and 6063 (structural) find application in various aerospace components. Notably, alloys from the 6000-series are favored for their ease of machining.

Titanium and Titanium Alloys

Widely embraced in aerospace applications, titanium alloys exhibit remarkable performance under high temperatures, corrosion resistance, and favorable strength-to-weight ratios. Notable aircraft like the Airbus A380, Boeing B787, and military helicopters extensively utilize titanium components such as discs, blades, and casings.

However, machining titanium presents challenges due to its hardness, necessitating adjustments in machining parameters to mitigate tool wear and heat buildup.

Engineering Plastics

Offering exceptional attributes such as low weight, impact resistance, sealing capabilities, and chemical resistance, engineering plastics present viable alternatives to metals in aerospace machining. High-performance polymers like PEEK, polycarbonate, and Ultem find utility in crafting various aircraft parts, including cabin interiors, valve components, and insulation.

Nevertheless, adherence to stringent aerospace standards concerning toxicity, smoke, and flame resistance remains imperative when selecting engineering plastics for aerospace CNC machining processes.

Benefits of CNC Machining for Aerospace Parts

CNC machining serves as a superior choice for producing aerospace components, offering numerous advantages:

CNC Machining in the Aerospace Sector: A Comprehensive Overview插图1

Precision Engineering:

CNC machining excels in crafting intricate aerospace parts with unmatched precision, adhering rigorously to industry standards and specifications.

Lightweight Design:

Critical in aerospace, CNC machining enables the creation of lightweight yet robust components, essential for improving aircraft performance and fuel efficiency.

Error Reduction:

Compared to conventional methods, CNC machining minimizes dimensional errors, ensuring the reliability and longevity of aerospace parts.

Unrivaled Accuracy:

CNC machining guarantees exceptional accuracy and consistency, achieving precision levels within a few micrometers. This ensures seamless integration of components, minimizing operational risks.

Consistency and Efficiency:

With its automated processes, CNC machining significantly boosts manufacturing efficiency in aerospace. By reducing production time and waste, it optimizes resource utilization while upholding superior quality standards.

Machining Processes for CNC in Aerospace

The aerospace industry demands components of the utmost precision, necessitating specialized machining techniques. This requirement stems from the intricate designs and geometries prevalent in aerospace parts. Among the array of CNC machine types available, the aerospace sector primarily relies on two key machining operations:

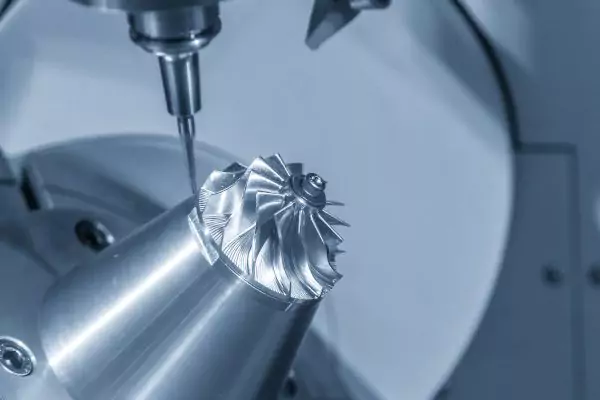

5-Axis Machining for Aerospace Components

Precision CNC Milling

This advanced machining method employs a milling machine to craft intricate parts. Operating across multiple axes including X, Y, and Z linear axes along with A and B rotational axes, this process enables the fabrication of complex shapes and geometries.

CNC Machining in the Aerospace Sector: A Comprehensive Overview插图2

While 3 or 4-axis CNC milling machines are viable for aerospace machining, 5-axis CNC milling offers superior performance. Capable of maneuvering along up to 5 directions of the workpiece in a single operation, 5-axis machines reduce errors and lead times. Moreover, their high-speed cutting tools ensure unparalleled accuracy and precision.

CNC milling plays a pivotal role in fabricating precision aerospace components such as landing gear, electrical elements, and transmissions.

Precision CNC Turning

Also referred to as subtractive machining, precision turning involves material removal to achieve the desired shape. The process entails securing material bars in a wedge shape and rotating them until the desired form is achieved.

CNC precision turning is instrumental in creating cylindrical aerospace components with meticulous detail. Notably, this process is characterized by its high precision, with computerized control over tool speed and position.

Precision turning yields essential aerospace components including screws, nuts, threads, connector pins, fasteners, and shafts.

Typical Surface Finishes for CNC Aerospace Parts

Anodizing

Anodizing is a surface treatment method that involves immersing aerospace components into an electrolyte solution, resulting in the formation of a uniform oxide layer on the surface. There are two primary types of anodizing utilized in aerospace applications: Type II and Type III.

Type II anodizing produces a decorative layer on the part’s surface, albeit relatively thin, rendering the aerospace component vulnerable to corrosion and abrasion upon exposure. Conversely, Type III anodizing generates a more robust, protective hard coat layer on the surface, enhancing the part’s durability and resistance.

Utilizing anodization as a surface finish for aluminum aerospace parts serves to safeguard against corrosion while bolstering their overall resilience.

CNC Machining in the Aerospace Sector: A Comprehensive Overview插图3

Passivation

Passivation represents a commonly employed post-processing technique within aerospace CNC machining aimed at optimizing both functionality and surface integrity of produced components. Following machining operations, surface irregularities or impurities may persist, potentially compromising long-term performance. Passivation addresses these concerns by enhancing corrosion resistance and diminishing maintenance requirements, thus ensuring prolonged operational efficacy.

Polishing

Polishing stands out as a surface treatment method particularly well-suited for aerospace applications. Employing abrasion principles, this process systematically refines surface textures, commencing with coarse iterations and progressing towards a refined, aesthetically pleasing finish. Beyond cosmetic enhancements, polishing substantially bolsters material durability, mitigating risks of structural flaws such as chipping or cracking. However, it’s noteworthy that this meticulous process entails considerable time investment and associated costs.

Powder Coating

Predominantly adopted for metallic aerospace components, powder coating enjoys widespread popularity owing to its multifaceted functionality and enduring resilience. Renowned for its scratch-resistant properties and long-lasting color vibrancy, powder-coated aerospace parts offer unparalleled durability. Furthermore, the extensive palette of available colors facilitates customization, affording manufacturers enhanced design flexibility and aesthetic refinement.

Tips for Machining Aerospace Parts

CNC machining of aerospace components demands meticulous attention to detail. Here are essential considerations to optimize your process or prepare for collaboration with an aerospace CNC machining facility.

Run Simulation Software

Prior to initiating actual production runs, leverage CNC machining simulation software to meticulously plan each step of your aerospace part manufacturing. Simulation enables comprehensive visualization of part behavior, ensuring precision throughout the production cycle.

Select Appropriate Machinery and Cutting Instruments

Not all CNC machines and cutting tools are suited for aerospace machining requirements. Optimal performance hinges on utilizing machinery and tools tailored for aerospace applications. Invest in robust, high-speed mills specifically engineered to accommodate the complexities and scale of aerospace component production.

CNC Machining in the Aerospace Sector: A Comprehensive Overview插图4

Production Segmentation for Enhanced Efficiency

Looking at a product holistically can be overwhelming, thus advocating for the segmentation of production lines. Tailoring the production system to accommodate the distinct qualities and components of the product entails dividing it into specialized parts. By meticulously selecting equipment suitable for each task, this approach streamlines aerospace part production processes.

Embrace Rigorous Design Standards

Undoubtedly, the design phase stands as a cornerstone in the product development journey. Designing with precision for machining purposes not only reduces the time required for workpiece preparation but also amplifies productivity, efficiency, and reliability.

Applications Of Aerospace CNC Machining

The aerospace sector leverages CNC machining across various critical functionalities, including:

CNC Machining in the Aerospace Sector: A Comprehensive Overview插图5

Electrical Connectors: CNC machining facilitates the fabrication of electrical connectors for aircraft systems, crucial for ensuring optimal performance while adhering to stringent weight and space constraints.

Valve Components: Essential for numerous aerospace applications, CNC-machined valve components ensure precision, reliability, and secure operations in various critical systems.

Oxygen Generation Components: CNC machining enables the production of lightweight, temperature-resistant components vital for the creation of efficient oxygen-generating safety systems in aircraft.

Shafts: Key components in aeronautical power transmission, CNC machining ensures the production of robust shafts capable of withstanding high temperatures and transmitting power effectively.

Other notable applications of aerospace CNC machining encompass the fabrication of cabin parts, wing ribs, fuselage components, actuators, motion controls, engine housings, landing gear components, discs, and filter bodies.

Elevate Your Aerospace CNC Machining Projects with BOYI

WayKen has solidified its position as a reputable entity renowned for excellence, reliability, cost efficiency, and punctuality within the CNC machining sector. In catering to the exacting demands of aerospace machining endeavors, our cadre of adept machinists and seasoned engineers collaborates seamlessly and expeditiously across all phases of product development, spanning from prototyping to full-scale production.

Acknowledging the inherent uniqueness of each project and its contextual requirements, we proffer bespoke yet pragmatic solutions tailored to every discerning client. Our offerings encompass precision machining services alongside tailored surface finishing options. Waste no time—reach out to us today, and embark on the journey of crafting your premium-grade aerospace machined component.

FAQs: Aerospace Precision Machining and Machine Shops

Q: What sets aerospace machine shops apart from general machining facilities?

A: Aerospace machine shops specialize in precision machining tailored specifically for aerospace applications. These facilities adhere to stringent quality standards and regulatory requirements mandated by the aerospace industry.

Q: Why choose BOYI for aerospace precision machining needs?

A: BOYI, under the umbrella of WayKen, boasts a distinguished reputation for quality, reliability, cost-effectiveness, and timely delivery within the CNC machining sector. Our team of expert machinists and engineers collaborates closely with clients to ensure the seamless execution of aerospace machining projects, from prototyping to full-scale production.

Q: How does BOYI ensure the quality of aerospace machined parts?

A: We implement rigorous quality control measures at every stage of the machining process. Our state-of-the-art equipment, coupled with skilled craftsmanship and adherence to industry standards, guarantees the precision and reliability of aerospace machined components.

Q: Can BOYI accommodate unique project requirements for aerospace machining?

A: Absolutely. We understand that each aerospace project comes with its own set of challenges and specifications. Our team excels in providing tailored solutions, including precision machining services and custom surface finishing, to meet the diverse needs of our clients.

Q: What is the turnaround time for aerospace machining projects with BOYI?

A: Our commitment to efficiency and punctuality ensures that aerospace machining projects are completed within agreed-upon timelines. We prioritize timely delivery without compromising on quality or precision.

Q: How can I initiate a partnership with BOYI for my aerospace machining needs?

A: Simply reach out to us today to discuss your requirements. Our team is ready to collaborate with you on crafting high-quality aerospace machined parts that meet your specifications and exceed your expectations.
