A Comprehensive Guide to Heat Sink Design and Key Considerations

In an era marked by the ubiquitous presence of electronics, our daily lives are increasingly intertwined with devices incorporating heat-generating circuitry. Within this context, effective heat management becomes paramount to ensure optimal performance and longevity of electronic components.

One prevalent strategy for managing power dissipation is the utilization of heat sinks. These specialized components or materials serve to absorb and dissipate excess heat generated during the operation of electronic systems, thereby preventing the components from surpassing their specified temperature thresholds.

Heat sinks find widespread application across various electronic devices, ranging from central processing units (CPUs) to motor drivers, where efficient heat dissipation is essential for sustained functionality.

This article aims to delve into the fundamentals of heat sinks and their design principles, encompassing the intricate calculations necessary to determine the most suitable heat sink for a given application. To illustrate these principles in practice, we will focus on the example of designing an appropriate heat sink solution for the L298 (multiwatt15) full-bridge driver chip, renowned for its propensity to generate considerable heat, particularly when operating at the upper limits of its operational range.

What are Heat Sinks?

Heat sinks are essential passive thermal management components utilized in electronics to effectively dissipate heat generated by electrical components into the surrounding environment. They play a critical role in maintaining optimal operating temperatures and preventing overheating, which can degrade performance and shorten the lifespan of electronic devices.

Comprising materials such as CNC machined aluminum or copper, heat sinks are meticulously designed to maximize surface area, thereby enhancing heat transfer efficiency. This is achieved through the incorporation of heat sink fins or pins, which significantly augment the available surface area for heat dissipation.

While air is the most common medium for heat dissipation, other fluids like water or coolant may also be employed in certain applications to further enhance cooling effectiveness. The choice of material for heat sinks, predominantly aluminum alloys due to their cost-effectiveness, hinges on factors such as thermal conductivity and operational requirements.

Although copper boasts superior thermal conductivity compared to aluminum, it is typically reserved for scenarios necessitating exceptional performance under extreme environmental conditions, where its higher cost is justified. Consequently, heat sink selection involves a delicate balance between thermal efficiency, material properties, and cost considerations to ensure optimal thermal management solutions for electronic systems.

Thermal interface materials, commonly referred to as heat sink compounds, serve the purpose of filling voids in heat sink assemblies. These voids typically exist between the fin surface of the heat sink and the heat source, such as the CPU. By applying thermal paste, these compounds effectively eliminate air gaps, ensuring optimal thermal conductivity and heat dissipation between the CPU and the heat sink. Comprised of materials like copper, zinc oxide, aluminum, silicon oil, ceramic, or graphite, heat sink compounds play a crucial role in maintaining low processor temperatures by facilitating efficient thermal contact. Given their exposure to sustained high temperatures and their operational limitations compared to mechanical heat sinks, it’s essential to adhere to recommended reapplication intervals based on their specified shelf life.

Furthermore, this article will delve into the mathematical principles governing heat sinks, illustrated through a practical example. For additional technical insights, consulting the datasheet for the L298 Dual Full-Bridge Driver is recommended.

Justification for Heat Sink Implementation

In electronic systems, thermal management is essential due to the inherent inefficiencies of electricity-conducting components, resulting in the generation of heat during operation. This excess heat poses a significant risk to component integrity, as most electronic elements have defined maximum operating temperatures, such as the maximum junction operating temperature (T op) of 130°C specified for the L298 in its datasheet. Exposure to temperatures beyond this threshold can lead to irreversible damage.

Moreover, components like the L298 will naturally produce heat during operation, without the aid of active cooling mechanisms like fans. Therefore, it becomes imperative to assess the thermal dynamics within the system, considering both the intrinsic heat generation of the component and the ambient temperature of its operating environment.

To gauge the extent of heat dissipation required, it is paramount to quantify the anticipated heat generation during standard operation and evaluate its impact on ambient temperature conditions. This assessment is crucial for ensuring optimal performance and longevity of electronic systems.

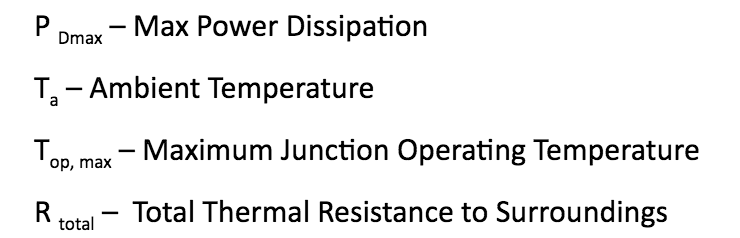

The following formula delineates the maximum allowable power dissipation, providing a framework for informed decision-making regarding the implementation of heat sink solutions:

The ambient temperature denotes the baseline temperature environment for exposed electronic components situated indoors. However, this temperature may escalate within confined spaces alongside other heat-emitting apparatuses. Moreover, exposure to direct sunlight outdoors can further elevate the temperature.

Thermal resistance stands as a crucial parameter, quantifying the extent of temperature elevation per unit of power dissipation within a component. Upon consulting the datasheet for the L298, it reveals a thermal resistance from junction to ambient of 35 ˚C/W. This indicates that with each watt of power dissipated, the chip’s temperature will increase by 35 degrees Celsius.

Substituting these values into the provided formula yields:

Given the chip’s specification of 2 amperes per channel and an input voltage of 46 volts, the total power input is calculated to be 92 watts using the formula P=I*V. Notably, not all of this power input is dissipated as heat. While a detailed analysis of heat generation will be provided subsequently, it is evident that to approach the maximum current rating, heat dissipation must exceed 3.06 watts.

Power Dissipation Analysis of the Integrated Circuit (IC)

The power dissipation within the integrated circuit (IC) is a critical parameter to consider for its reliable operation. While the complete operational load may vary, it can be precisely determined by referencing the technical specifications provided in the datasheet. As illustrated in the provided information, for instance, the L298 IC exhibits a voltage drop of 4.9 volts under the maximum continuous current of 2 amperes, and a drop of 3.2 volts at 1 ampere.

At the maximum continuous current, the power dissipated equals 9.8 watts, whereas at 1 ampere, it amounts to 3.2 watts. It’s crucial to note that running the IC at 1 ampere in ambient room temperature may lead to overheating, as this surpasses the maximum dissipation capacity of the chip itself. Consequently, employing a suitable heat sink becomes imperative even at a continuous current of 1 ampere.

Thermal Conductivity Analysis

Previously, thermal resistance was referenced within an equation. Thermal resistance serves as a crucial parameter for characterizing the efficiency of heat transfer within a component package. In the initial illustration, a thermal resistance of 35C/W was employed based on the specification outlined in the data sheet. Nonetheless, it’s essential to acknowledge that thermal resistance encompasses more than just this single value provided by the data sheet.

Examining the excerpt from the data sheet below, one can identify a separate thermal resistance value pertaining to the junction-to-case transfer.

This value elucidates the mechanism of heat transfer from the junction to the case while disregarding the heat dissipation from the case to the ambient environment. This is where the subsequent variable (Rth j-amb) assumes significance. Nonetheless, the utilization of a heat sink and thermal compound can enhance heat dissipation to the surrounding air. Additionally, forced air cooling mechanisms, such as a heatsink fan, can further augment the dissipation process. For the system to operate optimally, the combined thermal resistances must collectively be lower than the original component’s total resistance to ambient (35 C/W).

The illustration below (not representative of an L298) delineates the various contributors to thermal resistance within a heat sink assembly.

The heat dissipation process involves the traversal of several materials: heat must traverse through the casing, the thermal interface material (represented by the blue dashed line), and subsequently through the mechanical heat sink to reach the ambient air. It’s essential to clarify that, within the context of this discussion, the term “thermal compound” encompasses various thermal interface materials, including paste, grease adhesive, or pads. Considering the presence of multiple resistances, the overall thermal resistance of the system is determined by the summation of these three sources. The following equation is employed to calculate the resultant thermal resistance:

Determining Optimal Thermal Resistance for Managing Power Dissipation

Referring back to the initial equation, the maximum power dissipation was established. This equation can be reorganized to ascertain the requisite thermal resistance for a given power dissipation, as demonstrated below.

Deriving the Required Thermal Resistance for Managing Power Dissipation Applying this equation to a current draw of 1A, a thermal resistance of 33.4 ˚C/W is necessitated, whereas for a 2A current draw, a higher thermal resistance of 10.9 ˚C/W is required. This resistance will be dictated by a system comprising three components.

Choosing the Proper Heat Dissipation Solution

Among the three resistances involved, only the latter two are adjustable (thermal resistance of the case and the heat sink compound), as the component’s thermal resistance is predetermined by the manufacturer. The collective thermal resistance of the heat sink and the thermal heat sink compound can be depicted as illustrated below for both 1A and 2A applications:

The subsequent phase involves exploring various options for both thermal heat sink compounds and heat sinks. The following table presents a selection of thermal heat sink compounds along with their corresponding resistances, sourced from Wakefield Thermal Solutions.

“While the 122 Series compound offers a lower thermal resistance, all options are within or below the 0.5 C/W threshold. Consequently, the 173-9 Series is selected as the worst-case scenario. Subsequently, this thermal resistance value is subtracted from the cumulative thermal resistances to ascertain the appropriate thermal resistance for the heat sink, as demonstrated numerically below:”

Enhancing Thermal Management Solutions:

While the current setup represents a commendable starting point and instills confidence in the chosen thermal management solution, it is imperative to subject it to rigorous testing. This involves subjecting the component to its maximum intended loading while closely monitoring temperature fluctuations to ascertain alignment with anticipated outcomes.

Factors Influencing Heat Sink Performance:

Achieving desired temperatures for components may necessitate supplementary measures beyond precise heat sink design calculations. Several critical considerations influence heat sink effectiveness:

  1. Thermal Heat Sink Compound Conditions: Optimal performance requires not only high-quality thermal compounds but also precise application to ensure minimal thickness, thereby maximizing heat transfer efficiency.
  2. Natural and Forced Convection: Enhancing heat dissipation via forced convection, facilitated by heatsink fans, accelerates heat transfer rates by channeling ambient air parallel to the heat sink fins. This method significantly reduces thermal resistance and maintains lower ambient temperatures. Conversely, restricted airflow may impede natural convection, diminishing heat sink efficacy.

Key Insights:

Selecting appropriate heat sink types and materials is paramount for ensuring the reliability of design operations. The methodologies and examples outlined herein serve as foundational guidelines for enhancing thermal management strategies. Furthermore, our complimentary Heat Sink Calculator empowers users to apply these principles effectively and delve deeper into heat transfer dynamics and fluid mechanics.

Key Considerations for Optimal Heat Sink Design:

  1. Geometric Optimization: Incorporating fins or pins to augment surface area maximizes heat transfer efficiency.
  2. Material Selection: While copper boasts superior thermal conductivity, aluminum remains a cost-effective and commonly utilized alternative.
  3. Enhancements: Integrating fans or pins, exploring alternative materials, or implementing forced convection mechanisms can refine heat sink designs and enhance performance.
  4. Operational Principles: Heat sinks operate by absorbing and dissipating thermal energy through conduction, with powered fans augmenting airflow to expedite heat transfer processes.

By adhering to these principles and leveraging advanced design strategies, engineers can elevate the efficacy of thermal management systems, ensuring optimal performance and reliability across diverse applications.


Heat Sink Design

Effective heat sink design is critical for optimizing thermal management solutions in various applications. By incorporating geometric optimization techniques such as the strategic placement of fins or pins to increase surface area, engineers can enhance heat dissipation efficiency. Additionally, careful consideration of materials, airflow dynamics, and thermal conductivity properties is essential to ensure the reliability and performance of the designed heat sink.

Aluminum Heat Sink

Aluminum heat sinks are widely utilized in thermal management systems due to their cost-effectiveness and relatively high thermal conductivity. Their lightweight nature and excellent heat dissipation properties make them ideal for applications where weight and space are concerns. Engineers often choose aluminum heat sinks for their versatility, durability, and compatibility with various manufacturing processes, ensuring efficient heat transfer in diverse environments.

Copper Heat Sinks

Copper heat sinks are renowned for their exceptional thermal conductivity, making them a preferred choice for applications requiring superior heat dissipation capabilities. Despite being heavier and more expensive than aluminum counterparts, copper heat sinks offer unparalleled performance, particularly in high-temperature environments. Their ability to efficiently transfer heat away from components ensures reliable operation and extends the lifespan of electronic devices.

Copper Heatsink

A copper heatsink represents a premium thermal management solution, leveraging the remarkable thermal conductivity of copper to effectively dissipate heat from electronic components. Engineered for high-performance applications, copper heatsinks excel in environments with demanding thermal requirements, providing reliable cooling and temperature regulation. Their robust construction and efficient heat transfer capabilities make them indispensable in critical systems where reliability is paramount.

Heat Sink Material Aluminium

Aluminium stands out as a versatile and cost-effective material choice for heat sink construction. Its excellent thermal conductivity, coupled with lightweight properties, makes it well-suited for various thermal management applications. Heat sink materials aluminium offer engineers flexibility in design and manufacturing processes, enabling the creation of efficient cooling solutions tailored to specific project requirements.

DIY Heatsink

DIY heatsinks provide enthusiasts and hobbyists with the opportunity to create custom thermal management solutions for their electronic projects. By leveraging readily available materials such as aluminum or copper, DIY enthusiasts can design and fabricate heatsinks tailored to their specific cooling needs. While DIY heatsinks may lack the sophistication of commercial solutions, they offer a cost-effective and rewarding approach to enhancing thermal performance in homemade electronic devices.

Passive Heat Sink

Passive heat sinks offer a simple yet effective means of dissipating heat from electronic components without the need for additional power sources. By utilizing natural convection and thermal conductivity properties, passive heat sinks efficiently transfer heat away from hotspots, maintaining optimal operating temperatures. Their passive design makes them ideal for applications where energy efficiency, silent operation, and reliability are paramount.

Heat Sink Fins

Heat sink fins play a crucial role in maximizing surface area for heat dissipation, facilitating efficient thermal management in electronic systems. By increasing the contact area with the surrounding air, fins enhance heat transfer rates, effectively cooling electronic components. Engineers meticulously design heat sink fins to optimize airflow dynamics, ensuring optimal cooling performance in diverse applications.
