Foundations of GD&T: A Primer on Geometric Dimensioning and Tolerancing

Geometric Dimensioning and Tolerancing (GD&T), often abbreviated as GD and T, serves as a precise symbolic language and set of standards utilized by engineering and manufacturing professionals for delineating the form (geometry) and dimensions of a product. It functions as a medium for facilitating effective communication among various stakeholders involved in the manufacturing process. Originating in the 1940s, GD&T initially emerged as a rudimentary system within the US military under the MIL-STD-8 publication (Note: MIL-STD-8 has since been rescinded). Over time, GD&T has undergone substantial refinement and is now ubiquitously embraced across industries. ASME Y14.5, with its latest revision in 2018, stands as the preeminent reference standard governing the principles and applications of GD&T.

This article serves as a comprehensive reference for Geometric Dimensioning and Tolerancing (GD&T), encompassing the following key aspects:

  1. CNC Machining Tolerance Specifications
  2. Datum Establishment and Feature Referencing
  3. Fundamental Dimensional Parameters
  4. GD&T Symbol Notation
  5. Material Boundary Modifiers
  6. Feature Control Frame Representation

GD&T Overview

Geometric Dimensioning and Tolerancing (GD&T) presents an alternative methodology for defining the dimensions and tolerances of parts, diverging from the conventional coordinate measurement plus/minus tolerancing. Essentially, while engineers conceptualize parts with flawless geometry in Computer-Aided Design (CAD), real-world manufacturing inevitably introduces imperfections. Skillful application of GD&T yields enhanced quality, reduced lead times, and cost savings. This is achieved through the establishment of a standardized language facilitating precise expression of design intent and emphasis on functional interfaces for part tolerance.

The primary advantages of GD&T implementation include:

  1. Establishment of a standardized design vernacular.
  2. Facilitation of clear, precise, and consistent communication among stakeholders including customers, suppliers, and production teams.
  3. Provision of a methodology for calculating worst-case mating limits.
  4. Ensuring repeatability in production and inspection processes.
  5. Guaranteeing assembly compatibility through the utilization of qualified production parts.

Enhancing one’s proficiency in crafting drawings with well-structured GD&T (or GDT) fosters improved communication with machine shops and quality control departments, fostering alignment across all involved parties. Mastery of GD&T terminology and adept application techniques are essential for attaining top-notch manufactured components.

Key aspects to grasp in GD&T mastery encompass:

  1. CNC machining tolerances.
  2. The Datum Reference Frame.
  3. Basic Dimensions.
  4. Interpretation of GD&T Symbols.
  5. Application of Geometric Symbols to Engineering Drawings.
  6. Material Condition Modifiers.
  7. The Feature Control Frame.

In contrast to GD&T, conventional tolerancing relies on the coordinate measurement square tolerancing approach. This method entails the formation of square tolerance zones around a coordinate point, resulting in tolerance zones 57% larger than those generated by GD&T, which employs circular/cylindrical tolerance zones. Additionally, coordinate measurement systems lack clear delineation of inspection requirements or design intent, whereas GD&T meticulously defines both in a concise and unambiguous manner.

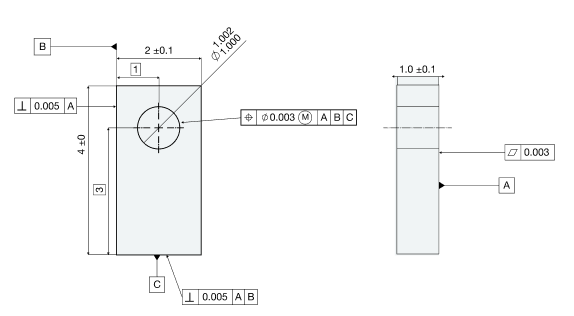

Dimensional tolerances are a fundamental aspect of Geometric Dimensioning and Tolerancing (GD&T), representing the permissible deviation in physical dimensions of a manufactured part. Understanding and appropriately managing tolerances is crucial in engineering design, as they significantly influence the functionality and performance of parts or assemblies.

Despite the apparent precision of CNC machined parts, meticulous examination reveals inherent variations in their dimensions. These variations fall within predetermined tolerance limits, acknowledging the inevitability of imperfections in manufacturing processes.

Efficient engineering practice involves optimizing tolerances to strike a balance between functionality and cost-effectiveness. While tight tolerances may be necessary in certain applications, broader tolerances are preferred whenever feasible to mitigate manufacturing, inspection, and tooling expenses.

Illustrating the scale of tolerances, consider the diameter of an average human hair, approximately 0.005 inches. Modern CNC machining techniques routinely achieve tolerances within this range, showcasing the remarkable precision of contemporary manufacturing capabilities. However, it is imperative to exercise discretion in specifying tolerances, avoiding unnecessary stringency to minimize production costs without compromising quality.

Feature Control Frames (FCF)

Feature control frames are a fundamental concept in Geometric Dimensioning and Tolerancing (GD&T), used to precisely describe the geometric characteristics of a part and their control requirements. Each feature control frame contains specific instructions for a particular feature, ensuring accurate control over it.

Within a feature control frame, the first component is the geometric characteristic symbol, indicating the type of geometric feature being controlled. Only one geometric characteristic symbol can be included in each feature control frame, necessitating multiple frames or a composite tolerance for multiple control requirements. Following this is the feature tolerance, which specifies the total tolerance for the feature without including any plus/minus values. The representation of the tolerance zone can be either a diameter or cylindrical shape, or parallel planes.

Subsequently, a material condition modifier, such as Maximum Material Condition (MMC) or Least Material Condition (LMC), may be included, along with datum feature references for establishing the Datum Reference Frame (DRF).

The purpose of feature control frames is to ensure accurate control over the geometric features of parts, facilitating precision and consistency in manufacturing and inspection processes. By adhering to the guidance provided by feature control frames, manufacturers can better understand design requirements and ensure that produced parts conform to expected geometric features and tolerance requirements.

Datums and Features

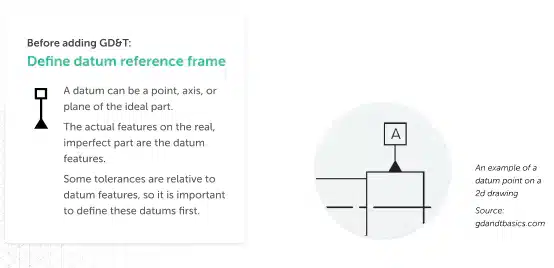

Datum Reference Frames (DRFs) serve as the foundational three-dimensional Cartesian coordinate system within design engineering, providing the framework against which the tolerances, tolerance symbols, and geometric features of a part are delineated. Widely regarded as the cornerstone of Geometric Dimensioning and Tolerancing (GD&T), the DRF profoundly influences a part’s manufacturability and inspectability. It serves as the structural backbone of the geometric system, serving as the primary reference to which all geometric specifications are tied, and from which all dimensions and geometric specifications emanate. A meticulously constructed DRF mirrors the assembly of the part, ensuring seamless integration within the manufacturing process.

Integral to the DRF concept is the establishment of Six Degrees of Freedom (DOF), comprising three translational and three rotational degrees. To facilitate the design, manufacturing, and verification processes, these DOFs must be appropriately constrained, with parts being aligned and connected to the DRF for accurate measurements, processing, and analysis.

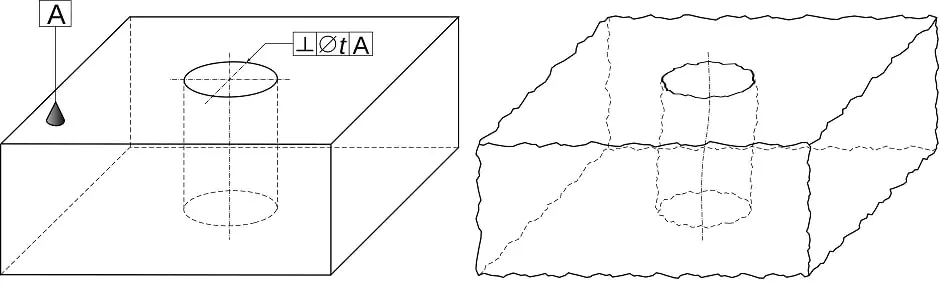

It’s imperative to discern between datums and datum features within this framework. Datums encompass points, axes (lines), planes, or combinations thereof, forming the structural components of the DRF. In contrast, datum features represent the tangible physical attributes of the part, such as holes, faces, or slots, characterized by inherent variations. The delineation between theoretical datums and real datum features underscores the fundamental distinction between idealized geometric references and actual physical manifestations.

When defining a part, engineers meticulously identify datum features critical to the functional requirements of the design, typically focusing on features interfacing with other components within an assembly. Datum features referenced within a feature control frame dictate the orientation of the part relative to the datum reference frame, following a hierarchical order of precedence.

Furthermore, the concept of a Feature of Size encompasses any geometric shape defined by dimensions such as angles, lengths, or heights, with certain features, such as holes or posts, qualifying as datums. The determination of whether a feature constitutes a Feature of Size can be assessed using the caliper rule, wherein if the caliper’s tips can enclose or make contact with the part’s surfaces, the feature qualifies as a Feature of Size. Tolerances can then be applied to these features, including orientation tolerances, which govern the angle of the axis or midplane within the tolerance zone relative to a datum.

Geometric Dimensioning and Tolerancing (GD&T) Basic Dimensions

Basic dimensions represent precise numerical values utilized to specify the form, size, orientation, or position of a component or feature within a design. These dimensions are typically delineated within a dedicated enclosure on technical drawings, although they can alternatively be referenced via standards or noted directly on the drawing. Moreover, basic dimensions can be established within the CAD model itself.

Acceptable deviations from basic dimensions are typically delineated within the GD&T feature control frame or through annotations on the drawing. It’s important to note that any default tolerances specified in the title block of a drawing do not pertain to basic dimensions. Furthermore, while basic dimensions are measured during quality inspection processes, they are not typically employed as pass/fail criteria due to the absence of associated tolerances.

Geometric Dimensioning and Tolerancing (GD&T) Symbols and Material Condition Modifiers

GD&T employs a feature-based methodology wherein engineered components are delineated into features. Geometric tolerances are applied to these features using feature control frames, employing a set of symbols to articulate the permissible tolerance. These symbols, or Geometric Characteristics, encapsulate the essence of GD&T and are fundamental to its application. The characteristics, categorized into form, orientation, location, and runout, are represented by various symbols, each with specific meanings.

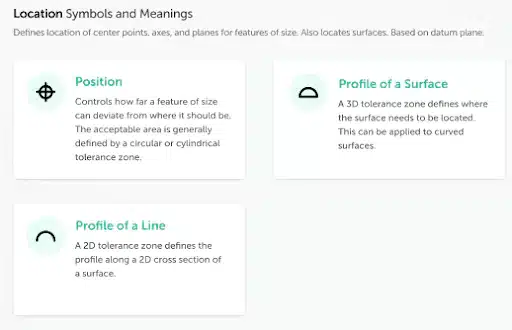

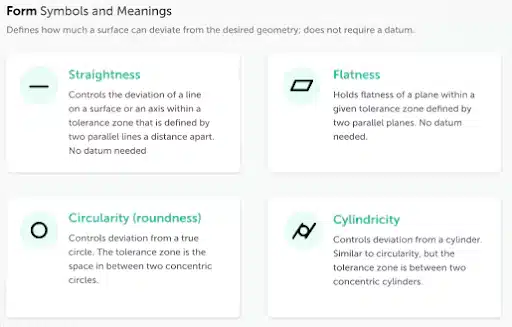

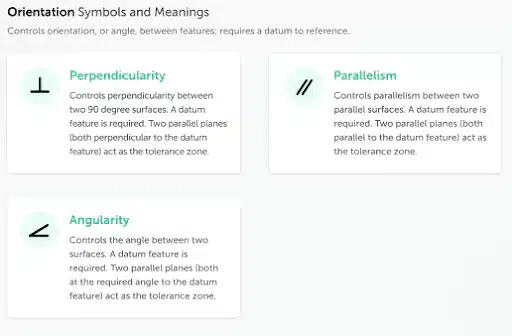

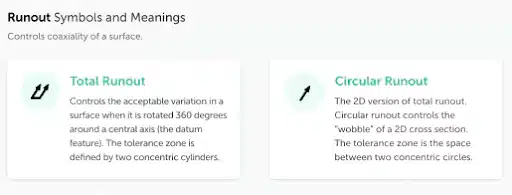

Form tolerances govern the shape of features, often refining size without necessitating a datum reference. Orientation tolerances regulate the tilt of features, always linked with basic angle dimensions and invariably referencing a datum due to their relative nature. Location tolerances dictate the positioning of features, typically associated with basic linear dimensions and capable of controlling size, form, and orientation within a single feature control frame. Runout symbols denote the allowable variation in circular features.

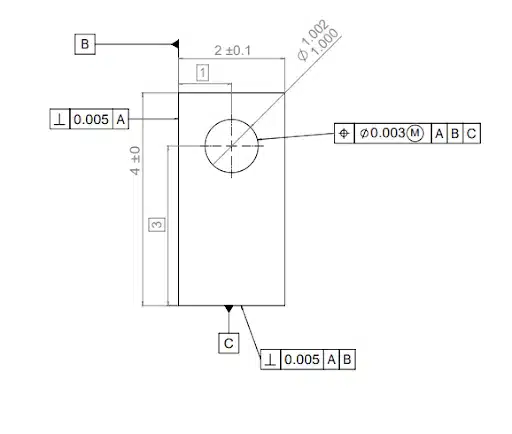

In specifying geometric controls, engineers frequently employ Maximum Material Condition (MMC) and Least Material Condition (LMC) to indicate tolerance application concerning feature size. These material condition modifiers, appended to feature control frames, extend geometric tolerance beyond the specified limits, offering bonus tolerance as features deviate from specified conditions.

Maximum Material Condition (MMC) denotes the condition where the feature contains the maximum material within the prescribed size limits, such as the largest pin or smallest hole. Conversely, Least Material Condition (LMC) refers to the condition where the feature contains the least material within the specified size limits, like the smallest pin or largest hole.

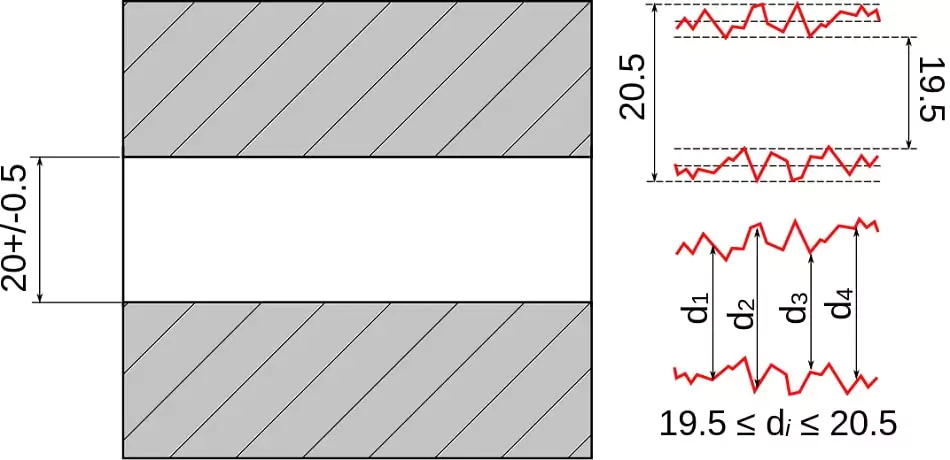

For instance, in a scenario where a pattern of holes is dimensioned at 20+/-0.5mm with a position tolerance of 0.6mm at MMC, the MMC of the hole would be 19.5mm and the LMC would be 20.5mm. The bonus tolerance is allocated based on the departure of the feature from its MMC size, allowing additional positional tolerance proportional to the deviation from the MMC size.

Geometric Dimensioning and Tolerancing (GD&T) Feature Control Frames

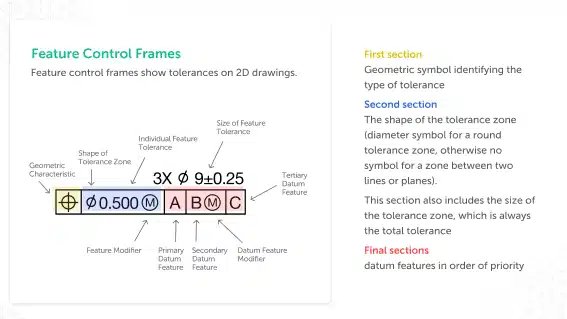

A feature control frame serves as a comprehensive instruction set governing specific geometric characteristics associated with a feature. Each frame articulates a singular directive, necessitating the use of multiple frames for concurrent requirements.

Components of a Feature Control Frame:

  1. Geometric Characteristic Symbol: The initial compartment accommodates a single symbol denoting the type of geometric control enforced on the feature. In case of multiple requirements, distinct frames or a composite tolerance are warranted.
  2. Feature Tolerance: The second section specifies the total permissible tolerance for the feature, consistently depicted as a total tolerance bound without allowance for plus/minus values.
  3. Tolerance Zone Representation: Optionally, a diameter symbol (⌀) preceding the tolerance signifies a cylindrical tolerance zone, typically employed for hole positioning. Absence of this symbol defaults to a tolerance zone depicted as parallel planes, suitable for slot or surface profile positioning.
  4. Material Condition Modifier: Subsequent to the tolerance indication, modifiers such as Max Material Condition (MMC) or Least Material Condition (LMC) may be stipulated for features of size. The absence of a modifier implies the default condition of Regardless of Feature Size (RFS), though this is not explicitly stated within the frame. Features beyond the realm of size do not permit such modifiers.
  5. Datum Feature References: Remaining compartments, if warranted, house references to datum features pertinent to the message conveyed by the feature control frame. For instance, form tolerances exclude datum feature references, whereas location tolerances typically necessitate such references.
  6. Datum Feature Hierarchy: While the alphabetical ordering of datum references bears no technical significance, their precedence follows a hierarchical sequence, with primary, secondary, and tertiary designations delineating order of importance. Commonly, Datum A serves as primary, succeeded by B and C in secondary and tertiary roles respectively.

Establishment of Datum Reference Frame (DRF): The primary, secondary, and tertiary datum features, sequentially contacted during inspection (with minimum contact points), establish the three mutually perpendicular datum planes or the DRF. Datum Simulators—manufacturing, processing, and inspection equipment—facilitate this contact, encompassing tools like surface plates, collets, three-jaw chucks, gage pins, etc.

With these GD&T guidelines elucidated, your engineering drawings are poised for submission, exhibiting meticulous definition and clarity. For further insights, refer to our supplementary resources.
