Polymers’ Glass Transition Temperature (Tg) in the Context of Plastic Injection Molding

The glass transition temperature (Tg) serves as a pivotal parameter within the realm of plastic injection molding, delineating the transition of a polymer, particularly thermoplastics, from a rigid to a semi-flexible state. Throughout the process of plastic injection molding, Tg exerts a significant influence on various facets including processing parameters, cooling kinetics, and the resultant post-molded attributes encompassing thermal, mechanical, and optical properties of the fabricated components.

This discourse delves into the intricacies of Tg elucidating the multitude of factors that impinge upon its determination. Furthermore, it elucidates the dichotomy between glass transition temperature (Tg) and melting point (Tm) — notwithstanding their classification as thermal properties of plastics, Tg and Tm delineate distinct phenomena, warranting separate consideration and analysis.

Glass Transition and Thermoplastics in Technical Terms

The glass transition phenomenon pertains to the reversible alteration in the physical attributes of specific materials, particularly thermoplastics, as they traverse a designated temperature range during heating or cooling cycles. Initially, these materials exhibit brittleness at low temperatures but undergo a transition to a ductile state upon reaching their glass transition temperature.

For instance, let’s contrast the characteristics of plastic pellets introduced into the feed hopper of an injection molding apparatus with the properties of the molten plastic material injected into the mold. While the pellets are solid and rigid, the molten substance adopts a semi-flexible, rubber-like consistency.

The glass transition temperature (Tg) denotes the threshold temperature at which a polymer initiates this transitional phase. Thermoplastics utilized in injection molding generally fall into two primary categories based on their molecular configurations:

  1. Amorphous plastics feature a disordered molecular structure devoid of crystalline regions. Examples encompass Polystyrene (PS), Polycarbonate (PC), Polysulfone (PSU), and Polyvinyl Chloride (PVC).
  2. Semicrystalline plastics possess a semi-ordered molecular arrangement characterized by ordered crystalline segments interspersed among unordered amorphous segments. Notable examples include Polyethylene (PE), Polyethylene Terephthalate (PET), Polytetrafluoroethylene (PTFE), and Polypropylene (PP).

It is essential to note that while the glass transition temperature is intimately linked with the processing of thermoplastics, it differs from the material’s melting point.

Distinguishing Between Tg and Tm: Understanding Polymer Thermal Transitions

Glass transition temperature (Tg) and melting point (Tm) represent fundamental thermal properties crucial in characterizing polymer behavior.

Tg delineates the transition of amorphous polymers or the amorphous regions within semi-crystalline polymers from a rigid, glassy state to a more pliable, rubbery state. It signifies a shift in molecular mobility rather than a distinct phase change.

On the other hand, Tm denotes the critical temperature at which the crystalline domains within semi-crystalline polymers undergo a transition from a solid state to a viscous liquid state. This transition involves the melting of the crystalline regions, leading to a notable change in material properties.

Semi-crystalline polymers exhibit a gradual softening above Tg; however, they do not exhibit true fluidic behavior until reaching the temperature range corresponding to Tm.

Typically, the melting point (Tm) of semi-crystalline polymers surpasses their glass transition (Tg) temperature. The temperature interval between Tg and Tm is often referred to as the “rubbery region” owing to the rubber-like characteristics observed when the material reaches Tg.

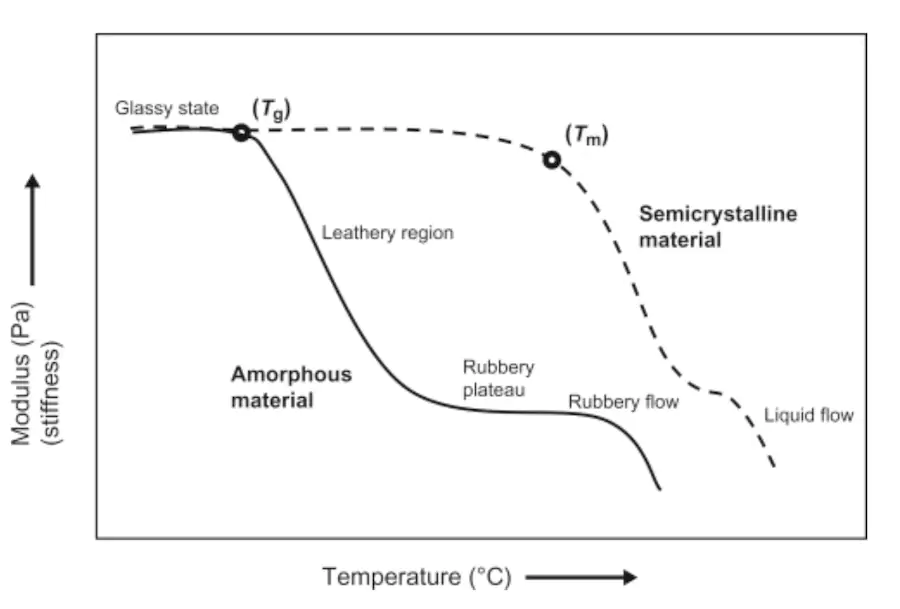

The diagram below illustrates the progression from glassy to rubbery states in amorphous and semi-crystalline polymers, highlighting the distinct thermal transitions associated with Tg and Tm.

Characterization of Thermal Transition Profiles in Amorphous and Semi-Crystalline Substrates (Image Credit: Science Direct)

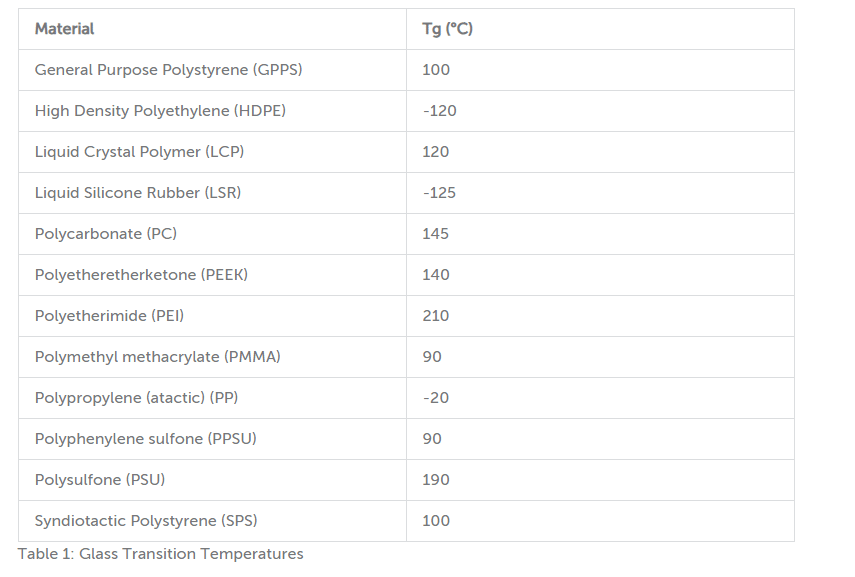

The table below lists Tg for some plastics that BOYI works with.

Why Is Tg Important in Plastic Injection Molding?

The significance of glass transition temperature (Tg) in plastic injection molding is underscored by several key factors:

  1. Mechanical Characteristics: Below the Tg threshold, polymers exhibit restricted flexibility, whereas surpassing this temperature enables polymers to undergo deformation without fracturing, thereby facilitating the molding process.
  2. Processing Parameters: Elevating the polymer temperature beyond its Tg enables injection molders to induce material flow, allowing it to conform to the contours of the mold tool effectively.
  3. Material Suitability: The choice of a thermoplastic with an appropriate Tg is crucial for ensuring the material’s ability to maintain its inherent properties while enduring operational temperatures encountered during its application.
  4. Physical Attributes: Tg exerts a profound influence on various physical properties such as thermal expansion, electrical conductivity, and optical transparency, thus dictating the characteristics of the final molded products.

Factors Influencing the Glass Transition Temperature (Tg) of Polymers

  1. Molecular Architecture – The flexibility or rigidity of a polymer’s molecular structure significantly impacts its Tg. For instance, polymers with highly flexible chains, like polyethylene, tend to exhibit lower Tg values, whereas those with rigid structures, such as polycarbonate, typically demonstrate higher Tg values.
  2. Molecular Weight – Higher molecular weight polymers generally have elevated Tg values due to increased intermolecular interactions and entanglements, resulting in stronger intermolecular forces.
  3. Incorporation of Plasticizers – The presence of plasticizers modifies polymer behavior by reducing intermolecular forces and enhancing molecular mobility, thereby lowering the Tg and imparting flexibility to the material.
  4. Thermal Processing Conditions – The Tg of a polymer can be influenced by its thermal history, with factors such as cooling rate from a molten state affecting the resultant Tg. Rapid cooling can yield different Tg values compared to slower cooling or unprocessed polymers.
  5. Chemical Cross-Linking – Introducing cross-links within the polymer structure restricts molecular motion, leading to an increase in Tg. Higher degrees of cross-linking render the polymer more rigid, consequently elevating its Tg.
  6. Crystallinity – The presence of crystalline regions within a polymer matrix restricts chain movement, contributing to an elevated Tg. The proportion and arrangement of amorphous and crystalline regions in semi-crystalline polymers dictate the overall Tg of the material.

Achieving Success in Plastic Injection Molding with BOYI

One need not possess an expertise in material science to excel in plastic injection molding. Nonetheless, as a part designer, it is imperative to grasp the concept of glass transition temperature (Tg), as it profoundly influences various aspects, ranging from processing parameters and cooling durations to post-molded characteristics such as thermal conductivity and optical clarity.

To attain optimal outcomes for your project, collaborating with seasoned professionals in plastic injection molding is indispensable. BOYI boasts a team of top-tier injection molders globally renowned for their proficiency in working with diverse materials across a spectrum of applications. Our adept professionals offer invaluable assistance in material selection and furnish comprehensive Design for Manufacturability (DFM) feedback to ensure that your designs are impeccably optimized for injection molding. Take the first step towards success by creating an account and uploading your part today!


What is the Melting Temperature of Rubber?

Rubber is a diverse material, and its melting temperature can vary depending on its composition. Natural rubber typically melts at temperatures around 180°C (356°F), while synthetic rubbers like SBR (Styrene-Butadiene Rubber) may have melting points ranging from 100°C to 120°C (212°F to 248°F), and specialty rubbers like fluororubber can have much higher melting points, up to 300°C (572°F). The melting temperature of rubber is influenced by factors such as molecular weight, cross-linking density, and any additives present.

What is the Glass Transition Temperature of PTFE?

PTFE (Polytetrafluoroethylene), commonly known as Teflon, has a notably high glass transition temperature (Tg). Its Tg is approximately -100°C (-148°F), making it an excellent choice for applications requiring exceptional thermal stability, low friction, and resistance to chemicals. This high Tg contributes to PTFE’s remarkable non-stick properties and suitability for use in extreme temperature environments, such as those encountered in aerospace, automotive, and industrial applications.

What is the Glass Transition Temperature of HDPE?

HDPE (High-Density Polyethylene) typically exhibits a glass transition temperature (Tg) below room temperature. While the exact Tg can vary depending on factors such as molecular weight and crystallinity, it is generally around -125°C (-193°F) to -120°C (-184°F). This low Tg contributes to HDPE’s excellent toughness, flexibility, and resistance to impact, making it a widely used material in various applications, including packaging, pipes, and containers.

What is the Glass Transition Temperature of PE?

PE (Polyethylene) encompasses a range of polymers with different molecular structures and properties, resulting in varied glass transition temperatures (Tg). For most common grades of PE, such as LDPE (Low-Density Polyethylene) and LLDPE (Linear Low-Density Polyethylene), the Tg typically ranges from -125°C (-193°F) to -80°C (-112°F). The Tg of PE influences its mechanical properties, thermal behavior, and processing characteristics, making it a versatile material for applications ranging from packaging films to medical devices.

What is the Glass Transition Temperature of Polyethylene?

Polyethylene (PE), a widely used thermoplastic polymer, exhibits a glass transition temperature (Tg) typically ranging from -125°C (-193°F) to -80°C (-112°F), depending on its molecular weight, crystallinity, and additives. This relatively low Tg contributes to PE’s excellent flexibility, impact resistance, and ease of processing. PE finds extensive applications in various industries, including packaging, construction, automotive, and healthcare, due to its favorable combination of properties and cost-effectiveness.
