Comprehensive Guide to PMMA Utilizing Acrylic Injection Molding Techniques

Are you contemplating the utilization of acrylic for production purposes? While the inquiry regarding the feasibility of injection molding acrylic may pose a concern in your decision-making process, rest assured that despite its glass-like appearance, acrylic possesses a degree of flexibility. With the aid of specialized acrylic injection molding machinery, achieving the desired shapes is readily achievable. For those interested in delving deeper into the intricacies of acrylic injection molding, a comprehensive guide awaits exploration. Continue reading to gain further insight.

What is Acrylic Injection Molding?

Acrylic injection molding represents a versatile manufacturing technique employed for the fabrication of diverse objects utilizing acrylic material. However, it is imperative to delve into the nuanced understanding of acrylic’s properties, its applications, and its adaptability in crafting a spectrum of products before contemplating its utilization for production requirements.

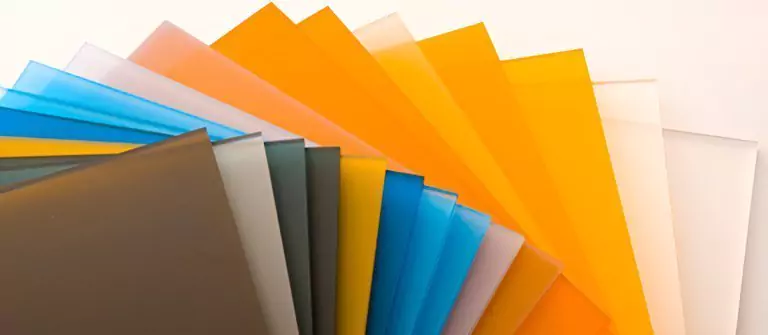

Acrylic denotes a synthetic plastic sheet comprising one or more derivatives of acrylic acid. In essence, it embodies plastic with glass-like attributes. While often mistaken for glass, acrylic is distinct in its composition and characteristics. Its prevalence in numerous household items such as crockery, cookware, and toys underscores its capacity to mimic the appearance of glass without its inherent fragility.

The inherent malleability of acrylic renders it conducive to shaping intricate product designs, a feat unattainable with traditional glass. Consequently, acrylic emerges as a preferred material for manufacturing a gamut of products, offering the flexibility to realize diverse shapes and forms aligned with specific manufacturing exigencies.

The utilization of injection molding machines amplifies the efficacy of molding acrylic products across various domains. This process entails the injection of hot materials into molds to yield the desired product shape. The simplicity and precision afforded by acrylic injection molding make it a compelling choice for achieving intricate designs and functional products with unparalleled efficiency.


PMMA, or polymethyl methacrylate, commonly referred to as plexiglass or acrylic, has undergone successive modifications due to inherent limitations. These limitations include high surface hardness, susceptibility to scratching, low impact resistance, and poor flow properties during molding.

Moreover, PMMA exhibits lower flow rates compared to materials like PS and ABS, with its melt viscosity being significantly influenced by temperature variations during processing. As an amorphous polymer, PMMA boasts a melting point exceeding 160°C and a decomposition temperature of 270°C.

Given these characteristics, it’s evident that PMMA’s shortcomings necessitate careful consideration and specialized handling in various production processes. PMMA injection molding, particularly for intricate shapes, remains a preferred choice, albeit requiring meticulous attention to detail.

By adhering to best practices and leveraging the expertise of professional service providers such as Prototool, the challenges associated with PMMA injection molding can be effectively managed while preserving its desirable properties, including temperature sensitivity, to ensure successful outcomes.

Advantages of Acrylic Injection Molding

Acrylic injection molding offers several distinct advantages, contributing to its widespread demand in the market:

  1. Enhanced Scratch Resistance: Extensive research demonstrates that acrylic molding materials exhibit superior scratch resistance compared to glass. Utilizing an injection molding machine facilitates the production of items that maintain their lustrous appearance for prolonged periods without succumbing to deterioration.
  2. Lightweight Product Fabrication: Acrylic boasts a density of 1.185 grams per cubic centimeter, significantly lower than glass with a density of 2.4 grams per cubic centimeter. This stark contrast in densities highlights how PMMA injection molding facilitates the creation of lightweight alternatives to glass products.
  3. Capability for Complex Design Fabrication: Plastic or PMMA injection molding enables the creation of intricate shapes that are beyond the reach of other molding methods, such as metal injection molding. Moreover, PMMA injection molding excels at replicating numerous identical products in terms of shape, size, and weight with remarkable precision.
  4. Enhanced Manufacturing Efficiency: PMMA injection molding surpasses metal injection molding in terms of speed, enabling the production of a higher number of units within a given timeframe using injection molding machines. This scalability allows for large-scale and batch manufacturing of acrylic products without compromising on time constraints or project deadlines. Technical assessments have revealed that injection molding machines boast lower cycle times, thereby enhancing overall output and production efficiency within the industry.
  5. Versatile Color Options: Acrylic injection molding machines offer extensive flexibility in color options by blending injected acrylic with resins, resulting in a diverse range of colorful products that cater to a broader market and consumer preferences. This color versatility sets acrylic injection molding apart from methods like metal or glass injection molding, which lack comparable flexibility.
  6. Precision Injection Molding of Transparent Plastic Components: Utilizing PMMA, commonly known as Acrylic or Plexiglass, boasting a remarkable light transmittance of up to 92%, surpassing that of conventional glass, positions acrylic molding as a paramount solution for intricate manufacturing demands. This includes but is not limited to glass, optical lenses, automotive lighting systems, transparent conduits, and various precision-molded components requiring superior clarity and precision.

Utilizing Acrylic Injection Molding in Diverse Sectors

Before delving into the operational intricacies of acrylic molding, it’s pertinent to elucidate the multifarious applications of injection molding machines, and the ensuing acrylic products that stem from their utilization:

Diverse Applications of Acrylic Injection Molding Machines: Acrylic injection molding machines find application across a spectrum of industries, including:

Fabrication of various medical apparatuses Manufacturing assorted automotive components Fabrication of industrial equipment, exemplified by protective eyewear Shaping acrylic sheets for construction-oriented structures Production of household commodities such as refrigerator drawers and plastic glassware.

Versatile Applications of Injection Molded Acrylic: Acrylic, prized for its glass-like clarity, resilience against fading, and resistance to scratches, assumes pivotal roles across a broad array of domains, including:


  1. Optical lenses
  2. Food storage containers
  3. Fabrication of refrigerator constituents
  4. Construction materials
  5. Automotive components
  6. Display units and signage
  7. Substitution for glass in various applications
  8. Incorporation into fashion and beauty accessories
  9. Integration into electronic devices
  10. Utilization as a medium for painting applications

Acrylic Specifications for Optimal PMM Injection Molding

Acrylic, a versatile thermoplastic, exhibits exceptional properties conducive to effective PMM injection molding processes. Its inherent ability to withstand multiple heating and cooling cycles without degradation renders it a prime choice for acrylic injection molding machines and facilitates recycling efforts. Furthermore, acrylic boasts scratch-resistant characteristics and a significantly lighter weight compared to glass, making it an ideal material for projects necessitating clarity, precise tolerances, consistency, and intricate designs.

Key parameters critical for achieving superior results in PMMA molding encompass:

  • Shrinkage Rate: 0.2-1%
  • Melting Point: 266°F
  • Injection Mold Temperature Range: 175-225°F
  • Flexural Strength: 13000 psi
  • Tensile Strength: 8,000-10,000 psi

These specifications underpin the optimal utilization of acrylic in PMM injection molding processes, ensuring the attainment of desired quality, durability, and performance standards.

PMMA Injection Molding Process

Plastic Material Preparation:

Prior to injection molding, meticulous preparation of the PMMA plastic is imperative. PMMA exhibits a low water absorption rate of 0.3-0.4%, demanding a humidity level below 0.1% (typically 0.04%) during molding to prevent issues such as bubbles, gas lines, and reduced clarity. Therefore, thorough drying of PMMA is necessary, typically at temperatures of 80-90°C for over 3 hours. In certain cases, recycled materials can be utilized provided they meet quality standards and are free from contamination.

Selection of Injection Molding Equipment:

Acrylic injection molding machines do not have stringent requirements specific to PMMA. However, due to PMMA’s high melt viscosity, machines require a deeper screw groove and a larger diameter nozzle hole. Additionally, PMMA must be stored in a dry hopper. Any acrylic injection molding machine meeting these basic specifications is suitable for PMMA molding operations.

Mold Design and Gate Configuration:

Mold temperature typically ranges between 60°C to 80°C, with the sprue width matching the inner taper and an optimal angle of 5° to 7°. For injecting items 4mm or larger, an angle of 7° is recommended, with a sprue diameter of 8 to 10mm and a gate length not exceeding 50mm. For thinner-walled products, runner diameters should be 6-8mm, while thicker walls require diameters of 8-12mm. Gate depth for fan-shaped and tabular gates should be 0.7 to 0.9 times the product wall thickness, with needle gate diameters ranging from 0.8 to 2mm. Smaller acrylic sizes are preferred to achieve lower viscosity.

Melting Temperature Control:

Melting temperatures for acrylic molding, determined via air injection, typically range from 210°C to 270°C, depending on the specific requirements of the application. This process involves withdrawing the rear seat, allowing the injection molding machine’s nozzle to escape the sprue bushing, and manually executing plasticization or air injection molding.

Injection Temperature Management:

Fast injection can be employed, but careful attention must be paid to prevent significant internal stress. Multi-stage injection, such as slow-fast-slow, may be necessary to mitigate issues. In areas with thick sections, injection speed should be reduced.

Dwell Time Optimization:

During the detention phase of acrylic molding, it is crucial to control residence time based on temperature. At 260°C, the residence period should not exceed 10 minutes, while at 270°C, it should be less than 8 minutes.


This comprehensive guide provides insights into the intricacies of PMMA molding. We trust it has sufficiently addressed inquiries surrounding the feasibility of injection molding acrylic materials.

Should further inquiries or detailed discussions be required, we encourage you to reach out to our team of seasoned professionals without hesitation.


Q: What is acrylic molded and how does it differ from traditional molding methods?

A: Acrylic molded refers to the process of shaping polymethyl methacrylate (PMMA), commonly known as acrylic, into desired forms using injection molding techniques. Unlike traditional molding methods, acrylic molding involves injecting molten acrylic material into a mold cavity under high pressure to produce intricate and precise components.

Q: What factors should be considered when molding acrylic?

A: Several factors are critical in acrylic molding, including maintaining proper mold temperature (typically between 60°C to 80°C), selecting the appropriate gate configuration (with recommended angles of 5° to 7°), and ensuring the correct diameter of runners and gates based on product wall thickness. Additionally, controlling residence time and injection temperature are crucial for achieving high-quality acrylic components.

Q: How is PMMA injection different from other plastic injection molding processes?

A: PMMA injection, specifically targeting polymethyl methacrylate, involves unique considerations due to its low water absorption rate and high melt viscosity. Unlike some other plastics, PMMA requires meticulous drying to prevent issues such as bubbles and diminished clarity during molding. Additionally, PMMA injection typically requires specific equipment features, such as deeper screw grooves and larger nozzle holes, to accommodate its characteristics effectively.

Q: What are the key steps in the PMMA injection molding process?

A: The PMMA injection molding process involves several essential steps. Firstly, meticulous preparation of the PMMA plastic is crucial, including drying to a humidity level below 0.1%. Next, selecting an appropriate acrylic injection molding machine with features such as a dry hopper and suitable screw grooves is necessary. Mold design and gate configuration must then be optimized based on product specifications. Controlling melting temperature, injection speed, and dwell time are critical during the actual molding process to ensure high-quality acrylic components.
