Exploring the Fundamentals, Variants, and Advantages of 5-Axis Machining

In recent years, the landscape of machining has undergone significant evolution, transitioning from conventional methodologies towards increasingly intricate and refined techniques. Among these advancements, 5-axis machining stands out as a pinnacle of contemporary machining capabilities.

Yet, the prevailing perception surrounding 5-axis CNC machining often conjures notions of elevated technological sophistication, associated costs, and operational complexities. However, a comprehensive examination reveals a more nuanced understanding of this machining modality.

In the ensuing discourse, we endeavor to dispel misconceptions and elucidate key insights into the realm of 5-axis machining, shedding light on its true nature and practical implications.

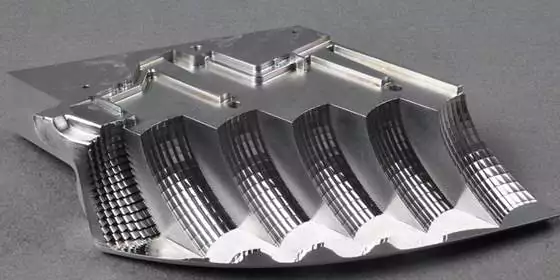

What is 5-Axis Machining?

5-axis machining represents an advanced form of subtractive manufacturing where a tool operates across five distinct axes, affording unparalleled versatility and precision. Unlike traditional machining processes, which typically operate in three axes (X, Y, and Z), 5-axis machining adds two additional rotational axes, denoted as A and B. This sophisticated technique enables the tool to approach the workpiece from virtually any angle, facilitating complex geometries and intricate part designs. By integrating multiple axes of motion into a single operation, 5-axis machining eliminates the need for manual repositioning of the workpiece between machining steps, thereby enhancing efficiency and productivity. This method is particularly advantageous for the production of intricate components demanding utmost accuracy and intricacy, making it indispensable in various industries, including aerospace, automotive, and medical device manufacturing.

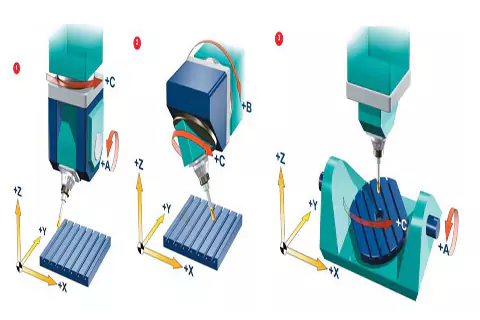

What is the Significance of “5” in 5-Axis Machining?

In the context of machining, the designation “5” in 5-axis machining refers to the augmentation of the traditional 3 axes—X, Y, and Z—by integrating two supplementary axes. Specifically, the 4th axis, denoted as the A axis, facilitates rotation around the X axis, while the 5th axis, the B axis, enables rotation around the Y axis.

The incorporation of these additional axes significantly expands the machining capabilities of a system, allowing for increased versatility in the types of operations performed and the intricacy of details achieved.

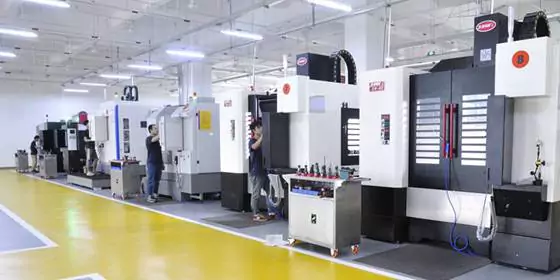

Why Employ CNC for 5-Axis Machining?

Utilizing CNC technology for 5-axis machining involves leveraging the capabilities of a sophisticated CNC machine. A 5-axis CNC machine integrates three linear axes and two rotational axes, enabling engineers and machinists to fabricate intricate parts with remarkable precision and efficiency. The addition of a 5th axis expands the machine’s capability to access up to 5 faces of a workpiece simultaneously during the manufacturing process.

The adoption of 5-axis CNC machining confers several advantages to manufacturers, including streamlined production timelines and reduced costs, ultimately expediting the time-to-market for products. It’s noteworthy that the performance attributes, such as speed and directionality, of a CNC machine are contingent upon its specific type and configuration.

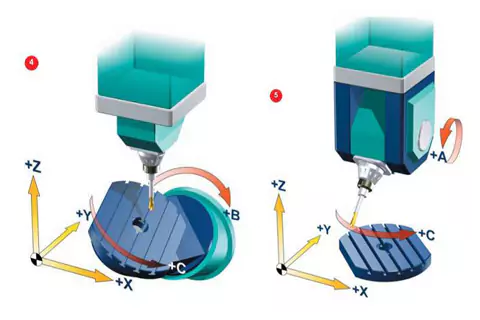

How does a 5-axis CNC machine operate?

A 5-axis CNC machine operates autonomously with limited human intervention. It employs rotary cutting implements to sculpt materials positioned on the machine’s worktable.

Subsequent to the preparatory stages, the culmination of the 5-axis CNC machining process involves positioning the material onto the platen. Commencing this intricate process necessitates the initial creation of a comprehensive CAD model, followed by its translation into CAM software. CAM, denoting computer-aided manufacturing, facilitates the conversion of the design into machine-readable instructions, typically in the form of G-code.

Following the CAM phase, the subsequent step entails the integration of the generated G-code into the 5-axis CNC machine. The pivotal significance of the G-code lies in its capacity to furnish precise directives governing toolpath navigation and tool selection throughout the machining operation.

Varieties of 5-Axis CNC Machinery

Within the realm of advanced manufacturing, 5-axis CNC machinery offers indispensable advantages in various operational contexts, significantly optimizing efficiency and augmenting existing processes. These sophisticated machines are available in several distinct configurations tailored to the diverse demands of modern industrial production. A defining characteristic among these variants lies in the configuration and alignment of their rotary axes.

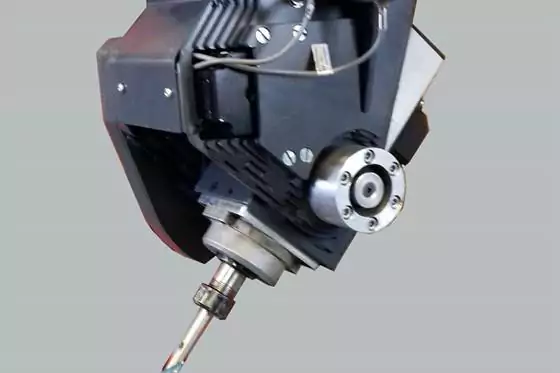

Dual-Head Configuration

Within this configuration of a CNC machine, the dual head accommodates rotary axes. Tool interference concerning the machine spindle head is minimized due to the dedicated platform for the 5-axis apex. Additionally, the fixed table facilitates workpiece stability, mitigating concerns about interference.

This design facilitates dynamic movement around a designated workpiece during machining operations. As a result, dual-head CNC machines excel in the production of large-scale components. Nonetheless, movement along the rotary axes may be constrained within this framework.

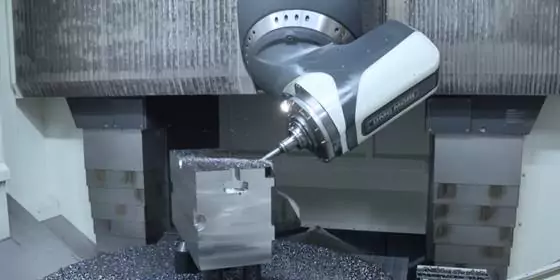

Rotary Axis Configuration

Within this configuration, two rotary axes are utilized: one integrated into the head assembly, and the other embedded within the rotary table. The revolving axis within the head assembly is spatially constrained, while the rotary axis within the table offers unrestricted movement.

An inherent advantage of this setup compared to the Head/Head configuration is the absence of concern regarding reaching predefined limits due to continuous part rotation. However, the CNC machine’s design imposes limitations on production volume as it relies on the rotary axis for workpiece fixation.

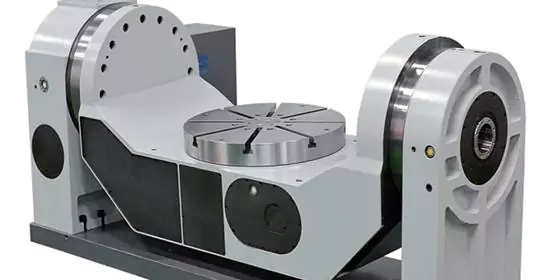

Table/Table

This configuration features rotary axes integrated into the table structure, providing a unique advantage for machining undercuts due to the unrestricted range of motion of the rotary axis. While the revolving axis imposes certain limitations, the rotary axis offers unparalleled versatility.

Moreover, this setup offers a compact work envelope, making it particularly advantageous for applications where space is constrained.

However, it’s worth noting that the absence of dedicated motors tailored for rapid movement may result in slower operation compared to alternative configurations. Additionally, the load-bearing capacity of this setup is relatively limited, rendering it less suitable for machining large or heavy components.

Advantages of 5-Axis CNC Machining

The utilization of 5-axis CNC machining introduces a multitude of benefits to various industries, showcasing enhanced efficiency and precision in manufacturing processes. Below are the primary advantages of employing 5-axis CNC machining:

Enhanced Capability for Complex Geometries

The incorporation of an additional axis in 5-axis CNC machining facilitates the seamless fabrication of intricate designs and geometric configurations. Moreover, the machinery’s adeptness in maneuvering through challenging angles and arcs, traditionally requiring multiple specialized fixtures, is significantly heightened. Furthermore, the dynamic rotational capabilities of this machinery streamline operations, enabling the attainment of intricate geometries sans the necessity for elaborate machinery or fixtures.

Enhanced Precision and Reproducibility

Traditional manual machining processes often require multiple setups to achieve optimal results, which can introduce variability and errors into the design. Conversely, 5-axis CNC milling streamlines operations by minimizing setup requirements, thereby mitigating the risk of errors and enhancing overall accuracy.

Furthermore, modern 5-axis CNC machines eliminate the need for manual repositioning of the workpiece during machining, leading to improved machining tolerances. Utilizing shorter cutting tools in certain machine configurations not only extends tool lifespan but also ensures consistent repeatability throughout the manufacturing process.

Streamlined Setup Procedures

Compared to 3-axis counterparts, setting up a 5-axis CNC machine is notably more straightforward. This simplicity stems from the machine’s capability to work on multiple surfaces concurrently, eliminating the need for multiple setups. Additionally, the single-structure design of 5-axis machines facilitates the machining of contoured parts with unparalleled efficiency.

Superior Surface Finish

The inclusion of additional axes in 5-axis CNC machining results in a finer surface finish compared to conventional methods. By bringing the workpiece closer to the cutting tool, these extra axes facilitate precise shaping, enabling the attainment of desired geometries with greater ease. Moreover, the utilization of shorter cutting tools further contributes to achieving high-quality surface finishes.

Utilizing shorter cutting tools minimizes or eliminates vibrations, thereby mitigating surface imperfections on finished products. Furthermore, employing vertical machining enhances spindle utilization for machining angled surfaces, contributing to superior surface quality.

High Production Efficiency

5-axis machining significantly reduces both machining and auxiliary time for parts. With a wide range of spindle speeds and feed rates, this technology enables powerful cutting capabilities, facilitating high-speed machining. The swift movement and precise positioning inherent to 5-axis machining, coupled with high-speed cutting processes, result in expedited turnaround times for semi-finished products.

Limitations of 5-Axis CNC Machining

While 5-axis CNC machining offers numerous benefits and plays a vital role in part manufacturing, it also presents several limitations that must be considered:

Elevated Costs

The initial investment for acquiring a 5-axis CNC machine surpasses that of a 3-axis counterpart, along with the associated software expenses. Moreover, the maintenance requirements for 5-axis machines are more intricate, adding to the overall operational costs. Hence, the higher cost involved stands out as a significant drawback of opting for 5-axis CNC machining.

Complexity in Programming

Programming for 5-axis machines differs significantly from that of 3-axis systems due to the inclusion of two rotational axes, complicating the synthesis of motion trajectories. Achieving optimal surface quality and precision necessitates intricate programming to account for each axis’s unique motion and prevent collisions or interference. As a result, programming for 5-axis machining demands a higher level of sophistication and skill.

Demand for Advanced Operator Expertise

Utilizing 5-axis CNC machining requires the expertise of technically proficient operators due to its advanced technology. Skilled operators are essential to maximize the machine’s capabilities and ensure efficient operation. However, recruiting and retaining highly skilled personnel can contribute to increased labor costs, posing a challenge for some businesses.

What types of components are amenable to fabrication through utilization of a 5-axis machining center?

The employment of a 5-axis CNC machining center facilitates the manufacture of a diverse array of components. These components typically exhibit intricate geometries and sophisticated configurations. Below enumerates several examples of components amenable to fabrication via 5-axis machining.

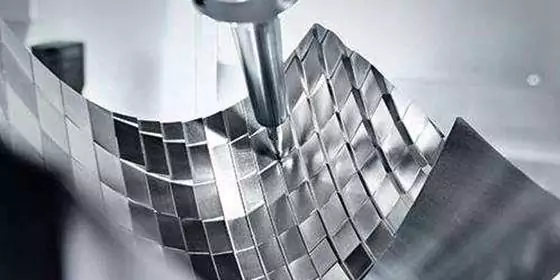

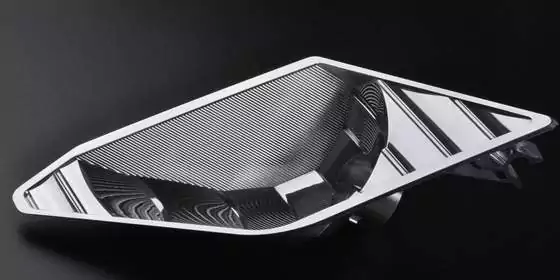

Advanced Surface Components

Advanced surface components encompass intricate geometries commonly encountered across diverse industries such as aviation, aerospace, and electronics. Traditional CNC machining struggles to achieve the complexity inherent in these surfaces. Notable examples include spherical surfaces, turbine engine blades, marine propellers, and impellers, all of which benefit from the precision offered by 5-axis machining.

Disk Components

In the realm of UAV production, 5-axis CNC machining emerges as the preferred method for crafting disk components. This technology excels in machining flat plates, particularly those featuring distributed end-face or radial perforations. Additionally, it proves invaluable in fabricating motor enclosures. The choice between horizontal and vertical machining centers depends on the orientation of these perforations, ensuring optimal machining efficiency.

Enclosed Structure Components

Manufacturing box-type components presents a challenge with conventional machining tools, necessitating intricate clamping and alignment procedures. Leveraging the multitasking capabilities of 5-axis machines streamlines the production of high-precision enclosed structures by simultaneously addressing multiple surfaces.

Irregular-Shaped Components

Irregular-shaped components, characterized by mixed points, surfaces, and contours, pose formidable obstacles to conventional machining techniques. Challenges arise primarily from the complexities of clamping pressure control during processing. However, the versatility of 5-axis machining enables efficient completion of these tasks through multi-station point processing, overcoming previous limitations.

Distinguishing 5-Axis from 3+2 Axis Machining

Many are unaware of the nuanced disparities between 5-axis machining and 3+2-axis machining, or even the variances among 3-axis, 4-axis, and 5-axis CNC methodologies. In 5-axis machining, the tool rotation occurs continuously across all five axes.

Conversely, in 3+2 axis machining, the machine executes a 3-axis program while the cutting tool remains fixed at an angle. This angle is determined by the configuration of the two rotary axes.

The primary advantage of 5-axis machining lies in its speed when compared to 3+2-axis CNC machining. This discrepancy in speed arises from the continuous operation in 5-axis machining, while 3+2 axis machining necessitates frequent machine stops and starts to optimize tool orientation.

Maximizing Performance of 5-Axis CNC Machining: Professional Strategies

Given the intricate nature of 5-axis CNC machining and the potential underutilization by operators, employing specialized strategies is essential for optimal performance. Here are key approaches to extract the utmost capability from a 5-axis CNC machine:

  1. Precision Software and Controls Selection: To commence effectively with 5-axis CNC operations, meticulous attention to software and control systems is imperative. This entails thorough analysis of design data for accuracy and completeness. Prior to translating CAD designs into CAM formats, a rigorous verification process is vital.By leveraging accurate information, discerning the selection of CAD/CAM software and controls becomes feasible, thereby ensuring seamless execution of design tasks. Utilizing simulation software aids in real-time monitoring of part dimensions, interference detection, and tool length management. Additionally, this informed approach facilitates comprehensive cost analysis to determine the most efficient and cost-effective processes for project completion.
  2. Implementation of Advanced Tool-detection Systems: Optimal tool selection is pivotal in mitigating errors and enhancing machining efficacy. Employing an advanced tool-detection system enables meticulous scrutiny of tool compatibility with the machining requirements, thereby minimizing the risk of errors and enhancing overall product quality. By integrating such systems, the likelihood of premature tool wear or breakage is significantly mitigated, consequently streamlining production costs and bolstering product integrity.
  3. Collision Avoidance Measures: Proactive measures to prevent collisions are indispensable in safeguarding both components and machinery integrity. Advanced software solutions offer preemptive collision detection capabilities, thereby preempting potential mishaps during the machining process. By simulating the machining sequence, these software tools identify collision risks in advance, facilitating prompt adjustments to design commands. Noteworthy solutions in this domain include Predator and ModuleWorks, renowned for their efficacy in collision mitigation within the 5-axis CNC environment.

By adhering to these professional strategies, manufacturers can harness the full potential of 5-axis CNC machining, thereby ensuring superior precision, efficiency, and cost-effectiveness in manufacturing operations.


Applications of 5-Axis CNC Machining Across Industries

The utilization of 5-axis CNC machining extends across various sectors, showcasing its efficacy in enhancing precision, quality, and efficiency. Here’s a breakdown of its application in key industries:

  1. Medical Sector:

In the realm of healthcare, precision is paramount to ensure the reliability and safety of medical equipment and devices. 5-axis CNC machining finds crucial applications in fabricating intricate components for research apparatus, MRI machines, surgical implants, medical instruments, and orthotic devices. Its ability to achieve exacting specifications contributes significantly to advancing medical technology and patient care.

  1. Electronics Manufacturing:

The proliferation of electronic devices demands manufacturing processes capable of producing intricate components with utmost accuracy. 5-axis CNC machining plays a pivotal role in crafting precise parts essential for electronic devices, including housings, semiconductors, hardware, metal slats, heat sinks, and printed circuit boards. Its versatility and precision cater to the evolving demands of the electronics industry, ensuring the seamless integration of technology into daily life.

  1. Energy Sector:

The energy industry relies on robust and meticulously crafted components to maintain operational integrity and prevent costly disruptions. 5-axis CNC machining is instrumental in fabricating critical parts such as drill bits, pistons, rods, cylinders, and valves, adhering to stringent quality standards. By harnessing this advanced machining technique, the energy sector enhances operational efficiency while mitigating the risk of system failures, safeguarding both investments and productivity.

  1. Aerospace Engineering:

Aerospace applications demand components with intricate geometries and precise contours to meet stringent performance requirements. 5-axis CNC machining excels in producing complex parts essential for aircraft and spacecraft, enabling manufacturers to achieve unparalleled precision and structural integrity. Its ability to navigate intricate designs and geometries empowers the aerospace industry to push the boundaries of innovation while maintaining uncompromising quality standards.

Embark on Your Journey into 5-Axis Machining Excellence with WayKen

Unveiling the power of 5-axis CNC machining heralds a new era of streamlined, expedited, and cost-efficient manufacturing processes, elevating precision and accuracy to unprecedented heights. Yet, to truly harness the full potential of this cutting-edge technology demands the expertise of seasoned professionals.

Enter WayKen, a globally renowned authority in CNC machining services. Armed with state-of-the-art 5-axis CNC machines, we deliver superlative parts marked by unrivaled quality, competitive pricing, and swift turnaround times.

In tandem with our proficiency in 5-axis machining, WayKen stands as a vanguard of technological advancement, offering an array of machining solutions tailored to your precise specifications. Should you seek guidance or seek to explore the realm of precision 5-axis machining further, our team stands ready to assist you. Simply reach out to us or request a personalized quote.

In Summary

The realm of 5-axis CNC machining beckons with the promise of crafting intricate components boasting impeccable surface finishes. While the initial investment may appear daunting, the long-term benefits in terms of both cost and time efficiencies are undeniable. Renowned for its unparalleled precision, this machining methodology finds application across diverse industries, spanning aerospace, electronics, and the medical sector alike.

FAQs: Understanding 5-Axis CNC Machining

Q: What factors influence the price of a 5-axis CNC machine?

A: The price of a 5-axis CNC machine is influenced by several factors, including its size, complexity, brand reputation, and included features such as spindle speed, tool changer capacity, and control system capabilities. Additionally, the level of customization and any optional accessories or upgrades can impact the overall cost.

Q: What advantages does a 5-axis router offer compared to traditional machining methods?

A: A 5-axis router provides several advantages over traditional machining methods, including increased versatility and flexibility in machining complex geometries and contours. It also reduces setup times and eliminates the need for multiple setups or fixtures, resulting in improved efficiency and cost savings. Additionally, the ability to access difficult-to-reach areas enhances precision and surface finish quality.

Q: Is investing in a 5-axis CNC machine worth the initial cost?

A: While the initial cost of a 5-axis CNC machine may be higher compared to traditional machining equipment, the long-term benefits often outweigh the investment. With increased productivity, reduced scrap rates, and improved part quality, 5-axis machining can lead to significant cost savings and competitive advantages in terms of speed and accuracy. Additionally, the versatility of 5-axis machines allows for expanded capabilities and the ability to tackle a wider range of projects, further enhancing their value proposition.
