A Comprehensive Guide to Casting Defects, Causes, and Remedies


Metal casting stands as a complex process, where molten metal undergoes high-pressure application, making it susceptible to various unwanted occurrences that may compromise the quality of the final products. These undesirable phenomena, known as casting defects, are a significant concern for manufacturers aiming to deliver impeccable products to their customers. In this comprehensive guide, we will delve into the intricacies of metal casting defects, exploring their types, causes, and effective remedies. By mastering the understanding of these defects, manufacturers can proactively prevent imperfections and ensure the production of high-quality components.

I. Types of Casting Defects

Casting defects come in various forms, each with its unique features, causes, and prevention methods. To master the art of casting, it is crucial to categorize these defects into four groups: metallurgical defects, defects due to heat, mold material defects, and casting shape defects. Understanding these categories provides a foundation for tackling casting challenges effectively.

II. Metallurgical Defects

Exploring Casting Holes in Porosity Defects

Porosity defects, often characterized by the presence of voids or pores within the metal structure, hold a significant impact on the overall quality of cast components. These voids, ranging from minuscule pores to larger interconnected cavities, contribute to weakened structural resistance and pose challenges in the manufacturing processes.

Understanding Porosity Defects:

Porosity defects emerge as a result of various factors intricately linked to both the metal material and the manufacturing processes involved. These factors collectively pave the way for the formation of casting holes, creating vulnerabilities in the structural integrity of the final components.

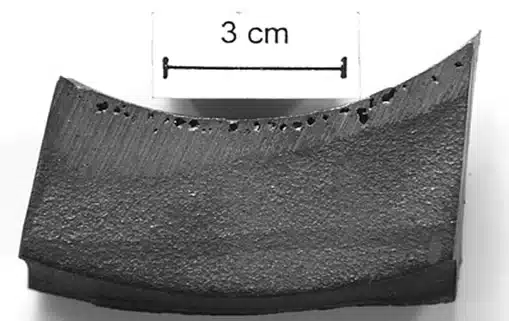

Gas Porosity:

One prominent manifestation of casting holes within porosity defects is Gas Porosity. This defect occurs internally, making it challenging to spot with the naked eye. Gas porosity is marked by the presence of small holes, voids, or pockets of air on the metal surface. The causes and remedies for gas porosity are crucial aspects in mitigating this type of casting hole defect.

Causes of Gas Porosity:

Gases Entrapped During Solidification: As molten metal cools and solidifies, gases may become trapped within the structure, creating voids.

Remedies for Gas Porosity:

  1. Proper De-gassing Techniques: Implement effective de-gassing methods before casting to minimize the presence of dissolved gases.
  2. Controlled Casting Speeds: Ensure controlled and optimized casting speeds to allow adequate degassing, reducing the likelihood of gas porosity.

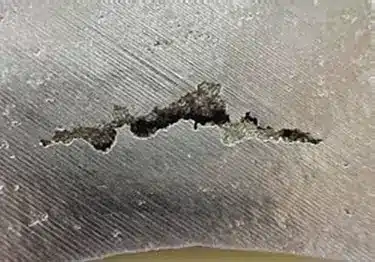

Shrinkage Porosity: Another form of casting holes in porosity defects is Shrinkage Porosity. Unlike the smooth surfaces of gas porosity, shrinkage porosity is characterized by jagged, angular edges. The causes and remedies associated with shrinkage porosity offer insights into addressing this specific casting hole defect.

Causes of Shrinkage Porosity:

  1. Uneven Metal Shrinkage During Cooling: Distorted metal shrinkage during the cooling process leads to the formation of uneven shrinkage cavities.

Remedies for Shrinkage Porosity:

  1. Optimized Casting Geometries: Utilize simple casting geometries with improved runner and gating design.
  2. Increased Metal Injection Pressure: Enhance metal injection pressure to facilitate better mold filling and reduce shrinkage porosity.

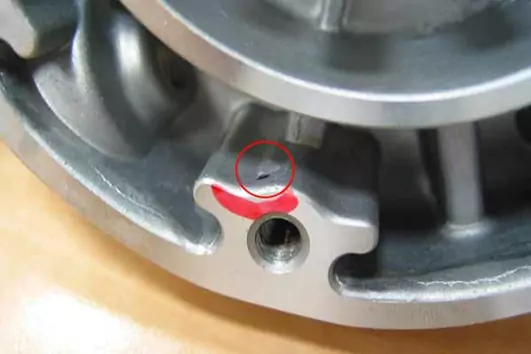

Unveiling Sinks:

Sinks in castings are depressions or irregularities on the surface, and they predominantly stem from problems associated with the metal material. These defects manifest when there is an imbalance in the cooling and solidification processes during casting, resulting in uneven distribution of material thickness.

Causes of Sinks:

  1. Uneven Wall Thickness: One of the primary contributors to sink formation is the inconsistency in the thickness of the casting walls. Variations in thickness create differential cooling rates, leading to depressions in the affected areas.
  2. Inadequate Venting: Poor venting within the die cavity can impede the escape of air and gases during the casting process. This trapped air can cause irregularities in the material, contributing to sink formation.

Effects of Sinks:

  1. Structural Weakness: Sinks compromise the structural integrity of the casting, making it susceptible to mechanical failures and reducing overall durability.
  2. Aesthetic Impact: Beyond structural concerns, sinks can mar the visual appeal of the final product, particularly in industries where surface finish is of paramount importance.

Remedies for Sinks:

  1. Optimizing Structural Design: Metallurgists can address sink issues by optimizing the structural design of the casting. This includes ensuring uniform wall thickness and minimizing abrupt changes in geometry.
  2. Improving Die Cavity Venting: Enhanced venting systems within the die cavity facilitate the efficient escape of air and gases, mitigating the risk of sink formation.
  3. Avoiding Overheating: Controlling and monitoring the temperature of the molten metal is crucial. Overheating can exacerbate uneven cooling rates, leading to the formation of sinks.
  4. Increasing Metal Injection Pressure: Adequate metal injection pressure during the casting process helps ensure uniform filling of the die cavity, reducing the likelihood of sink formation.

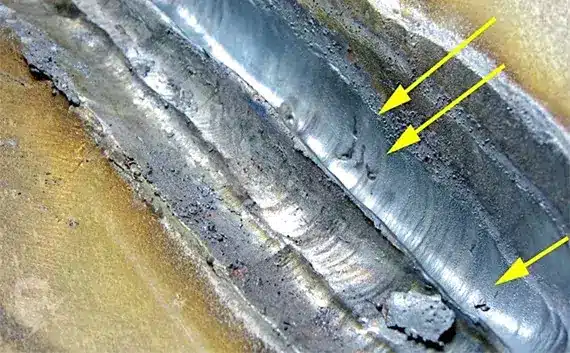

Understanding Slag Inclusions:

Slag inclusions, a type of metallurgical defect, manifest as foreign particles or residues within the metal structure. These inclusions are primarily attributed to issues related to the metal material, with improper gating systems playing a pivotal role in their occurrence.

Causes of Slag Inclusions:

  1. Improper Gating Systems: The design and implementation of gating systems significantly influence the flow of molten metal during casting. Inadequate gating systems can lead to the entrapment of slag, hindering the seamless formation of the metal structure.

Consequences of Slag Inclusions:

  1. Reduced Mechanical Characteristics: Slag inclusions compromise the mechanical properties of the metal, diminishing its strength and resilience. This makes the material more susceptible to fractures and failures under stress.
  2. Structural Integrity Concerns: The presence of slag inclusions creates weak points within the metal structure, raising concerns about the overall integrity of the component and its ability to withstand external forces.
  3. Diminished Performance: Components with slag inclusions may experience a decline in performance, particularly in applications where precision and reliability are paramount.

Remedies for Slag Inclusions:

  1. Thorough Die Cleaning: Regular and meticulous cleaning of casting dies is essential to prevent the accumulation of slag residues. This ensures a clean environment for molten metal, reducing the risk of slag inclusions.
  2. Improved Gating System Design: Upgrading the design of gating systems can enhance the flow of molten metal, minimizing the chances of slag entrapment. Proper channeling and optimization of gating structures contribute to a smoother casting process.
  3. Use of Clean Molten Metal: Ensuring the purity of the molten metal is paramount in preventing slag inclusions. Employing clean and refined metal reduces the likelihood of introducing foreign particles into the casting process.

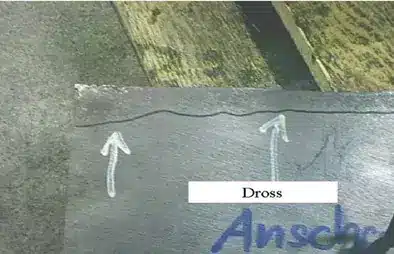

Understanding Dross:

Dross refers to the impurities and metal oxides that rise to the surface during the nonferrous casting process. This phenomenon is particularly prevalent in the casting of metals like aluminum and zinc. The primary culprits behind dross formation are thermite reactions and excessively high metal temperatures.

Causes of Dross:

  1. Thermite Reactions: Thermite reactions occur when aluminum or other highly reactive metals come into contact with metal oxides. This chemical reaction results in the production of dross, affecting the overall purity of the metal.
  2. High Metal Temperatures: Elevated metal temperatures can exacerbate dross formation by promoting the oxidation of metal components. This is especially true in nonferrous casting processes where precise temperature control is essential.

Effects of Dross:

  1. Reduced Purity: Dross contains impurities and oxides that, when mixed with the metal, reduce its purity and compromise its mechanical properties.
  2. Increased Material Loss: Metal loss due to dross not only impacts the quality of the final product but also leads to increased material wastage, affecting cost-effectiveness.

Remedies for Dross:

  1. Avoiding Stirring: Excessive stirring during the casting process can introduce additional air and impurities, exacerbating dross formation. Minimizing stirring helps maintain a more controlled casting environment.
  2. Reducing Metal Temperature: Implementing precise temperature control measures can prevent the metal from reaching excessively high temperatures, reducing the likelihood of thermite reactions and dross formation.
  3. Decreasing Melting Time: Minimizing the time the metal spends in the molten state can be an effective strategy. This reduces the exposure to high temperatures, mitigating the potential for dross formation.

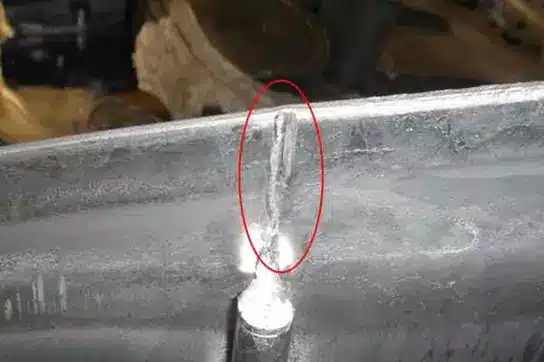

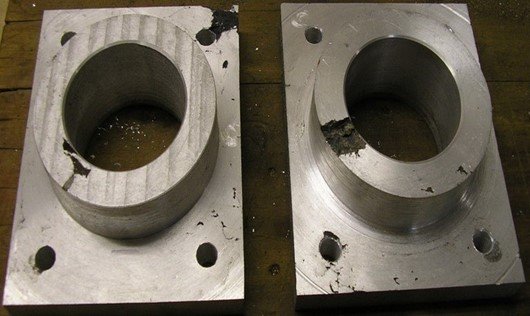

Understanding Soldering Defects:

Soldering defects emerge when molten metal adheres to the die cavity surface during the manufacturing process. This phenomenon can lead to a range of issues, affecting the integrity of the final product.

Causes of Soldering Defects:

  1. Damaged Die Cavities: The integrity of die cavities is paramount during the manufacturing process. Any damage to the die cavity surface can create opportunities for molten metal to adhere, resulting in soldering defects.
  2. Improper Ejection Mechanisms: Inadequate ejection mechanisms can lead to incomplete separation of the product from the die, causing molten metal to stick to the surface and contribute to soldering defects.

Effects of Soldering Defects:

  1. Reduced Product Quality: Soldering defects compromise the quality of the final product, affecting its overall performance and functionality.
  2. Increased Wear and Tear: Components affected by soldering defects are more prone to wear and tear, leading to a shorter lifespan and increased maintenance requirements.
  3. Diminished Aesthetic Appeal: Soldering defects can mar the visual appeal of the product, which is particularly crucial in industries where aesthetics play a significant role.

Remedies for Soldering Defects:

  1. Repairing Damages: Regular inspection and maintenance of die cavities are essential to identify and address any damage promptly. Repairing damaged die cavities can prevent molten metal from adhering and causing soldering defects.
  2. Adjusting Draft Angles: Optimizing draft angles in the design of die cavities can facilitate smoother ejection of the product, reducing the likelihood of molten metal sticking to the surface.
  3. Using High-Quality Mold Release Agents: Employing effective mold release agents is crucial to creating a barrier between the die cavity and the molten metal. High-quality mold release agents can prevent soldering defects by promoting clean separation during the ejection process.

III. Unveiling the Challenges: Defects Due to Heat in Metal Manufacturing

In the realm of metal manufacturing, the impact of heat is undeniable. As molten metal transforms into solid form, it undergoes a complex dance of temperature changes that, if not managed meticulously, can give rise to a variety of defects. In this exploration, we shine a light on Defects Due to Heat, specifically focusing on Hot Tears, Cold Shuts, and Thermal Fatigue.

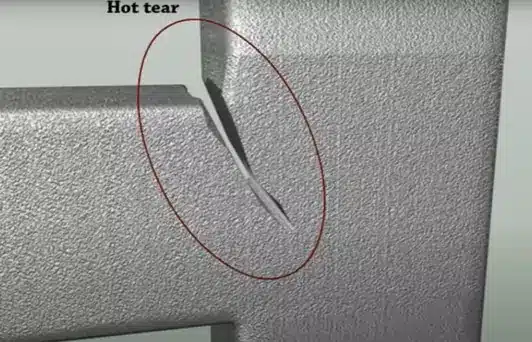

Hot Tears

Understanding Hot Tears:

Hot tears, also known as solidification cracks, manifest as fractures in metal castings due to thermally induced strains during the solidification process. As molten metal transforms into a solid state, it experiences temperature differentials that give rise to internal stresses. Hot tears emerge when these stresses exceed the tensile strength of the material, resulting in the formation of cracks.

Causes of Hot Tears:

  1. Thermal Gradients: The uneven cooling of the metal during solidification creates thermal gradients, leading to differential contraction and the development of internal stresses.
  2. Constrained Solidification: Constraints in the mold or insufficient expansion allowance can restrict the free contraction of the metal during solidification, contributing to the formation of Hot Tears.
  3. Alloy Composition: Certain alloy compositions are more prone to Hot Tears due to their specific solidification characteristics, including shrinkage and phase changes.
  4. Inadequate Fillets at Junctions: Insufficient fillets at the junctions of components can exacerbate stress concentrations, making those areas susceptible to Hot Tears.

Remedies for Hot Tears:

  1. Proper Fillet Design: Incorporating well-designed fillets at junctions helps distribute stresses more evenly, reducing the likelihood of Hot Tears.
  2. Accurate Gate Placement: Thoughtful placement of gating systems is crucial to ensure a balanced flow of molten metal, minimizing thermal differentials and stress concentrations.
  3. Optimal Cooling Rates: Employing standard solidification methods and controlling the cooling rates can mitigate the formation of thermal gradients, thereby reducing the risk of Hot Tears.
  4. Thermal Analysis: Conducting thorough thermal analysis during the design phase allows for the identification of potential hot spot areas prone to Hot Tears, enabling preemptive measures.

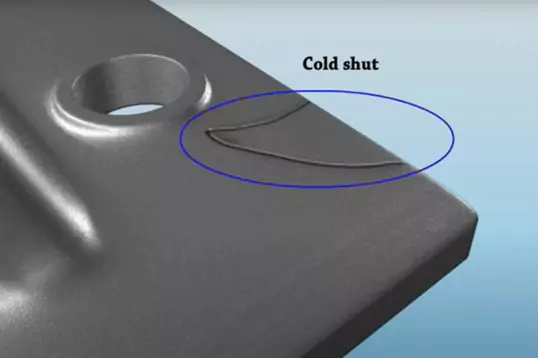

Understanding Cold Shut in Casting Defects:

Cold Shut defects manifest when there is inadequate metal flow during the casting process, resulting in the incomplete fusion of molten metal. This deficiency in fusion occurs at low temperatures, leading to the formation of a visible seam or line within the cast component.

Causes of Cold Shut Casting Defects:

  1. Improper Metal Flow: Cold Shut Casting are primarily a consequence of improper metal flow within the mold cavity. Inadequate filling or incomplete fusion can occur when the molten metal fails to merge seamlessly during solidification.
  2. Low Pouring Temperatures: Insufficient metal pouring temperatures contribute significantly to Cold Shut defects. When the molten metal is not at an optimal temperature, it may not flow smoothly, leading to incomplete fusion and the formation of cold shuts.
  3. Gating System Issues: Inefficient gating systems can exacerbate Cold Shut defects. Poorly designed or improperly placed gates can impede the proper flow of molten metal, increasing the likelihood of incomplete fusion.
  4. Gas Permeability Challenges: Inadequate gas permeability within the mold can hinder the escape of gases during the casting process. Trapped gases can interfere with metal flow, contributing to Cold Shut defects.

Effects of Cold Shut Defects:

  1. Compromised Structural Integrity: Cold Shut defects weaken the structural integrity of the cast component, making it more susceptible to fractures and failures under stress.
  2. Diminished Aesthetic Appeal: The visible seams or lines resulting from Cold Shuts can be aesthetically undesirable, impacting the overall appearance of the cast product.
  3. Increased Scrap Rates: The presence of Cold Shut defects often leads to higher scrap rates, as compromised components may not meet the required quality standards.

Remedies for Cold Shut Defects:

  1. Optimizing Gating Systems: Designing and optimizing gating systems to facilitate smooth and uniform metal flow is crucial in preventing Cold Shut defects. Well-placed gates ensure proper filling of the mold cavity.
  2. Improving Gas Permeability: Enhancing the gas permeability of the mold through the use of suitable materials or coatings helps in promoting the escape of gases, reducing the likelihood of Cold Shuts.
  3. Increasing Metal Pouring Temperature: Maintaining the molten metal at an optimal pouring temperature is essential. Adequate temperature ensures better fluidity and promotes complete fusion during solidification.

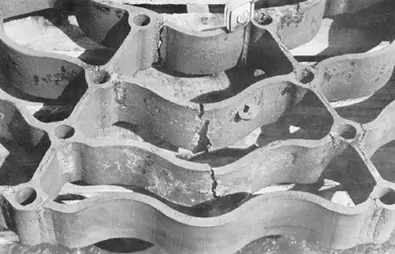

Understanding Thermal Fatigue:

Thermal fatigue is a form of material degradation that occurs due to cyclic temperature variations, particularly pronounced in processes like aluminum die casting. The repetitive heating and cooling cycles expose the material to thermal stresses, leading to the initiation and propagation of cracks. In the die casting context, aluminum components are especially susceptible to thermal fatigue due to the rapid temperature changes inherent in the casting process.

Causes of Thermal Fatigue:

  1. High Thermal Stress: The essence of thermal fatigue lies in the extreme temperature differentials experienced by the material. During the die casting process, the rapid transition from molten to solid state subjects the aluminum to high thermal stress, creating an environment conducive to thermal fatigue.

Effects of Thermal Fatigue:

  1. Crack Formation: The cyclic nature of thermal fatigue induces the formation and propagation of cracks within the material. These cracks can compromise the structural integrity of the die-cast components.
  2. Reduced Mechanical Properties: Thermal fatigue can lead to a gradual deterioration of mechanical properties, such as strength and toughness, making the material more prone to failure.
  3. Surface Defects: The presence of thermal fatigue-induced cracks on the surface of die-cast components can result in aesthetically displeasing surface defects, affecting both appearance and functionality.

Remedies for Thermal Fatigue:

  1. Providing Permissible Radii: Designing components with permissible radii and smooth transitions can help alleviate stress concentrations, reducing the likelihood of crack initiation.
  2. Reducing Temperature Gradients: Minimizing abrupt temperature differentials during the die casting process can mitigate thermal shock and, consequently, alleviate thermal fatigue. This can be achieved through optimized casting parameters and die design.
  3. Allowing Dies to Cool: Allowing sufficient cooling time for dies between casting cycles can help dissipate accumulated heat and prevent the onset of thermal fatigue. Controlled cooling processes contribute to extending the lifespan of the dies.

IV. Navigating the Realm of Mold Material Casting Defects

In the intricate world of metal casting, the choice of mold material plays a pivotal role in determining the quality of the final product. Mold Material Casting Defects can pose significant challenges, impacting the integrity and appearance of castings. In this article, we will explore several casting defects associated with mold materials, their causes, and the remedies that industry experts employ to address them.

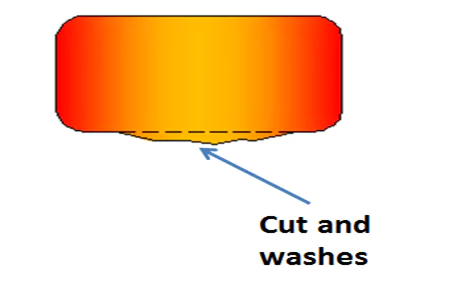

Understanding Cuts and Washes:

Cuts and washes occur when molten metal forcefully washes away the molding sand during the casting process. This phenomenon is particularly concerning as it can lead to irregularities in the final product, compromising both structural integrity and surface finish.

Causes of Cuts and Washes:

  1. High Velocity Flow: Excessive flow or turbulence of molten metal during casting can erode the molding sand, creating cuts and washes.
  2. Inadequate Gating System: Poor design of the gating system may lead to uneven metal flow, contributing to localized erosion and sand wash.
  3. Weakness in Core and Mold: Insufficient strength in the core and mold materials makes them susceptible to erosion, resulting in cuts and washes.
  4. Insufficient Binders: Lack of proper binders in the core sand can make it more prone to erosion, exacerbating the issue of cuts and washes.

Remedies for Cuts and Washes:

  1. Optimized Gating System Design: A well-designed gating system is crucial for controlling the flow of molten metal. Properly placed and sized gates can help minimize turbulence and prevent excessive erosion of molding sand.
  2. Enhanced Core and Mold Strength: Improving the strength of core and mold materials through the use of high-quality binders and additives can enhance their resistance to erosion, reducing the likelihood of cuts and washes.
  3. Additional Binders in Core Sand: Introducing additional binders to the core sand mixture can increase its cohesion and resistance to erosion, providing a more stable foundation during the casting process.
  4. Monitoring Metal Flow Velocity: Regular monitoring and control of metal flow velocity during casting can help identify and address areas of high turbulence, preventing the erosion of molding sand.
  5. Quality Control and Inspection: Implementing stringent quality control measures and inspections throughout the casting process can catch potential issues early on, allowing for timely adjustments and corrections.

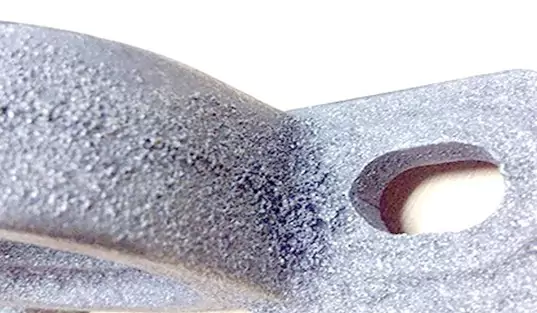

Understanding Fusion Defects:

Fusion defects, also known as sand fusion, occur when individual sand grains fuse with the molten metal, forming undesirable inclusions within the casting. These defects can compromise the structural integrity, mechanical properties, and overall quality of the final product.

Causes of Fusion Defects:

  1. Inadequate Refractoriness: Fusion defects often arise when the refractoriness of molding materials is insufficient. Sand grains may fuse with the molten metal due to the inability of the mold material to withstand the high temperatures involved in the casting process.
  2. High Metal Pouring Temperature: Elevated metal pouring temperatures can exacerbate fusion defects. Excessive heat can lead to the fusion of sand particles, resulting in compromised casting quality.
  3. Molding Material Issues: The choice and quality of molding materials play a crucial role. Inadequate materials may not provide the necessary resistance to fusion, contributing to the occurrence of defects.

Remedies for Fusion Defects:

  1. Enhancing Refractoriness: Improving the refractoriness of molding materials is a key strategy to combat fusion defects. Utilizing high-quality refractory materials that can withstand the intense heat during casting helps prevent sand grains from fusing with the molten metal.
  2. Reducing Metal Pouring Temperature: Controlling and optimizing the metal pouring temperature is an effective remedy. Lowering the pouring temperature minimizes the risk of sand fusion, promoting a cleaner and defect-free casting.
  3. Mold Coatings: Applying appropriate mold coatings can create a barrier between the molten metal and the mold surface, preventing direct contact and minimizing the chances of fusion defects.
  4. Improved Molding Materials: Investing in advanced molding materials with enhanced resistance to fusion is crucial. These materials should be carefully selected to ensure compatibility with the specific casting requirements.

Benefits of Addressing Fusion Defects:

  1. Enhanced Casting Quality: By mitigating fusion defects, the overall quality of castings is improved, ensuring that the final products meet stringent standards and specifications.
  2. Extended Tool and Equipment Life: Minimizing fusion defects contributes to the longevity of casting tools and equipment. Reduced wear and tear result in cost savings and increased efficiency in the casting process.
  3. Optimized Production Processes: Efficiently addressing fusion defects leads to smoother and more streamlined casting processes, reducing the need for rework and enhancing overall production efficiency.

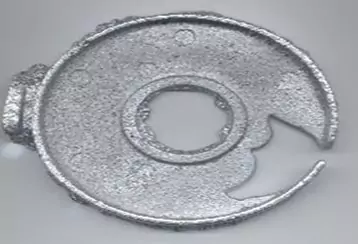

Understanding Runout:

Runout in metal casting is a deviation from the intended path, where molten metal fails to conform to the mold’s design, resulting in incomplete castings. This can lead to structural weaknesses, compromised product quality, and a host of other issues that can adversely impact the final output.

Causes of Runout:

  1. Improper Mold Design: Runouts often occur when the mold design lacks precision or is not properly aligned. The intricacies of the mold must be carefully crafted to guide the molten metal into the desired form.
  2. Insufficient Mold Support: Inadequate support for the mold during the casting process can contribute to misalignment or deformation, leading to unintended metal flow and subsequent runouts.
  3. Inadequate Pouring Techniques: The pouring of molten metal must be done with precision. Any errors in the pouring process can result in erratic metal flow, causing runouts.
  4. Poor Quality Raw Materials: The quality of raw materials used in the casting process plays a significant role. Inconsistent or impure materials can lead to irregularities in the metal’s behavior, contributing to runouts.

Remedies for Runout:

  1. Precision Mold Design: The cornerstone of preventing runouts lies in the meticulous design of molds. Engineers must ensure that the mold is perfectly aligned and capable of guiding the molten metal along the intended path.
  2. Regular Inspection Protocols: Implementing a robust system of regular inspections can catch potential issues before they escalate. Close monitoring of mold integrity, alignment, and overall casting conditions is crucial for identifying and addressing runout risks.
  3. Advanced Pouring Techniques: Employing advanced pouring techniques, such as controlled pouring rates and the use of specialized equipment, can enhance the accuracy of metal flow and reduce the likelihood of runouts.
  4. High-Quality Raw Materials: Investing in top-notch raw materials ensures consistency and purity in the molten metal. Quality assurance in the materials used is a proactive measure to prevent runouts caused by unpredictable metal behavior.

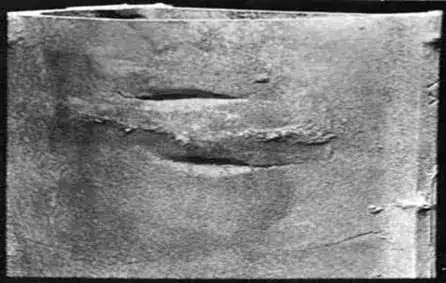

Understanding Swells:

Swells in casting refer to the unintended expansion of the mold cavity during the metal solidification process. This expansion occurs due to metallostatic forces, where the weight of the molten metal exerts pressure on the mold walls, causing them to move outward.

Causes of Swells:

  1. Metallostatic Forces: The force exerted by the molten metal on the mold walls, known as metallostatic pressure, is a primary driver of swells. As the metal solidifies, this pressure can lead to the expansion of the mold cavity.
  2. Inadequate Mold Design: Insufficient structural integrity and design flaws in the mold can contribute to swells. Mold walls must be robust enough to withstand the metallostatic forces exerted during the casting process.

Remedies for Swells:

  1. Reinforced Mold Design: Addressing swells begins with designing molds that can withstand the metallostatic pressure. Reinforced mold structures, with appropriate thickness and strength, help prevent excessive expansion.
  2. Material Selection: Choosing stronger and more resilient mold materials is crucial. High-strength alloys or materials with enhanced heat resistance can better withstand the pressures exerted during casting, reducing the likelihood of swells.
  3. Venting Systems: Implementing effective venting systems in molds allows gases to escape, reducing the chances of pressure build-up and minimizing the potential for mold expansion.
  4. Optimized Pouring Techniques: Controlling the pouring techniques during casting can help manage metallostatic forces. Pouring at a controlled rate and maintaining a consistent temperature can contribute to a more uniform solidification process.
  5. Thermal Control: Ensuring proper temperature control in both the mold and the molten metal is essential. Sudden temperature differentials can exacerbate metallostatic pressures, leading to swells.

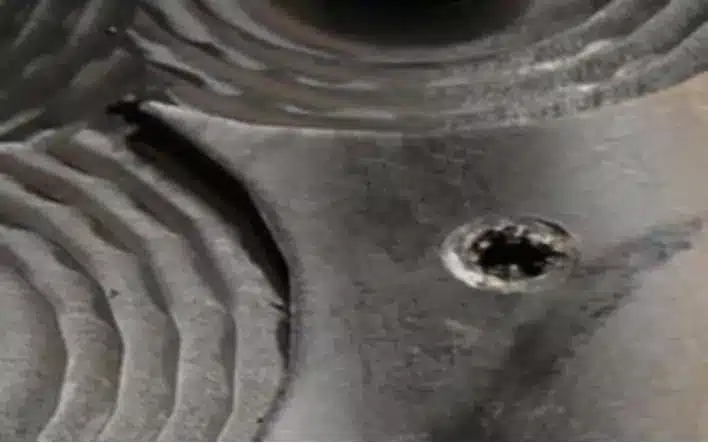

Drops: Understanding Loose Molding Sand

Drops in metal casting refer to the occurrence of loose molding sand dropping into molten metal, creating irregular projections on the cast surface. This can lead to undesirable imperfections, affecting the final product’s quality. Let’s delve into the key aspects of Drops and their potential remedies.

Causes of Drops:

  1. Loose Molding Sand: The primary cause of drops is loose molding sand that fails to adhere to the mold walls, falling into the molten metal during casting.

Effects of Drops:

  1. Irregular Projections: Drops result in irregular projections on the casting surface, impacting the overall finish and aesthetics of the final product.

Remedies for Drops:

  1. Use of Higher Strength Sand: Employing molding sand with higher strength ensures better adherence to mold walls, reducing the likelihood of drops.
  2. Proper Fluxing: Adequate fluxing of the molding sand can enhance its binding properties, preventing loose sand from entering the molten metal.
  3. Reinforcing Sand Projections: Strengthening the sand projections within the mold can provide additional support, minimizing the risk of drops.

Metal Penetration: Addressing Coarse Sand Issues

Metal penetration occurs when coarse sand leads to rough casting surfaces, affecting the final appearance and performance of the cast metal. Let’s explore the causes, effects, and remedies for Metal Penetration.

Causes of Metal Penetration:

  1. Coarse Sand: The use of coarse sand in casting can result in metal penetration, as the larger grains create rough surfaces.

Effects of Metal Penetration:

  1. Rough Casting Surfaces: Metal penetration leads to rough and uneven casting surfaces, diminishing the quality of the final product.

Remedies for Metal Penetration:

  1. Small-Sized, High-Strength Grain: Using small-sized grains with high strength can prevent metal penetration, ensuring a smoother casting surface.
  2. Ensuring Hard Ramming: Properly ramming the molding sand ensures a compact and firm mold, reducing the likelihood of metal penetration.

V. Navigating Casting Shape Defects in Metallurgy

In the realm of metallurgy, the journey from molten metal to the final cast product is intricate and precise. However, the path is not without challenges, and one significant hurdle is Casting Shape Defects. In this exploration, we’ll unravel the nuances of two prominent casting shape defects: Mismatches and Casting Flashing.

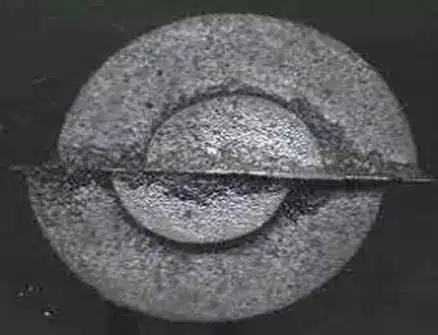

Mismatches in casting shape are a result of mold or core misalignment during the casting process. This misalignment can lead to irregularities in the final shape of the cast product, posing challenges to its functionality and structural integrity. Understanding the causes and implementing effective remedies are crucial in overcoming mismatches.

Causes of Mismatches:

  1. Pattern Misalignment: Inaccurate placement or misalignment of the casting pattern can result in mismatches in the final product.
  2. Molding Tools: The use of inappropriate or worn-out molding tools can contribute to misalignments during the casting process.
  3. Mold Placement: Improper placement of the mold can lead to uneven distribution of molten metal, causing shape discrepancies.

Remedies for Mismatches:

  1. Proper Pattern Alignment: Ensuring accurate alignment of casting patterns before the casting process is fundamental in preventing mismatches.
  2. Quality Molding Tools: Regular maintenance and use of high-quality molding tools can significantly reduce the risk of mold misalignment.
  3. Accurate Mold Placement: Precision in mold placement is essential for uniform metal distribution, minimizing the chances of shape defects.

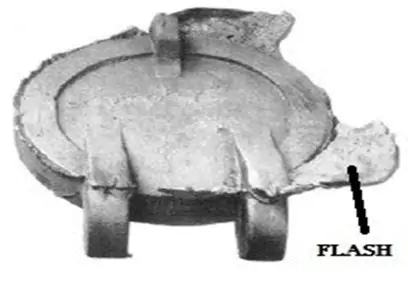

Casting Flashing:

Casting Flashing defects manifest as excess materials along parting lines of the cast product. While not as detrimental as some defects, flash can impact the product’s aesthetics and, in some cases, functionality. Addressing the root causes and adopting effective remedies are key to mitigating flash-related challenges.

Causes of Flash:

  1. Casting Parameters: Inadequate control over casting parameters, such as pressure and temperature, can contribute to the formation of excess flash.
  2. Machine Maintenance: Irregular maintenance of casting machinery can lead to wear and tear, increasing the likelihood of flash defects.
  3. Die Cavity Cleaning: Accumulation of residues in die cavities can result in irregularities along parting lines during the casting process.

Remedies for Flash:

  1. Adjusting Casting Parameters: Fine-tuning casting parameters to optimal levels helps control the flow of molten metal and minimizes flash formation.
  2. Regular Machine Maintenance: Periodic maintenance of casting machinery ensures smooth operations and reduces the risk of flash-related defects.
  3. Proper Die Cavity Cleaning: Thorough cleaning of die cavities before each casting cycle prevents the accumulation of residues that contribute to flash.

BOYI: Your Trusted Die Casting Services Partner

Having gained insights into various casting defects and their prevention methods, choosing the right service provider is crucial for successful die casting. When it comes to die casting needs, opting for an experienced partner is paramount, and BOYI stands as your optimal choice.


Our team of experts possesses extensive skills and experience in the casting process, particularly in die casting. With BOYI, you can rest assured that our die casting services go beyond meeting your expectations; they set a new standard for excellence.

In conclusion,

the intricacies of the metal casting process can lead to diverse surface defects. Enhancing your comprehension of these casting imperfections provides a greater opportunity for quality control in castings. A thorough awareness of casting defects and their respective remedies is paramount in guaranteeing the exceptional quality of your castings.

While it’s acknowledged that certain defects may be deemed normal under specific circumstances, engaging with seasoned die casting professionals becomes crucial in preventing or addressing them effectively. Therefore, collaborating with a reliable partner committed to quality control inspections is imperative. For any questions or inquiries regarding die casting, feel free to reach out to BOYI today.

Leave a Reply
