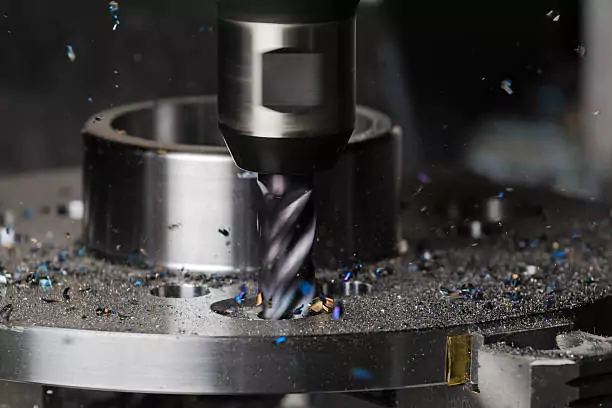

Milling holds a central position within the manufacturing industry, exerting significant influence over the production of a wide array of products and components integral to our daily lives. Particularly in scenarios where precision reigns supreme, a nuanced comprehension of the variances between distinct milling methodologies becomes imperative. Among these methodologies, a notable differentiation emerges between conventional milling (also known as up milling) and climb milling (alternatively referred to as down milling).
Definitions of Conventional and Climb Milling Techniques
Within the domain of milling operations, the direction of rotation for the milling cutter typically remains constant, while the direction of the feed may vary. This dichotomy has given rise to two predominant milling methodologies: conventional milling, also known as up milling, and climb milling, frequently denoted as down milling.
Conventional Milling (Up Milling)
Conventional milling denotes a technique wherein the milling cutter rotates in alignment with the feed motion of the workpiece. Put simply, the cutter revolves counter to the feed direction.
Climb Milling (Down Milling)
Conversely, climb milling involves the milling cutter spinning in opposition to the movement of the workpiece. Consequently, the cutter rotates congruent with the feed direction.
Note: It is imperative to recognize that the classification of a milling operation as conventional or climb milling hinges on the direction of the workpiece feed, rather than that of the cutter’s feed.
Efficient Machining Techniques
When executing the external profiling of a workpiece (with the cutter rotating clockwise):
Clockwise feed along the outer contour denotes conventional milling. Counter-clockwise feed along the outer contour signifies climb milling.
Conversely, during the internal profiling of a workpiece (assuming the cutter rotates clockwise):
Counter-clockwise feed along the inner contour indicates conventional milling. Clockwise feed along the inner contour indicates climb milling.
Distinguishing Characteristics of Conventional and Climb Milling
Milling processes, whether employing conventional or climb techniques, exhibit distinct attributes that influence machining outcomes. A nuanced comprehension of these characteristics empowers manufacturers to make judicious selections tailored to the requirements of specific machining tasks.
Attributes of Conventional Milling (Up Milling)
Conventional milling entails a progressive reduction in chip thickness throughout the cutting process, culminating in zero chip thickness at the termination of the cut. This progressive reduction mitigates frictional forces, averting premature contact between the cutting edge and the workpiece surface. Additionally, the transition from thick to thin chips in conventional milling diminishes the propensity for burr formation when machining ductile materials.
As depicted in the accompanying diagram:
- The vertical force (FV) exerted downwardly on the workpiece aids in its secure fixation within the clamping mechanism.
- The horizontal force (FH) operates in tandem with the workpiece’s feed direction. However, this alignment may pose challenges, particularly in addressing clearance issues within the machine table’s lead screw. Under substantial cutting forces, chatter may ensue, compromising surface finish.
Attributes of Climb Milling (Down Milling)
Climb milling initiates with zero chip thickness, gradually escalating as the cutter tooth engages the workpiece until the conclusion of the cut. The initial engagement of the cutter tooth involves skidding on the pre-machined surface, which can inadvertently harden the surface, potentially degrading its integrity and accelerating cutter tooth wear.
As depicted in the provided diagram:
- The vertical force (FV) exerts an upward influence on the workpiece, potentially compromising its clamping integrity.
- Conversely, the horizontal force (FH) acts in opposition to the workpiece’s feed direction. This orientation is advantageous as it aids in rectifying any clearance discrepancies within the machine table’s lead screw, ensuring consistent feed rates and minimizing vibrational tendencies.
Enhancing Professionalism in End Face Milling Strategies
End face milling, a critical facet within the realm of machining, encompasses a spectrum of techniques contingent upon the spatial alignment of the milling cutter vis-à-vis the workpiece. Profound comprehension of these methodologies and their ramifications is pivotal in attaining superlative outcomes.
Symmetrical Milling Approach
Symmetrical milling denotes the scenario where the workpiece is precisely aligned with the milling cutter’s central axis. This method engenders a uniform chip thickness throughout the milling operation, thereby culminating in a substantiated average cutting thickness.
Asymmetrical Conventional Milling (Up Milling)
Asymmetrical conventional milling, or up milling, entails offsetting the milling cutter from the symmetrical plane of the workpiece. As the cutter disengages from the material, chip thickness reaches its nadir. This technique finds particular resonance with materials like stainless steel, characterized by a high deformation coefficient and susceptibility to work hardening.
Asymmetrical Climb Milling (Down Milling)
In asymmetrical climb milling, the milling cutter is similarly shifted from the workpiece’s symmetrical plane. However, as the cutter penetrates the material, chip thickness is minimized. This engenders a diminished initial impact, uniform cutting force, and a seamlessly refined milling process. Such an approach is especially efficacious in machining carbon steel and high-strength low-alloy steel.
Adhering to the “Thick to Thin” Milling Principle
A cardinal tenet governing milling operations is the modulation of chip formation. The spatial orientation of the milling cutter emerges as a pivotal determinant in this regard. It is imperative to ensure the formation of a thick chip upon the cutter’s ingress into the material, followed by a transition to a thinner chip during its egress. This adherence to the “thick to thin” principle confers stability to the milling process, while simultaneously minimizing chip thickness upon the cutter’s exit. This methodology not only elevates the caliber of the end product but also augments the longevity of milling tools.
Guidelines for Optimal Milling Technique Selection
Efficient milling technique selection is pivotal for achieving desired machining outcomes. The decision between conventional milling (up milling) and climb milling (down milling) hinges on a multitude of factors, encompassing material properties and specific machining intricacies.
Material Characteristic Considerations
Standard Machining Parameters: When operational conditions permit, conventional milling emerges as the preferred choice. This preference is underscored by its potential to prolong milling cutter lifespan and enhance the surface integrity of machined components. Addressing Surface Imperfections: In scenarios where workpiece surfaces exhibit imperfections such as scale formations, hardened layers, or notable irregularities, climb milling is advocated. By engaging the pre-machined surface, climb milling mitigates the risk of tool chipping, rendering it advantageous. Tackling Hardened Materials: For materials prone to hardening, conventional milling stands out as the recommended approach. This methodology not only curtails cutting deformations but also diminishes cutting resistance, facilitating smoother machining operations. Utilizing Ceramic Cutters on High-Temperature Alloys: When employing ceramic cutting tools for machining high-temperature alloys, adopting climb milling is advisable. Given the sensitivity of ceramic tools to impact forces upon entry into the workpiece, climb milling aligns more harmoniously with this machining scenario.
Addressing Machining Challenges
Mitigating Tool End Damage or Wear: In instances where noticeable wear is observed on the trailing edge of the tool, opting for conventional milling is prudent. This strategy helps avert issues like tool scraping and excessive wear attributed to compression forces. Managing Vibration Arising from Tool Overhang: In precision machining endeavors fraught with significant tool overhang and resultant vibrations, embrace climb milling for optimal results. Alleviating Vibration Arising from Spindle Rigidity Issues: When confronted with inadequate spindle rigidity, particularly evident in high cutting resistance operations like shoulder milling, experimenting with climb milling holds potential benefits.
Mastery In Milling: BOYI’s Dedication To Precision
In the realm of milling operations, mastery of both conventional and climb milling techniques is paramount. For an esteemed manufacturing entity like BOYI, proficiency in these methodologies is imperative. We pride ourselves on not merely comprehending but excelling in the nuanced application of these methods. Leveraging our extensive knowledge and proficiency, we guarantee that each project entrusted to us epitomizes our unwavering commitment to exactitude and excellence. Opting for BOYI means selecting a collaborative partner dedicated to honing fundamental skills, ensuring that your designs are executed with unmatched precision and sophistication.
FAQs
Q1: What is climb milling?
A1: Climb milling, also known as down milling, is a milling technique where the cutting tool rotates in the same direction as the feed motion. This means that the cutter engages the material at the maximum thickness, gradually reducing the chip thickness as it progresses along the workpiece.
Q2: What is the difference between climb milling and conventional milling?
A2: Climb milling and conventional milling differ in the direction of rotation of the cutting tool relative to the feed motion. In climb milling, the cutter rotates in the same direction as the feed motion, while in conventional milling, the cutter rotates opposite to the feed motion.
Q3: What is conventional milling?
A3: Conventional milling, also referred to as up milling, is a milling technique where the cutting tool rotates against the feed motion. In this method, the cutter initially encounters the material at its thinnest point, gradually increasing the chip thickness as it progresses along the workpiece.
Q4: What is climb cutting?
A4: Climb cutting is another term for climb milling. It involves feeding the workpiece against the rotation of the cutting tool, resulting in reduced cutting forces and improved surface finish compared to conventional cutting.
Q5: What are the differences between climb milling and conventional milling?
A5: Climb milling and conventional milling differ primarily in the direction of the cutter rotation relative to the feed motion. Climb milling offers advantages such as reduced cutting forces, minimized tool wear, and improved surface finish compared to conventional milling.
Q6: When should I use conventional milling over climb milling?
A6: Conventional milling is preferred when machining conditions permit, such as when addressing surface imperfections or working with materials prone to hardening tendencies. It enhances milling cutter lifespan and surface quality, making it suitable for various machining scenarios.
