Steel continues to uphold its position as a cornerstone material across diverse industrial sectors. Renowned for its versatility and robust attributes, it garners significant favor from project managers and manufacturers alike. Notably, among the plethora of steel grades available, 1018 steel and 4140 steel stand out as prominent choices. While sharing certain characteristics, a thorough comparison between 1018 and 4140 steel is imperative.
In the selection of steel materials for any given project, a nuanced understanding of their divergent features is paramount. This comprehension facilitates informed decision-making, aligning the chosen steel grade with the specific requirements of the project at hand. Hence, this discourse aims to delineate the distinctive attributes of 1018 steel versus 4140 steel, furnishing stakeholders with a comprehensive insight into their respective strengths and limitations.

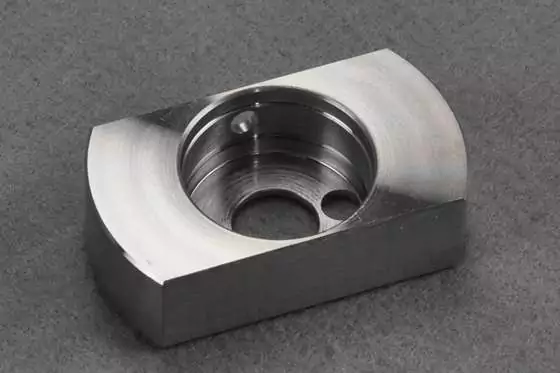

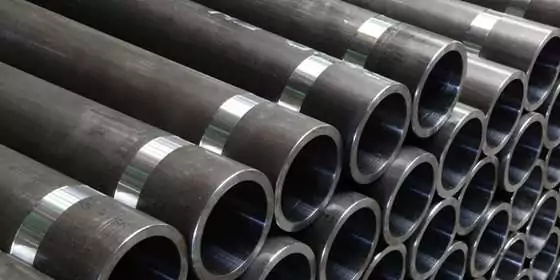

What is 1018 Steel?
1018 steel, classified as a low-carbon or mild steel, possesses a medium-low carbon content. This particular steel variant is distinguished by its modest manganese composition, contributing to its notable combination of strength, hardness, and ductility. Although certain steel grades may surpass its mechanical attributes, 1018 steel stands out for its exceptional machinability and high heat treatability, attributes that mitigate costs and render it well-suited for a diverse array of components.
Advantages and Disadvantages of 1018 Steel
Advantages
Ease of machining, forming, welding, and fabrication. Capability for welding without necessitating pre-heating or post-heating procedures. Compatibility with cold forming methodologies such as bending, crimping, and swaging. Potential for case-hardening through techniques like carburizing or carbonitriding.
Disadvantages
Limited corrosion resistance. Lower yield strength and reduced ductility may hinder edge retention.

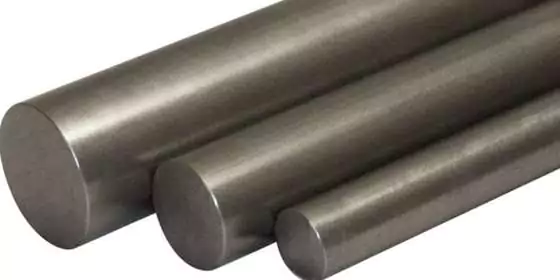

What Is 4140 Steel?
4140 steel is a chromium-molybdenum alloy renowned for its heightened strength and hardness. Its chromium component facilitates exceptional hardness penetration, while molybdenum ensures superior strength and consistent hardness throughout. Consequently, this steel variant boasts remarkable fatigue, torsional, and impact resistance.
In addition to its strength characteristics, 4140 steel exhibits favorable ductility, exceptional toughness, and outstanding wear resistance, particularly when subjected to tempering and quenching processes. Moreover, 4140 steel offers versatility in hardening methods, including cold working and heat treatment, further enhancing its utility across various applications. Indeed, few steel grades rival the performance and adaptability of 4140 steel.
Advantages and Disadvantages of 4140 Steel
Advantages:
- Superior toughness and elevated fatigue strength characteristics.
- Demonstrates commendable resistance to corrosion.
- Heat-treated 4140 steel showcases remarkable strength, outstanding overall mechanical properties, and elevated yield strength.
Disadvantage:
- Demands meticulous attention during welding procedures to ensure optimal results.

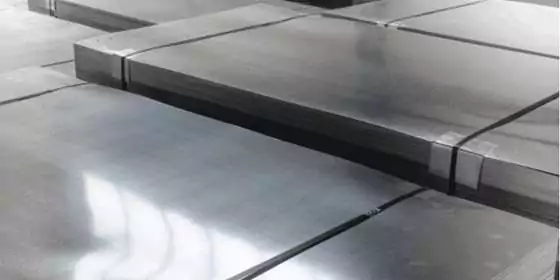

Distinguishing Between 1018 and 4140 Steel: An In-depth Comparative
Analysis After providing an overview of both steel grades, it is imperative to delve into a thorough examination of the fundamental disparities between 1018 and 4140 steel. Hence, we shall conduct a comprehensive comparison based on the following criteria:

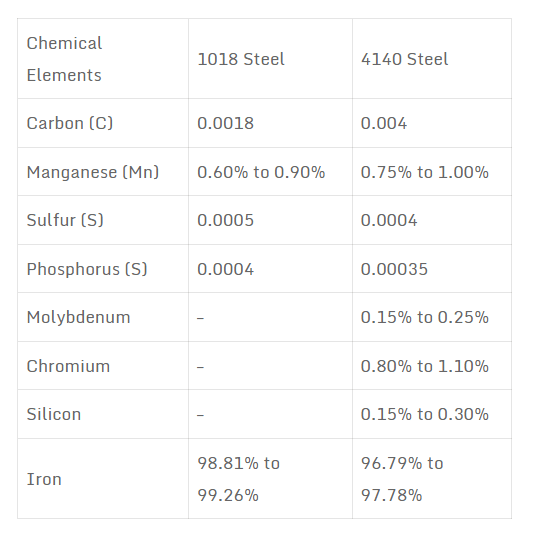

- Chemical Composition (Alloy Makeup) The disparity between 1018 and 4140 steel can be discerned from their numerical nomenclature. The initial digit denotes the steel type, while the succeeding digit denotes any alloy modifications. The final two digits signify the carbon content in the respective steel grades.
Upon analysis, it becomes evident that 1018 steel is unalloyed carbon steel, devoid of any modifications, and comprises approximately 0.18% carbon. Conversely, 4140 steel qualifies as molybdenum steel with alloy modifications, chiefly chromium additions. Furthermore, it contains approximately 0.40% carbon. The comparative chart below elucidates the distinct chemical compositions of 4140 versus 1018 steel.
Mechanical Characteristics Analysis:
Yield Strength
Comparatively, 4140 steel exhibits a superior yield strength of 60,200 PSI (415 MPa) as opposed to 1018 steel’s 53,700 PSI (370 MPa). This discrepancy stems from the divergent chemical compositions of the respective steels. The higher yield strength of 4140 steel renders it more resistant to deformation under pressure and impact, indicating its suitability for applications demanding robustness. Notably, while 1018 steel possesses a commendable yield strength, it remains a resilient metal.
Elasticity
Elasticity serves as a crucial metric for gauging a material’s capacity to rebound from deformation and its overall stiffness. The elastic modulus of 1018 steel stands at 205 GPa, whereas 4140 steel falls within the range of 190 to 210 GPa. This similarity underscores their comparable responses to elastic deformation, thereby illustrating their analogous structural behaviors.
Material Hardness
Material hardness signifies a material’s ability to withstand penetration and resist deformation. 4140 steel boasts a Brinell hardness rating of 200, outstripping 1018 steel’s rating of 130 to 140. This notable disparity underscores the markedly higher hardness of 4140 steel. Nevertheless, both materials possess ample hardness to withstand pressure without succumbing to deformation.
Corrosion Resistance
Notably, the chromium content imbues 4140 steel with superior corrosion resistance in contrast to 1018 steel. This attribute renders 4140 steel particularly advantageous for outdoor applications wherein exposure to corrosive agents is probable. Consequently, manufacturers often opt for 4140 steel when fabricating components anticipated to encounter corrosive environments.
Thermal and Electrical Characteristics
Temperature Resistance
The comparative assessment of temperature resistance between 1018 and 4140 steel is conducted by scrutinizing their respective melting points. Both steel grades exhibit identical melting points within the range of 1420°C to 1460°C, indicating their ability to withstand elevated temperatures effectively. This similarity underscores their suitability for applications requiring high-temperature performance and responsiveness to heat treatment, facilitated by a well-balanced distribution of elemental constituents.
Thermal Conductivity
While steel is generally characterized by limited heat conductivity, distinctions arise between 1018 and 4140 steel due to variations in their chemical compositions. Notably, 1018 steel demonstrates superior thermal conductivity compared to 4140 steel, attributed to inherent differences in their elemental compositions. The thermal conductivity of 1018 measures 52 W/m-K, whereas that of 4140 stands at 43 W/m-K, reflecting nuanced variations in their thermal transport properties.
Electrical Conductivity
Despite their modest thermal conductivity, steel alloys exhibit commendable electrical conductivity, rendering them well-suited for applications in high-temperature environments. Although the disparity in electrical conductivity between 1018 and 4140 steel is marginal, 4140 steel outperforms 1018 in terms of electrical conduction. This distinction underscores the nuanced variations in their electrical transport properties, contributing to their distinct suitability for diverse industrial applications.
Fabrication and Thermal Processing
Machinability
The 4140 alloy steel exhibits exceptional machinability in its annealed state, owing to its high ductility which facilitates conventional forming techniques. However, due to its inherent toughness, it necessitates elevated pressure and force for effective shaping.
Similarly, 1018 cold-finished steel bars offer ease of machining, forming, welding, and fabrication. Machinists can readily translate design specifications into tangible products. Moreover, welding this steel type requires no pre-heating or post-heating treatments and is compatible with various conventional welding processes. Nonetheless, caution is advised when welding carbonitrided or carburized 1018 steel.

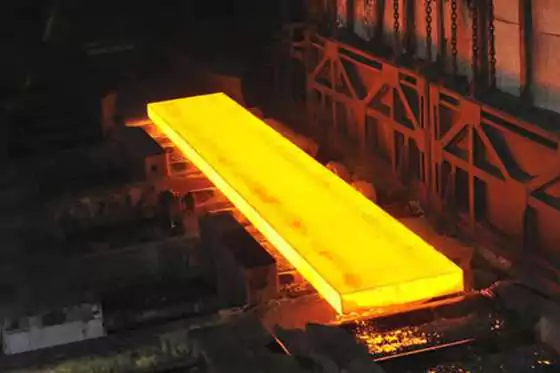

Thermal Treatment
AISI 4140 steel is resistant to deformation during heat treatment processes. It can be heated to 845°C and subsequently quenched in oil. Some manufacturers opt for heating it to 913°C followed by air cooling and hardening. Typically, this steel grade can withstand the following thermal treatments:
- Forging
- Hot working
- Cold working
- Annealing
- Tempering
- Hardening
Comparative Analysis: 1018 vs. 4140 Steel Alloys for Optimal Performance
When confronted with the selection between various steel alloys, the decision-making process can be nuanced, particularly when evaluating alloys within the same metal category. In this context, the judicious selection of steel grade hinges upon the specific demands of your intended applications and the desired specifications. Here, we delineate the paramount considerations to facilitate informed decision-making:
Strength
The tensile strength of a steel alloy constitutes a pivotal determinant, particularly when envisaging deployment in high-stress operational milieus. It is imperative that the chosen material evinces the capacity to withstand tension without succumbing to deformation.
4140 steel exhibits a superior tensile strength, boasting 655 MPa compared to the 440 MPa of 1018 steel. Consequently, 4140 steel outperforms its 1018 counterpart in terms of resilience against pressure and impact, rendering it the preferred choice for applications characterized by high-frequency impact occurrences.
Machinability Characteristics
The machinability attributes of steel grades are primarily contingent upon their amenability to modification. Both AISI 4140 and 1018 steels exhibit favorable machinability, facilitating ease in machining, fabrication, forming, and welding when in their annealed states. Nevertheless, the 4140 variant boasts a higher carbon content, necessitating meticulous precautions during welding procedures to mitigate the risk of cracking. While 1018 steel affords effortless machinability and weldability, 4140 steel may necessitate pre- and post-heating treatments to forestall the occurrence of cracking.
Corrosion Resilience
It is imperative to take into account the operational surroundings of the intended product when selecting the appropriate steel grade. External factors can significantly impact the performance quality of the component. Notably, 4140 steel presents superior corrosion resistance owing to its chemical composition. The presence of chromium and molybdenum endows it with remarkable resistance against corrosive environments, rendering it a dependable material for outdoor components subjected to exposure to corrosive media.
Heat Treatment Capabilities
Notably, not all steel grades possess the capacity for thermal treatment, rendering it a pivotal consideration in material selection. Fortunately, both 1018 and 4140 steel exhibit inherent suitability for heat treatment procedures, facilitating enhancements in tensile strength and the attainment of superior hardness. Moreover, the applied heat treatment methodologies imbue the materials with heightened abrasion and wear resistance attributes while preserving their intrinsic ductility and toughness.

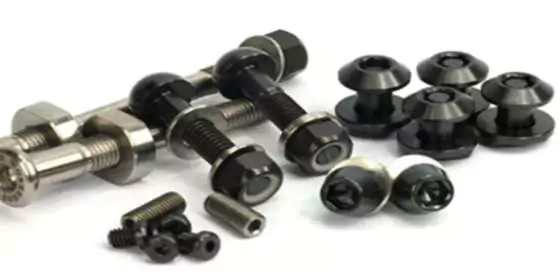

1018 Vs 4140 Steel: Applications
The utility spectrum of 1018 steel spans across diverse applications, making it invaluable for components necessitating cold forming procedures. Furthermore, its adaptability extends to carburized components, encompassing gears, pins, ratchets, dowels, tool holders, and assorted machine parts. Additional applications encompass fasteners, pins, shafts, ratchets, spindles, among others. Moreover, 1018 steel finds utility in the fabrication of consumer goods like anchor bolts, gaskets, and axes. Noteworthy, some manufacturers leverage this steel grade for structural purposes, highlighting its multifaceted application potential.
On the contrary, 4140 steel possesses exceptional strength, hardness, and thermal resistance, rendering it ideal for the fabrication of high-strength forgings. Its myriad applications within the automotive sector include drive gears, traction gears, rear axles, spring clamps, among others. Additionally, 4140 steel finds extensive use in the production of shafts, bolts, nuts, jigs, gears, and fixtures.
Seeking a Trusted Partner to Facilitate Informed Decisions
Are you encountering difficulties in selecting the most suitable metal material for your project? Alternatively, do you require expert guidance to optimize the usage of various materials? WayKen stands ready to assist.

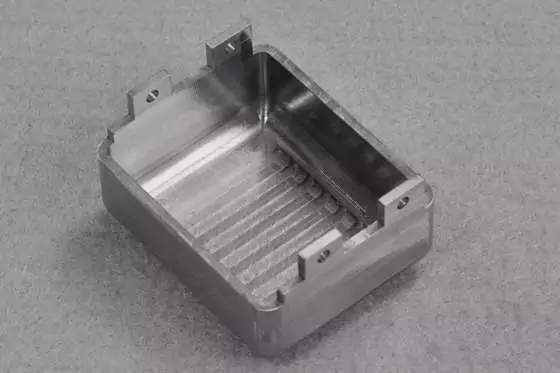

We specialize in custom metal machining services, catering to materials such as steel, aluminum, titanium, and more. Whether for prototyping or low-volume part production, our team of seasoned engineers excels in material selection and adheres to stringent quality standards to meet your requirements. Simply upload your CAD file to receive an instant quotation.
Closing Statement
The meticulous consideration and selection of materials stand as pivotal facets within the realm of product development. Within the domain of metal fabrication endeavors, steel alloys hold prominence, and the judicious selection thereof is paramount for optimizing project outcomes. Through a comparative analysis of 1018 and 4140 steel across various parameters presented in this discourse, one can glean insights necessary for informed decision-making. For those contemplating the utilization of either of these materials for their respective projects, a thorough examination of their distinctive attributes is advised to identify the optimal choice.
FAQs
Q: Is 4140 a carbon steel?
A: 4140 steel is a low-alloy or carbon steel. The addition of molybdenum and chromium makes it one of the commonest alloy steels available. The molybdenum increases its toughness while the chromium increases its corrosion resistance.
Q: Is 1018 steel ductile or brittle?
A: 1018 steel has a chemical composition that gives a ductile and strong material with relatively low hardness and toughness than other alloys.
Q: What do the digits in the steel grade indicate?
A: The first digit indicates what type of steel it is, while the second digit tells you if there are any modifications to the alloys. The last two digits indicate the amount of carbon in the finished steel.
Q: What are the main differences between 4130 and 4140 steel?
A: While both 4130 and 4140 are alloy steels, they differ primarily in their composition and applications. 4130 steel contains chromium and molybdenum, making it ideal for applications requiring high strength and toughness, such as aircraft components and structural tubing. On the other hand, 4140 steel contains chromium, molybdenum, and manganese, offering superior strength, hardness, and wear resistance. It is commonly used in applications such as gears, shafts, and automotive components.
Q: What is 4140 heat treated steel?
A: 4140 heat treated steel refers to the process of subjecting 4140 alloy steel to controlled heating and cooling cycles to alter its mechanical properties. This treatment typically involves heating the steel to a specific temperature range, followed by quenching and tempering to achieve the desired hardness, strength, and toughness.
Q: What is involved in the heat treatment of 4140 steel?
A: The heat treatment of 4140 steel typically involves three main stages: heating, quenching, and tempering. Initially, the steel is heated to a specific temperature range, typically between 1500°F to 1600°F (815°C to 870°C), followed by rapid cooling (quenching) in a suitable medium such as oil or water. Subsequently, the quenched steel is tempered at a lower temperature to improve toughness and reduce brittleness while maintaining adequate hardness.
Q: What is the hardness of prehardened 4140 steel?
A: Prehardened 4140 steel typically exhibits a hardness ranging from 28 to 32 HRC (Rockwell Hardness Scale C). This level of hardness is achieved through controlled heating and quenching during the manufacturing process, eliminating the need for additional heat treatment steps.
Q: How does 4140 steel compare to 4130 steel?
A: Both 4140 and 4130 steel are versatile alloy steels commonly used in engineering and manufacturing applications. However, 4140 steel offers higher strength, hardness, and wear resistance compared to 4130 steel. Additionally, 4140 steel is more readily available in prehardened or heat-treated conditions, making it preferred for applications requiring superior mechanical properties.
Q: What are the differences between 4340 and 4140 steel?
A: 4340 and 4140 are both chromium-molybdenum alloy steels with similar compositions, but they differ in their alloying elements and properties. 4340 steel contains higher levels of nickel and molybdenum, resulting in increased toughness and fatigue resistance compared to 4140 steel. Consequently, 4340 steel is often preferred for applications requiring high strength and impact resistance, such as aircraft landing gear and crankshafts, while 4140 steel is suitable for applications requiring high hardness and wear resistance, such as gears and shafts.
