Conversion coating aluminum:Benefits of Passivation, Black Oxide, Alodine, and Anodizing

The Second Law of Thermodynamics asserts the propensity of all systems to progress towards a state of entropy. In the context of material science and engineering, this natural tendency manifests as the degradation of metals when exposed to environmental factors, resulting in phenomena such as oxidation, corrosion, and rust.

Conversion coating aluminum

Mitigating the effects of this age-old problem necessitates the implementation of sophisticated solutions during the design and manufacturing phases. One highly effective approach involves the application of protective coatings to metal components, rendering them impervious to the deteriorative impact of natural elements. These coatings, classified as conversion coatings, differ from passive alternatives like paint or powder coats by instigating a chemical reaction at the metal surface.

Though applicable to a broad spectrum of metals, this discussion primarily elucidates the merits and drawbacks of various categories of conversion coatings. Notable examples encompass passivation and black oxide, preferred for steel and stainless steel, and alodine and anodizing, commonly employed for aluminum components. Each of these coatings constitutes a specialized surface modification that bestows resistance to oxidation, corrosion, and rust.

Definition of Conversion Coating:

Chemical conversion coatings, or simply conversion coatings, represent a form of surface passivation strategically employed to alter the characteristics of a metal surface. Through this process, a protective metal oxide layer is generated on the surface, safeguarding the metal part against corrosion, rust, and other forms of wear, while concurrently enhancing certain material properties. Moreover, conversion coatings can augment coating adhesion.

Given the innate reactivity of most metals to oxygen, metal oxides spontaneously form on surfaces even in the absence of coatings. Certain metal oxides, such as the passive layer formed on stainless steel with chromium, serve as natural protective barriers. However, this inherent process also contributes to the formation of oxides, such as the familiar red rust on ferrous metals like iron.

Conversion coatings leverage controlled environments and specialized techniques involving acidic baths and/or electrical processes to harness surface reactions. These reactions result in the formation of a metal oxide surface coating, shielding the underlying metal from external oxygen and corrosive elements. Prominent examples include chromate conversion coating (CCC), phosphate conversion coating (PCC), and black oxide coating.

During the conversion process, a segment of the metal surface undergoes transformation into a protective layer. This chemical film, exemplified by chromate conversion coating on aluminum substrates, serves as an effective barrier. Additionally, nanopores within the oxide’s crystal layer can be filled with dyes or sealants to confer enhanced properties such as color, lubricity, and increased hardness. Crucially, the chemically bonded nature of the metal oxide layer renders conversion coatings highly durable and resistant to penetration.

Passivation of aluminum

Passivation of aluminum is a process aimed at enhancing the corrosion resistance and longevity of aluminum surfaces. This method involves the formation of a passive oxide layer on the aluminum’s surface, typically aluminum oxide, which acts as a protective barrier against environmental factors, particularly corrosive elements. The passivation of aluminum is crucial in preventing the onset of corrosion and maintaining the material’s structural integrity in diverse applications, ranging from aerospace components to electronic devices.

The passivation process for aluminum typically begins with thorough cleaning to remove any contaminants or impurities from the surface. This is followed by controlled exposure to oxidizing environments or chemical treatments that facilitate the formation of a stable and uniform oxide layer. The resulting passive film not only serves as a barrier to corrosive substances but also contributes to improved adhesion for subsequent coatings or finishes.

The effectiveness of aluminum passivation is influenced by various factors, including the composition of the alloy, surface preparation, and the specific passivation method employed. Common passivation techniques for aluminum include chromate conversion coating and citric acid passivation. Chromate conversion coatings, such as Alodine or Iridite, involve the application of a chromate-based solution, forming a protective film on the aluminum surface. Citric acid passivation, on the other hand, utilizes environmentally friendly citric acid to achieve similar results, offering an alternative to traditional hexavalent chromium-based processes.

Distinguishing Conversion Coating from Plating:

The dissimilarity between conversion coating and plating becomes evident upon closer examination. Electroplating involves an electrochemical process where a metal is deposited onto the part’s surface, forming a thin protective coating that can modify its appearance, physical attributes, wear resistance, biocompatibility, or electrical conductivity. Electroless plating is a comparable process wherein metal deposition occurs without the use of electricity, exemplified by electroless nickel plating.

Advantages of Conversion Coating:

Both plating methods exhibit excellent adhesion and corrosion resistance due to electrochemical bond formation. However, a pivotal distinction lies in the fact that plating creates a new layer of metal on the surface, while conversion coating modifies the existing metallic layer on the surface. Conversion coating often serves as a preparatory step for subsequent plating or painting, whereas electroplating typically constitutes the final finish.

Aluminum Finishing Techniques:

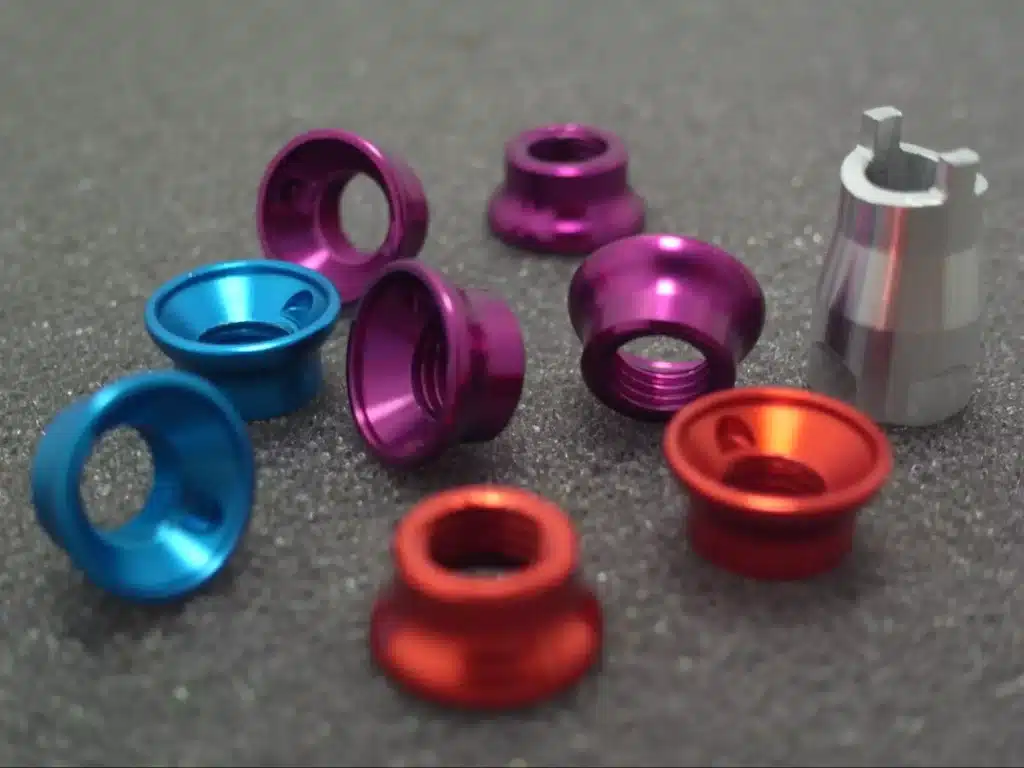

Anodizing is a prevalent form of electrolytic passivation for aluminum. In this process, parts undergo cleaning and desmutting to eliminate scale or heavy contaminants. Subsequently, an acid solution bath removes the natural oxidation layer. Parts, connected to a power supply, receive a positive charge and are immersed in the anodizing bath, facilitating the formation of metal oxide crystal nanopores. These pores can be dyed before being sealed in another chemical bath, resulting in a spectrum of colors. Anodizing adds a minimal amount of material to the surface, affecting dimensions. Different types of anodizing processes yield varying layer thicknesses, making it applicable in diverse industries.

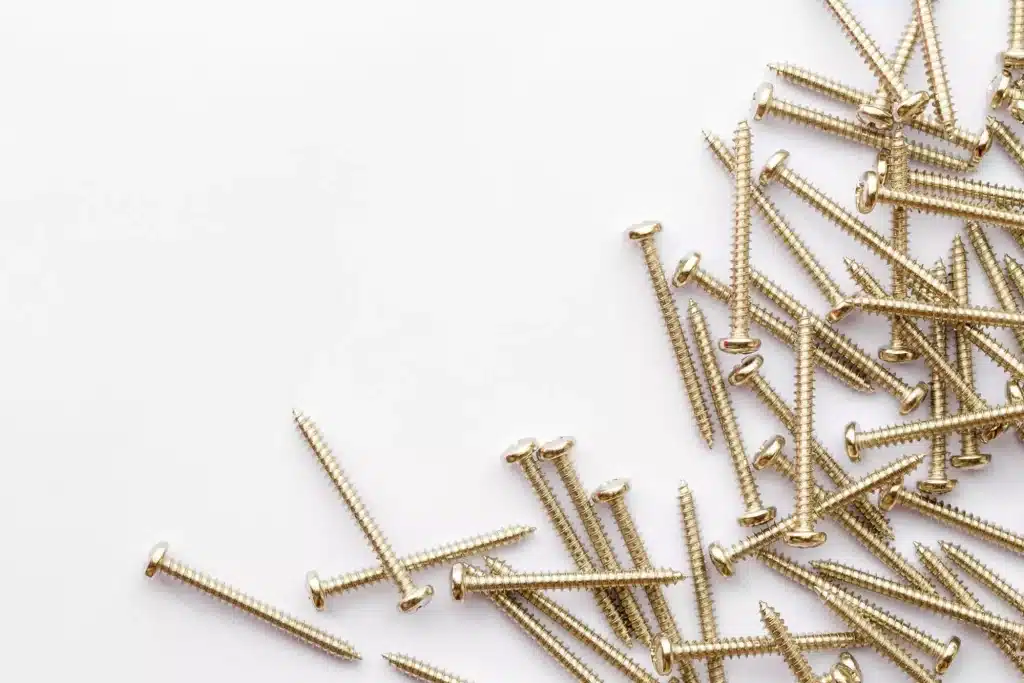

Alodine, also known as chem film or Iridite, produces a modified corrosion-resistant oxide layer on metal parts without using electricity. Alodine, a trademarked chemical conversion coating by Henkel, resembles an electroless version of anodizing. The process involves cleaning, degreasing, and rinsing the parts before immersing them in a chromium bath. Alodine is cost-effective and often applied to screws, bolts, brackets, and fasteners, though it is more susceptible to wear and scratches compared to anodizing. The use of trivalent chromium, known as hex-free chromating, has become a standard practice due to the carcinogenic nature of hexavalent chromium, historically used in alodine conversion coatings.

Can I Simultaneously Utilize Anodizing and Alodine Processes?

While the concurrent application of both anodize and alodine coatings to your components is unlikely to cause any harm, it is essential to note that it may not yield additional benefits. Each coating induces alterations to the metal surface, and once one is applied, the other is rendered ineffective. Consequently, there is no discernible enhancement in paint adhesion or corrosion resistance.

Certain CNC machined aluminum parts may necessitate distinct treatments for specific surface sections. In such cases, strategic utilization of anodizing for certain areas and alodine for others can be considered.


Passivation involves the removal of free iron from the surface of stainless steel components, resulting in a significantly more corrosion-resistant version of the material’s naturally occurring oxide layer. Although “passivation” is commonly used as a generic term for conversion coating, there are specific passivation processes tailored for coating steel and stainless steel parts.

The high chromium content in stainless steel simplifies the passivation process. After thorough cleaning, the chromium near the part surface reacts with oxygen, forming a protective barrier.

Phosphate conversion is another prevalent passivation technique for steels and stainless steels. This process, facilitated by phosphoric acid and phosphate salts, generates stable metalophosphate nanopores, preparing the surface for a manganese or zinc seal, also known as parkerization.

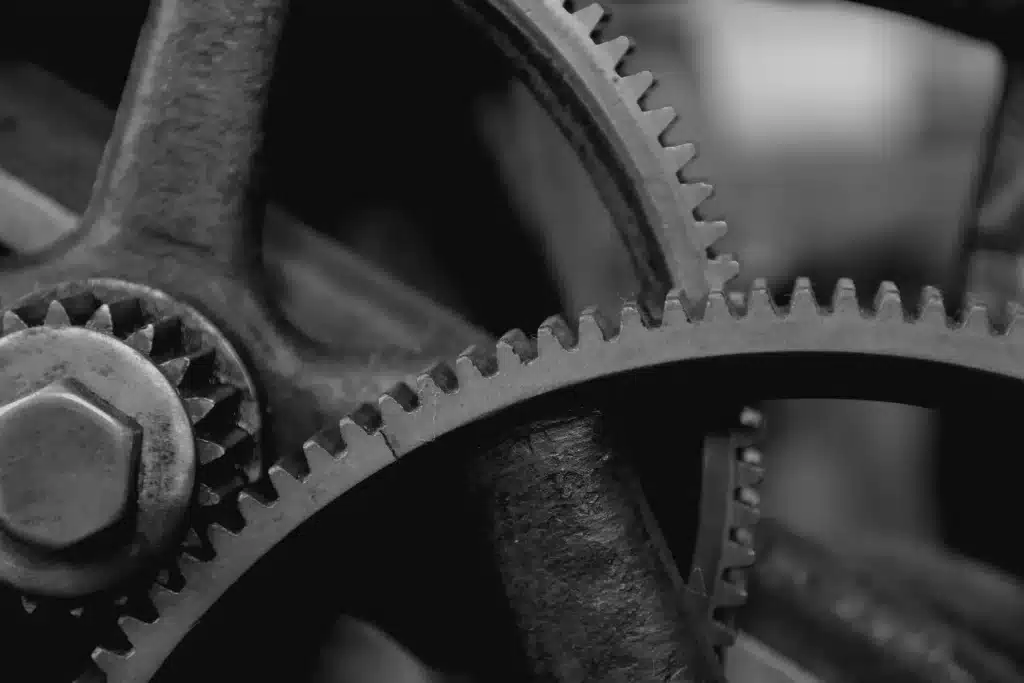

Black Oxide

Black oxide, historically referred to as browning or bluing, is a conversion coating primarily applied to steel and stainless steel, resembling the alodine process. Various procedures exist for applying the black oxide finish, fundamentally a chemical process producing a conductive iron oxide layer called magnetite, imparting corrosion resistance to the base metal.

The black oxide finish significantly reduces surface reflection without significantly altering the dimensions of the coated part. When sealed with oil or wax, it enhances lubricity, making it suitable for preventing galling in gears and locks. Black oxide coatings find application on both copper and steel surfaces.

The application of conversion coatings to your components can extend their lifespan while imparting desirable properties such as color, hardness, lubricity, or enhanced corrosion resistance. When designing and optimizing your next product, consider these common conversion coatings.

Black oxide coating near me

Black oxide coating services are available in close proximity to your location, providing a reliable solution for enhancing the durability and corrosion resistance of your metal components. The black oxide process, also known as browning or bluing, is a proven conversion coating method primarily applied to steel and stainless steel surfaces.

Local black oxide coating facilities employ advanced chemical processes to create a conductive iron oxide layer, specifically magnetite, on the metal’s surface. This layer not only imparts corrosion resistance but also minimizes surface reflection without introducing significant dimensional changes to the coated parts.

The proximity of black oxide coating services ensures efficient and timely treatment of your components. This coating is particularly beneficial for applications where reduced reflection and enhanced lubricity are crucial, such as gears and locks. By opting for black oxide coating near you, you can leverage the expertise of local professionals to achieve optimal results for your metal components, meeting both aesthetic and functional requirements.

Black Oxide vs. Zinc Plated: A Comparative Overview

Black oxide and zinc plating are two widely employed surface finishing techniques, each offering distinct advantages and characteristics for enhancing the performance and longevity of metal components.

When deciding between black oxide and zinc plating, several factors must be considered, including the intended application, environmental conditions, and desired aesthetics. Black oxide excels in applications where a dark finish and minimal dimensional impact are crucial, such as in optical or firearm components. On the other hand, zinc plating is preferred for its bright appearance and sacrificial corrosion protection, making it suitable for a wide range of industrial and automotive applications.

Black oxide vs black phosphate

Black oxide and black phosphate are two distinct conversion coatings employed in the surface treatment of metals, particularly steel and stainless steel, to enhance corrosion resistance and provide functional benefits. Understanding the differences between these coatings is crucial for selecting the most appropriate solution based on specific application requirements.

The choice between black oxide and black phosphate coatings depends on specific application requirements. Black oxide is favored for its aesthetic appeal, minimal dimensional impact, and suitability for applications where reduced reflection is critical. Black phosphate, on the other hand, is renowned for its durability and wear resistance, making it a preferred choice in scenarios involving mechanical stress. Careful consideration of these factors ensures the optimal selection of a conversion coating tailored to the unique needs of the given metal components.
