An Overview of CNC Turning: Processes, Operations, and Advantages


Definition of CNC Turning

CNC Turning epitomizes a sophisticated subtractive manufacturing process renowned for its unparalleled precision and efficiency, deeply rooted in the fundamental principles of lathe machining. It orchestrates the synchronized movement of a non-rotating cutting implement with a meticulously rotating workpiece to meticulously sculpt materials, thereby realizing intricate geometries with utmost accuracy and repeatability.

Advantages of CNC Turning

Precision Engineering

The seamless integration of CAD/CAM technologies ensures the execution of exact specifications, obliterating the specter of human error and delivering components with micron-level precision. CNC Turning operates on a principle of precision engineering, where the fusion of computer-aided design and manufacturing technologies eradicates the variability inherent in manual operations. This meticulous control over dimensions and tolerances not only guarantees conformity to design parameters but also enhances the overall quality of manufactured parts, meeting the stringent demands of modern industries.

Adaptive Flexibility

An array of CNC turning machinery, ranging in size and capability, affords unparalleled adaptability to diverse manufacturing exigencies, with meticulously pre-programmed tasks facilitating swift reconfigurations and adjustments. The versatility of CNC Turning lies not only in its ability to accommodate a wide range of materials but also in its capacity to swiftly transition between different production setups. This inherent flexibility not only optimizes production efficiency but also enables manufacturers to respond promptly to changing market demands, ensuring competitiveness in dynamic industrial landscapes.

Safety Prowess

The automation-centric paradigm significantly curtails labor dependencies, augmented by the deployment of enclosed protective measures that fortify operational safety and mitigate occupational hazards. Safety remains paramount in CNC Turning operations, with automated systems minimizing human intervention in potentially hazardous tasks. Enclosed machining environments, equipped with safety interlocks and protective barriers, ensure operator well-being while safeguarding against the risks associated with high-speed machining operations. This commitment to safety not only fosters a secure working environment but also enhances operational reliability, contributing to sustained productivity levels.

Accelerated Production Velocity

By virtue of meticulously programmed operations, the incidence of errors is mitigated, thereby catalyzing expedited production timelines whilst upholding uncompromising standards of quality assurance. CNC Turning optimizes production velocity through the elimination of manual interventions, where pre-programmed toolpaths dictate precise machining operations. This systematic approach minimizes idle times and reduces setup overheads, allowing for continuous production runs with minimal interruptions. Furthermore, the inherent repeatability of CNC Turning processes ensures consistent part quality across production batches, streamlining quality control procedures and expediting time-to-market for manufactured components.


Working Principle of CNC Turning

Translation of Design Specifications

CAD design blueprints are seamlessly transmuted into meticulously calibrated CNC programs, effectively delineating the machining trajectory. The foundational step in CNC Turning lies in the translation of intricate design specifications into machine-readable instructions. Computer-aided design software facilitates the creation of comprehensive blueprints, defining the geometric features and dimensional tolerances of the desired component. These digital representations serve as the blueprint for CNC programming, where skilled technicians meticulously craft a sequence of commands that precisely dictate tool movements and cutting parameters. This seamless transition from design concept to machining instructions ensures alignment between envisioned product specifications and the final manufactured components, laying the groundwork for precision manufacturing.

Preparation of CNC Turning Apparatus

Rigorous preparatory measures are undertaken to optimize the CNC turning apparatus, ensuring seamless alignment with the designated machining imperatives. Prior to commencing operations, CNC Turning apparatus undergoes meticulous calibration and setup procedures to guarantee optimal performance. Workpiece fixtures are securely fastened onto the lathe spindle, facilitating stable rotational motion during machining. Cutting tools are carefully selected based on material properties and machining requirements, with tool holders precisely positioned within the tool turret for swift tool changes. Additionally, coolant systems are configured to maintain thermal stability and evacuate chips from the machining zone, safeguarding against heat-induced deformation and prolonging tool life. This comprehensive preparation ensures that the CNC Turning apparatus is primed to execute machining tasks with unparalleled accuracy and efficiency, minimizing the risk of deviations from desired specifications.

Precision Manufacture of CNC Turned Components

The CNC turning process unfolds, meticulously executing the prescribed machining operations with unwavering precision and efficiency. Once the CNC program is loaded and the apparatus is primed, the machining sequence commences with the rotation of the workpiece and the controlled movement of cutting tools along specified trajectories. Cutting parameters such as spindle speed, feed rate, and depth of cut are precisely modulated to achieve optimal material removal rates while maintaining dimensional accuracy. Advanced sensor systems continuously monitor machining conditions, facilitating real-time adjustments to ensure consistent performance and mitigate deviations from tolerances. Throughout the machining cycle, adherence to stringent quality control protocols ensures that each CNC turned component meets exacting standards of precision and surface finish. This relentless pursuit of perfection culminates in the production of intricately crafted components that exhibit superior dimensional accuracy, geometric integrity, and mechanical properties, exemplifying the pinnacle of CNC turning excellence.


Types of CNC Turning Operations

External Operations

Encompassing Turning, Taper Turning, Hard Turning, Facing, Grooving, and Parting. External operations in CNC Turning revolve around shaping the outer surfaces of workpieces to precise specifications. Turning involves the removal of material from the workpiece’s outer diameter to achieve cylindrical or conical profiles. Taper turning adjusts the workpiece’s diameter along its length, creating tapered features. Hard turning utilizes specialized cutting tools and techniques to machine hardened materials efficiently. Facing operations produce flat surfaces perpendicular to the workpiece axis, while grooving and parting create internal or external grooves and separate workpieces, respectively. These external operations collectively enable the fabrication of diverse components with intricate geometries and precise dimensional accuracy.

Internal Operations

Spanning Boring, Drilling, Threading, Knurling, and Reaming. Internal operations in CNC Turning focus on machining features within workpieces. Boring enlarges existing holes or produces internal cylindrical features with tight tolerances. Drilling creates holes of various sizes and depths, while threading adds screw threads to cylindrical surfaces. Knurling imparts textured patterns for improved grip or aesthetics, and reaming refines hole dimensions and surface finishes. These internal operations complement external machining processes, allowing for the creation of complex components with internal features tailored to specific functional requirements.

Main Components of CNC Turning Machine

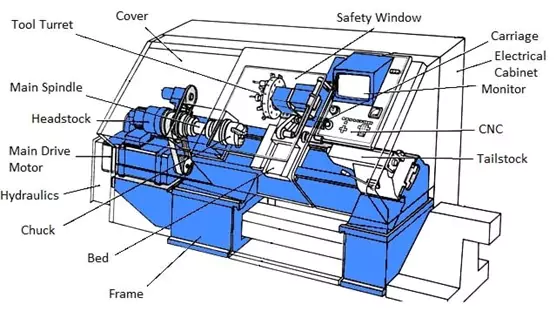

The CNC Turning apparatus comprises indispensable components such as the Headstock, Tailstock, Spindle, Chuck and Collet, Lathe Bed, Carriage, Tool Turret, and Control Panel, each meticulously calibrated to orchestrate the seamless execution of precision machining operations. The Headstock houses the spindle motor and transmission mechanism, providing rotational motion to the workpiece. The Tailstock supports long workpieces and assists in centering and clamping operations. The Spindle securely holds workpieces and rotates them at controlled speeds during machining. Chucks and collets grip workpieces or cutting tools, ensuring stability and precision during machining. The Lathe Bed forms the foundation of the machine, providing rigidity and support for other components. The Carriage moves along the lathe bed, carrying cutting tools and facilitating machining operations. The Tool Turret holds multiple cutting tools for rapid tool changes and versatile machining capabilities. The Control Panel serves as the interface for programming and monitoring machining operations, enabling operators to input commands and adjust parameters with precision. Together, these components synergize to form a robust CNC Turning system capable of producing intricate components with exceptional accuracy and efficiency.


Types of CNC Turning Machines

A diverse spectrum of CNC turning machinery includes Horizontal Turning Centers, Vertical Turning Centers, Horizontal Lathes, and Vertical Lathes, each tailored to cater to distinct manufacturing exigencies and geometric specifications. Horizontal Turning Centers feature a horizontally oriented spindle and workpiece arrangement, ideal for machining cylindrical components with axial symmetry. Vertical Turning Centers, on the other hand, employ a vertically oriented spindle and workpiece setup, facilitating the machining of large, heavy components with enhanced stability and rigidity. Horizontal Lathes, also known as engine lathes, offer versatility in machining operations and are well-suited for small to medium-sized workpieces. Vertical Lathes, or vertical turret lathes (VTLs), excel in handling oversized workpieces and are commonly used in heavy-duty machining applications. The selection of CNC turning machine type depends on factors such as part geometry, material properties, production volume, and process requirements, with each machine configuration offering unique advantages in terms of efficiency, accuracy, and versatility.

Material Selection for CNC Turning

The material palette for CNC turning encompasses a diverse array of substrates, ranging from metals and plastics to wood, glass, and wax, each mandating specialized machining modalities characterized by distinct speed and feed rate requirements. Metals such as aluminum, steel, titanium, and brass are commonly machined in CNC turning applications, owing to their excellent machinability, mechanical properties, and widespread industrial applications. Plastics, including ABS, acrylic, nylon, and polyethylene, offer versatility in CNC turning processes, with considerations for heat sensitivity, melting point, and chip formation characteristics. Wood, utilized in woodworking industries, requires specialized tooling and cutting parameters to achieve desired surface finishes and dimensional accuracy. Glass and ceramics, renowned for their hardness and brittleness, demand precision machining techniques and abrasive tooling to avoid surface damage and tool wear. Additionally, wax is frequently employed in rapid prototyping and jewelry manufacturing processes, offering ease of machinability and intricate detail reproduction. The selection of materials for CNC turning is guided by factors such as part design requirements, functional properties, environmental considerations, and cost-effectiveness, with manufacturers leveraging material expertise and machining capabilities to optimize process performance and achieve desired outcomes.


Choosing the Best CNC Turning Services

Optimal selection of CNC turning services entails partnering with reputable manufacturing entities such as BOYI, renowned for their cutting-edge technological prowess, rigorous quality assurance protocols, and expedited quoting processes accentuated by complimentary DFM analyses. When selecting CNC turning services, it’s imperative to prioritize reliability, precision, and efficiency. BOYI exemplifies these qualities, leveraging state-of-the-art CNC machining technology and a commitment to quality to deliver exceptional results. Their stringent quality assurance protocols ensure that every component meets exacting standards, while their expedited quoting process, enhanced by complimentary Design for Manufacturability (DFM) analyses, accelerates project timelines and minimizes lead times. By choosing BOYI, clients can be assured of receiving high-quality CNC turning services with unmatched efficiency and customer satisfaction.

Facilitating seamless collaboration, the provision for immediate uploading of CAD files expedites the quoting and commencement of production processes, ensuring unparalleled efficiency and customer satisfaction. BOYI understands the importance of seamless communication and collaboration throughout the manufacturing process. Their user-friendly online platform allows clients to upload CAD files instantly, streamlining the quoting process and expediting the commencement of production. This efficient workflow minimizes delays and ensures that projects stay on schedule, ultimately enhancing overall customer satisfaction. By embracing cutting-edge technology and prioritizing customer convenience, BOYI sets itself apart as a premier provider of CNC turning services, offering unparalleled efficiency and ease of collaboration.
