Understanding Tolerance Stacking: Analytical Approaches and Methodologies

Tolerancing constitutes a cornerstone of the engineering and manufacturing realm, defining the acceptable deviations from a part’s prescribed measurements. Central to the Geometric Dimension and Tolerancing (GD&T) framework, tolerance values assume pivotal roles in communicating essential part characteristics from product engineers to the production department.

Tolerance stacking emerges as a critical technique within the realm of tolerancing, ensuring the harmonization of multiple assembly features within predefined tolerance thresholds. Through meticulous calculation of assembly variation in geometric tolerance, tolerance stack-up analysis fosters mathematical precision, operational feasibility, and enhanced performance of machined parts.

The strategic allocation of tolerance budgets during the product development lifecycle highlights the significance of adept tolerance stacking practices.

This article explores the fundamental principles of tolerance stacking alongside its analytical methodologies, providing pragmatic insights to cultivate proficiency in this crucial aspect of engineering and manufacturing.

The Importance of Tolerance Stack-Up Analysis in Manufacturing

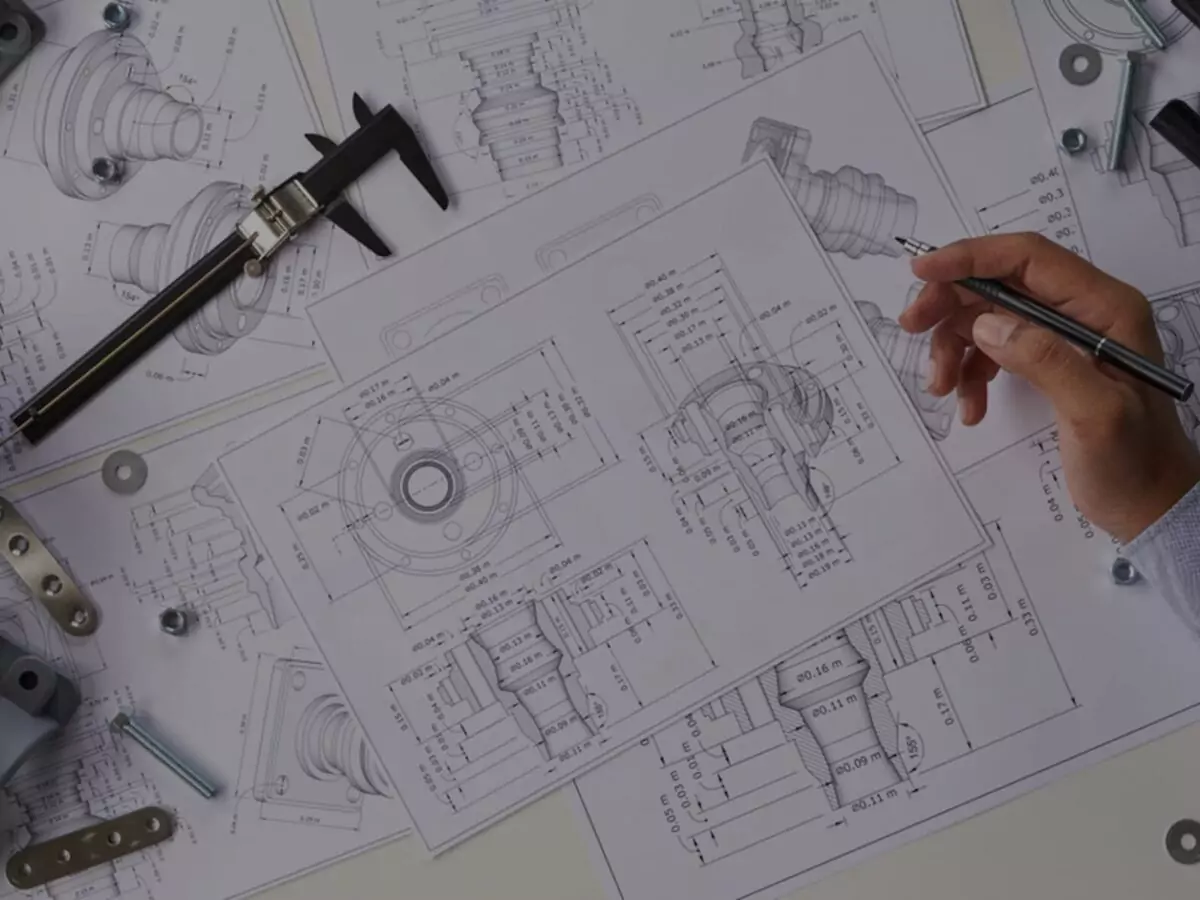

Understanding Tolerance Stacking: Analytical Approaches and Methodologies插图

Deciphering Tolerance Stacking

Tolerance stacking, or stack-up, denotes the cumulative accumulation of geometric tolerances across interconnected features. In essence, it involves aggregating all tolerances associated with a part to discern their collective impact on the overall tolerance of the component. This practice assumes pivotal significance in assembly processes, ensuring the feasibility of fabricating high-quality components by validating the harmonization of the part and its supporting features.

The Significance of Tolerance Stack-Up Analysis

Tolerance stack-up analysis assumes a central role in validating the attainability of tolerances prior to the initiation of manufacturing operations. By proactively identifying instances wherein individual part features fall within tolerance boundaries but collectively yield an assembly beyond acceptable limits, this analytical methodology forestalls costly scrap and rework.

Advantages of Rigorous Tolerance Stack Analysis

Conducting a comprehensive tolerance stack analysis facilitates the determination of the physical characteristics, functionality, and interaction with other components in the final product. Furthermore, by meticulously assessing tolerance stacking, manufacturers can streamline machining costs and bolster manufacturability by preempting potential errors during subsequent production stages following the design phase.

Precision Engineering: Optimizing Tolerance Stacking in CNC Machining

Unveiling Challenges in Tolerance Stacking

In the intricate process of manufacturing a sophisticated engine block for automotive applications, numerous machined features such as cylindrical bores, threaded holes, and flat surfaces demand meticulous attention. Each feature is meticulously assigned a specific tolerance to govern its dimensional parameters. For instance, the bores accommodating pistons adhere to a diameter tolerance of ±0.05 mm, while the flat surfaces designated for component mounting adhere to a flatness tolerance of ±0.02 mm.

Navigating Cumulative Tolerance Challenges

During assembly, the confluence of tolerance deviations presents a formidable challenge. Should each bore be machined at the upper threshold of its diameter tolerance while the flat surfaces are machined at the lower extremity of their flatness tolerance, a cumulative tolerance dilemma ensues. Consequently, pistons engineered to exacting tolerances may encounter improper fitting within marginally oversized bores, while components designated for mounting on the flat surfaces may suffer misalignment due to flatness variations.

Addressing Complexities in CNC Machining

In the domain of Computer Numerical Control (CNC) machining, even the slightest discrepancies in individual part dimensions can aggregate, giving rise to significant hurdles during assembly and operational phases. This illustration underscores the pivotal role of tolerance stack analysis in CNC machining, ensuring seamless functionality post-assembly, devoid of interference or misalignment.

Significance of Tolerance Management

Efficient management of tolerance stacking emerges as a cornerstone in endeavors pertaining to high-precision manufacturing, safeguarding both the quality and functionality of the end product. Through meticulous management of tolerance accumulation, manufacturers uphold rigorous quality standards and optimize the performance of final products within demanding operational environments.

Advanced Strategies for Tolerance Stack-Up Assessment

Understanding Tolerance Stacking: Analytical Approaches and Methodologies插图1

Tolerance Measurement Techniques

Within the domain of product design and engineering, practitioners commonly utilize two primary methodologies to conduct tolerance stack-up analysis. Despite their shared objective, these methodologies possess unique attributes that render them well-suited for specific contexts.

Worst-Case Tolerance Analysis

The worst-case tolerance analysis method embodies a straightforward approach to tolerance evaluation that is easily applicable. In this methodology, all individual tolerances pertaining to an assembly or component are aggregated, and the resultant total assembly limits are juxtaposed with the performance thresholds of the part to ensure precise design. Engineers employing the worst-case analysis paradigm presume maximal deviation levels across all features, thereby delineating the extreme minimum and maximum values for each tolerance.

Although relatively uncommon in manufacturing environments, the worst-case method garners adoption in scenarios characterized by heightened stakes, particularly within industries such as medical and aviation, where exactitude is paramount. This form of analysis serves to validate the functionality of assembly components even amidst exceptionally adverse conditions.

Machinists leverage the worst-case analysis approach to attain desired engineering fits, guaranteeing that all machined components conform to specified tolerances. Nevertheless, this methodology may introduce excessively stringent tolerances owing to its inherently conservative nature. Moreover, its implementation can incur elevated production costs, as tighter tolerances engender increased manufacturing expenditures. Despite these considerations, the worst-case tolerance analysis method proves particularly advantageous for low-volume machining operations, wherein the likelihood of machining components within tolerance diminishes as production volumes escalate.

Advanced Strategies for Tolerance Analysis: Statistical Techniques and Root Sum Squared (RSS)

Understanding Tolerance Stacking: Analytical Approaches and Methodologies插图2

Statistical Tolerance Analysis: A Methodical Approach

In the realm of tolerance analysis methodologies, statistical tolerance analysis emerges as a pragmatic and systematic method for addressing the complexities of tolerance stacking. Also known as variation analysis, this approach utilizes statistical analysis tools, such as the root sum square (RSS) method, to model the probability distribution of tolerance deviations and predict the likelihood of a part’s success or failure.

Among the various statistical techniques available, the Root Sum Squared (RSS) method stands out as the most widely employed. This methodology for assembly variation analysis adopts a normal distribution to characterize dimensional variations.

Through the aggregation of individual probability distributions, the RSS method calculates the overall part tolerance probability, providing a realistic estimation of the proportion of parts likely to fail quality assessments and inspection processes.

Fundamentally, this methodology operates on the premise that each dimension exhibits variance, with some dimensions deviating less and others more, reflecting the inherent variability encountered in real-world manufacturing environments. As a result, the RSS method proves particularly effective in mass production settings, where a controlled number of deviations are permissible, as long as a significant percentage of parts conform to the specified tolerance range.

Tolerance Stack-Up Refinement: Best Practices for Enhanced Precision

Tolerance stack-up analysis epitomizes the delicate equilibrium between artistic finesse and scientific rigor. Achieving mastery in tolerance stack-up calculations necessitates a distinctive amalgamation of engineering proficiency. This discourse delves into expert insights aimed at honing your tolerance stacking analysis for superior outcomes:

Understanding the Dynamics of Manufacturing

The inclination to impose overly stringent tolerances on select features is a prevalent pitfall encountered by many machinists. However, it is imperative to acknowledge that while the production team possesses the expertise to fabricate high-quality parts, the functional requisites of a component dictate its tolerances. Thus, product designers and manufacturers must adopt a pragmatic stance towards tolerance stacking, avoiding unwarranted rigidity in their approach.

Navigating the Realm of High-Precision CNC Machining for Combination Parts

The integration of high-precision CNC machining methodologies for combination parts demands meticulous scrutiny. Consequently, assessing tolerance stacking from a pragmatic standpoint becomes imperative, ensuring alignment with the intricacies of manufacturing realities.

Accounting for Post-Manufacturing Dynamics of Parts

Anticipating the metamorphoses that a part may undergo during its operational lifespan assumes paramount importance during the design phase. While seemingly conventional, it is crucial to acknowledge that general wear, tear, and maintenance practices can exert an influence on part tolerances post-manufacturing. Thus, conducting a thorough evaluation of these post-manufacturing alterations and delineating corresponding tolerances emerges as a prudent strategy to optimize the durability of the component.

Adherence to Established Principles of Tolerance

The adherence to the principles of General Dimensioning and Tolerancing (GD&T) standards remains pivotal in tolerance stack-up analyses. This entails meticulous consideration of the interplay between individual component features, thereby ensuring manufacturability within practical constraints while safeguarding critical part attributes such as material selection. Hence, validating the compliance of tolerance stack-up against pertinent GD&T requirements for each specific part is indispensable to uphold elevated standards of quality and functional integrity.

Optimizing Design Clarity: Mitigating Over-Dimensioning

Understanding Tolerance Stacking: Analytical Approaches and Methodologies插图3

Engineering drawings serve as a standardized conduit for manufacturers to translate customer requirements into precise product specifications. It is prudent to explicitly define tolerances exclusively for critical features, as this inherently influences the dimensions of auxiliary features. Novice engineers often grapple with the challenge of over-dimensioning, wherein tolerances are haphazardly applied to every part feature.

Experts advise against over-dimensioning during the communication of design intent, as excessive nominal dimensions can introduce complexity to production processes and congest engineering drawings, potentially jeopardizing project success.

Leveraging Advanced Tools for Tolerance Stack-Up Analysis

Tolerance stacking plays a pivotal role in modern manufacturing and has undergone significant evolution over time. State-of-the-art computer-aided design (CAD) tools, including tolerance stack-up calculators, facilitate virtual simulation and calculation of tolerance stacking. These CAD/CAE tools empower engineers to detect issues or complications early in the design phase.

Engineers can seamlessly choose from various tolerance stacking methods, identify all potential tolerance chains within the part, and make necessary adjustments to engineering drawings. Tools such as the tolerance stack-up calculator drive innovation within the manufacturing industry, enabling engineers to implement precision manufacturing techniques like 6-Sigma with confidence.

FAQs


Q: What is RSS tolerance?

A: RSS tolerance stands for Root Sum-Squared tolerance, a statistical method used in tolerance analysis. It calculates the overall tolerance of a part by summing the squares of individual tolerances and then taking the square root of the sum.

Q: What is RSS tolerance analysis?

A: RSS tolerance analysis is a statistical technique employed to estimate the probability distribution of deviations in each tolerance dimension. It utilizes the Root Sum-Squared method to compute the assembly tolerance, providing a realistic assessment of potential quality test failures.

Q: What is RSS tolerance stack up?

A: RSS tolerance stack up involves using the Root Sum-Squared method to analyze the cumulative effect of geometric tolerances on interconnected features. It helps ensure that the overall tolerance of a part remains within acceptable limits, considering the variability of individual dimensions.

Q: What is RSS tolerancing?

A: RSS tolerancing is a methodology that employs statistical analysis, specifically the Root Sum-Squared method, to determine tolerance specifications for manufacturing processes. It allows engineers to account for variations in dimensions and ensure consistent product quality.

Q: Can you provide a tolerance stack up example?

A: Certainly. Let’s consider a simple example of a mechanical assembly with multiple components. Each component has its tolerance specifications for dimensions such as length, width, and height. By applying tolerance stack up analysis, engineers can determine the overall tolerance of the assembly, considering the cumulative impact of individual component tolerances. This ensures that the assembly fits together correctly within specified tolerances.
