Causes & Solutions of Injection Molding Defects

The injection molding process poses challenges, particularly concerning defects that may compromise product quality. Recognizing and resolving these defects is vital for manufacturers to ensure quality, minimize waste, and enhance production efficiency.

This comprehensive guide delves into prevalent issues in injection molding, exploring their root causes and proposing effective solutions for optimal results.

Causes & Solutions of Injection Molding Defects插图

Common Injection Molding Defects

Despite its efficiency and versatility, injection molding presents specific challenges, notably defects that can affect the quality and functionality of finished products.

These defects not only jeopardize the appearance and structural integrity of components but also underscore the intricacies of the injection molding procedure. Understanding the reasons behind these defects is crucial for mitigating them and guaranteeing the production of flawless, high-quality parts.

Flow Lines

Among the most conspicuous defects in injection-molded components are flow lines, characterized by streaks or lines on the surface.

These lines often exhibit a distinct color or hue compared to the surrounding material, indicative of differential cooling rates during solidification.

Description and Visual Characteristics

Flow lines manifest as patterns resembling waves on the surface of molded parts, occasionally appearing as concentric circles near the gates. Their presence typically signifies disparities in the flow velocity of molten plastic within the mold cavity.

Causes of Flow Lines

Multiple factors contribute to the formation of flow lines, encompassing injection speed, pressure, and plastic temperature. Inadequate injection speed or low pressure can induce premature cooling, resulting in the development of these undesirable features.

Prevention and Remediation Strategies for Flow Lines

Modulating injection speed and pressure can substantially alleviate flow line occurrence. Elevating plastic and mold temperatures promotes uniform flow and solidification.

Strategic gate placement and mold design optimization facilitate smoother material flow, effectively preempting flow line formation.

Sink Marks

Depressions or indentations on the surface of injection-molded components, sink marks typically manifest in thicker regions where outer layers solidify before inner material.

Sink marks denote voids resulting from inadequate pressure in the mold cavity during cooling and solidification phases, prevalent in designs with variable wall thicknesses.

Causes of Sink Marks

Differential cooling rates between thick and thin sections primarily induce sink marks. Insufficient pressure during the packing stage of injection molding exacerbates this defect.

Prevention and Remediation Strategies

To forestall sink marks, ensure uniform wall thickness in part design. Fine-tune holding pressure and duration to counteract material shrinkage in thicker areas. Moreover, optimizing mold cooling systems promotes uniform cooling, markedly diminishing sink mark occurrence.

Surface Delamination

Surface delamination is a defect characterized by the splitting or peeling of the molded part’s surface, exposing underlying layers. This defect not only compromises aesthetics but also undermines structural integrity.

Delamination occurs when superficial layers of the plastic part separate from the substrate, often indicating inadequate bonding between material layers.

Factors Contributing to Delamination

Contaminants present in the plastic material, such as foreign particles or moisture, are primary contributors to delamination. Suboptimal material preparation, including inadequate drying of hygroscopic resins, can exacerbate this defect.

Preventive Measures for Delamination

Ensuring proper drying and contamination-free status of plastic resin are pivotal in delamination prevention. Fine-tuning mold temperature to optimize material flow and bonding is beneficial. Moreover, utilizing a more uniform material blend and minimizing excessive mold release agents mitigate the risk of surface delamination.

Weld Lines (Knit Lines)

Weld lines, alternatively termed knit lines, arise when two molten plastic flow fronts converge and solidify incompletely. These lines manifest as discernible marks on the surface of injection molded components, potentially compromising both aesthetic appeal and structural integrity.

Causes of Weld Lines

Multiple factors contribute to weld line formation, encompassing mold design, injection process velocity, and plastic material properties. Inadequate mold venting and deficient injection pressure may exacerbate the emergence of these imperfections.

Preventive Strategies and Remedies

Enhancing mold design for uniform plastic flow substantially mitigates weld line occurrence. Fine-tuning injection velocity and pressure, coupled with judicious material selection, fosters successful merging of molten plastic fronts. Modulating mold and material temperatures also aids in minimizing these defects.

Managing Short Shots in Injection Molding

Short shots occur when molten plastic fails to completely fill the mold cavity, resulting in incomplete parts. This defect leads to material and time wastage, impacting production efficiency.

Causes of Short Shots

Insufficient injection pressure or velocity, inaccurate shot size calculation, and inadequate plastic material heating are common culprits for short shots. Additionally, intricate mold designs featuring thin walls or distant cavities pose challenges to complete mold filling.

Prevention and Remediation Strategies for Short Shots

Optimizing injection pressure and velocity effectively mitigates short shots. Ensuring proper plastic material temperature for optimal flow and adjusting shot size calculations tailored to specific mold designs are crucial measures. Simplifying mold design or incorporating multiple injection points can also avert this defect.

Managing Warping in Injection Molding

Causes & Solutions of Injection Molding Defects插图1

Warping, a distortion occurring during part cooling and solidification, often stems from disparate cooling rates within the part, inducing internal stresses that deform the final product.

Preventive Measures for Warping

Uniform cooling across the part is pivotal in warping prevention. Achieving this entails designing molds with consistent wall thicknesses and optimizing cooling channel arrangements. Regulating mold and material temperatures, alongside fine-tuning cooling duration, aids in preserving the part’s intended geometry.

Managing Jetting in Injection Molding

Jetting manifests as snake-like lines or streaks on molded part surfaces, resulting from high-speed injection of molten plastic into the mold cavity.

Causes of Jetting

This defect arises when molten plastic material forcefully impacts the mold wall, prematurely cooling and solidifying before complete cavity filling.

Preventive Measures for Jetting

Preventing jetting necessitates precise adjustments to injection speed and pressure, ensuring controlled molten plastic entry into the mold cavity. Enhancing gate design for smoother material flow and optimizing mold and material temperatures significantly reduce jetting occurrence.

Remedial Strategies for Jetting Effects: Addressing jetting entails mold design review, focusing on gate location and size for uniform plastic distribution. Fine-tuning processing parameters—such as injection speed, pressure, and temperature—mitigates jetting risk. Elevated mold temperature, reducing molten plastic viscosity, facilitates smoother cavity fill, effectively combating jetting.


Strategies for Mitigating Vacuum Voids

Vacuum voids, which manifest as air pockets within molded parts, stem from trapped air failing to evacuate the mold cavity during the injection process. Identification and resolution of the root causes are imperative due to the potential compromise on both structural integrity and visual appeal of the parts.

Ensuring adequate venting in mold design is paramount to facilitating the release of trapped air from the mold cavity. Moreover, optimization of mold and melt temperatures promotes enhanced flow and filling patterns, thereby diminishing the likelihood of air entrapment.

Adjustment of injection speed and pressure to guarantee complete filling of the mold cavity with molten plastic, sans air entrapment, serves as a preventive measure against vacuum void formation.

Addressing Discoloration in Injection-Molded Parts

Discoloration in injection-molded parts arises from various factors, such as plastic material degradation due to excessive heat, contamination with foreign substances, or issues pertaining to the colorant used.

This visible defect adversely impacts the aesthetic appeal of the part and often hints at underlying concerns within the molding process or material handling.

Preventive Measures against Discoloration

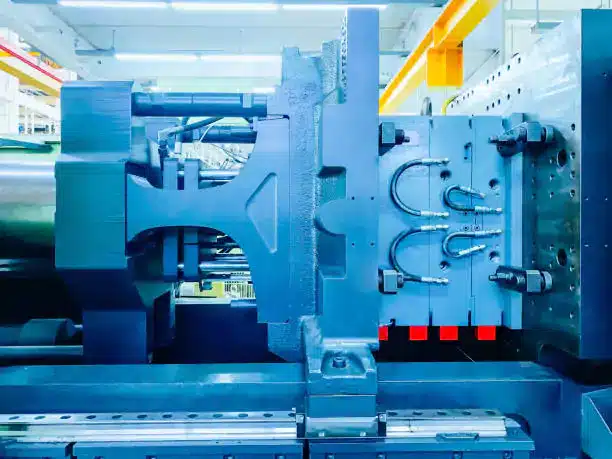

Causes & Solutions of Injection Molding Defects插图2

Vigilant monitoring and precise control of mold and plastic material temperatures are crucial to thwarting overheating and material degradation, thus averting discoloration. Ensuring proper drying and contamination-free status of the plastic material before deployment also contributes to sustaining color consistency.

Furthermore, the utilization of premium-quality colorants, meticulously mixed with the plastic resin, ensures uniform distribution of color throughout the part.


Flash Reduction Techniques

Flash, commonly referred to as burrs or spew, denotes the thin layers of plastic that escape from the mold cavity, typically observed along the parting line, ejector pins, and gate areas.

This surplus material occurrence results from molten plastic infiltrating the minute gaps between mold components due to elevated injection pressure or inadequate clamping force.

Strategies for Flash Minimization

To curtail flash, ensuring precise alignment of the mold and adequate clamping force to counteract injection pressure is imperative. Regular mold maintenance and inspection to detect and rectify any damages or wear significantly mitigate the occurrence of flash.


Gate Residue Reduction

The term “gate residue” pertains to the small plastic fragment that remains attached to the part subsequent to its ejection from the mold, representing a residue of the gate passage through which molten plastic is introduced into the mold cavity. Despite its often negligible size, it may pose challenges to the fit, function, or visual appeal of the end product.

Strategies for Mitigating Gate Residue

Efforts aimed at minimizing gate residue entail refining the gate design and optimizing parameters within the injection molding process. Implementation of sub-gate or tunnel gate configurations enables automatic trimming during ejection, thereby reducing manual intervention, enhancing the appearance, and ensuring uniformity across the final product.


Defects Arising from Injection Molding Materials

Material defects occurring in injection molding exert a significant impact on the quality and durability of produced components. These defects often stem from the intrinsic properties of the plastic material utilized, the processing conditions employed, and the methodologies applied throughout the molding and cooling stages.

Material Deterioration

Material deterioration ensues when the polymer undergoes breakdown attributed to excessive heat, shear stress, or exposure to chemical substances. Such degradation precipitates a loss of mechanical properties, discoloration, and a decline in the overall standard of the injection-molded component.

Preventive Measures for Material Deterioration in Injection Molding

Prevention of material deterioration necessitates meticulous control of processing conditions. This encompasses vigilant monitoring and optimization of parameters such as melt temperature, injection speed, and back pressure to avert overheating and mitigate excessive shear forces. Moreover, ensuring the dryness and proper handling of the material before processing contribute to upholding its integrity.

Brittleness

Brittleness manifested in injection-molded components denotes an inadequacy of material flexibility, rendering them susceptible to cracking or fracturing under stress. This phenomenon may arise from inappropriate material selection, excessive cooling rates, or an overabundance of regrind material, which could compromise the polymer’s structural stability.

Strategies to Address Brittleness

Addressing brittleness necessitates meticulous material selection tailored to meet the specific strength and flexibility requisites of the application. Adjusting processing parameters to facilitate adequate cooling devoid of abrupt temperature fluctuations is also imperative. Furthermore, restricting the usage of regrind material and ensuring the material’s dryness before processing serve to enhance the component’s resilience.


Defects Arising from Mold Design and Maintenance

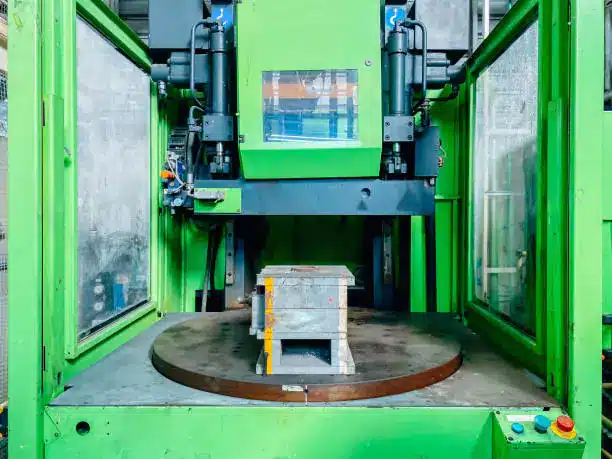

Causes & Solutions of Injection Molding Defects插图3

The efficacy of injection molding operations hinges upon optimal mold design and consistent maintenance practices, directly influencing the quality of manufactured components and the operational efficiency.

Substandard Mold Design

Subpar mold design precipitates an array of defects, encompassing warping, sink marks, and weld lines. Factors such as inadequate venting, improper gate positioning, or inappropriate runner systems engender irregular material flow and cooling, yielding components that deviate from specified standards.

Fundamentals of Effective Mold Design

Effective mold design mandates a thorough grasp of material characteristics, part geometry, and intended application. Core principles entail maintaining uniform wall thickness, strategic gate and runner placement, and ensuring sufficient venting to forestall defects. Leveraging simulation tools proves invaluable in preemptively identifying and rectifying potential concerns prior to mold fabrication.

Insufficient Mold Maintenance

Regular maintenance is imperative in forestalling mold wear and damage, which can precipitate defects. Neglecting maintenance engenders issues like misalignment, surface degradation, and residue accumulation, all of which compromise component quality.

Maintenance Strategies for Defect Prevention

Adherence to a structured maintenance regimen, encompassing cleaning, inspection, and repair of the mold, markedly diminishes defect risks. Particular emphasis should be placed on areas vulnerable to wear and tear, with prompt replacement of any damaged components to uphold component quality.


A Methodical Approach to Identifying and Resolving Injection Molding Defects

Efficient identification, verification, and troubleshooting of injection molding defects demand a systematic methodology to diagnose and rectify common issues impacting molded part quality.

This structured approach empowers manufacturers to effectively navigate these challenges, thereby guaranteeing the production of components of impeccable quality.

Visual Inspection

Commence with a comprehensive visual inspection of the part to detect any discernible defects such as flash, weld lines, or discoloration.

Review of Processing Parameters

Scrutinize the settings of the injection molding machine, encompassing injection pressure, speed, and temperature, to ensure their alignment with material requirements and part design specifications.

Assessment of Material Quality

Conduct a meticulous assessment of the quality and integrity of the plastic resin, verifying its dryness and freedom from contaminants.

Mold Inspection

Thoroughly inspect the mold for indications of wear, damage, or inadequate venting that could potentially contribute to defects in the molded parts.

Utilization of Simulation Software

Leverage simulation software to forecast and analyze the flow dynamics of molten plastic within the mold, thereby preemptively identifying and addressing potential issues before they manifest during production.
