How does the Iron Carbon Phase Diagram work and what is its definition

The iron-carbon phase diagram is a fundamental tool utilized in materials science and metallurgy to comprehend the microstructure of iron and its alloys under various temperature and carbon content conditions. This graphical representation serves as a roadmap, providing valuable insights into the behavior of these materials.

Carbon’s Role in Microstructure Formation

Carbon content plays a pivotal role in determining the microstructure of iron and its alloys. The presence of carbon affects the arrangement of atoms within the material, influencing its mechanical and physical properties. However, it’s essential to note that the significance of carbon may diminish under certain conditions, such as rapid heating or cooling, or when other alloying elements are introduced.

In addition to the iron-carbon phase diagram, several related terms and diagrams exist, each offering unique perspectives on the microstructural behavior of iron and steel alloys.

Metastable Iron-Carbon Phase Diagram:

This variation of the phase diagram highlights the metastable nature of iron-carbon alloys, which arises due to slow cooling rates during processing. Understanding metastable phases is crucial for predicting material properties and performance.

Fe-C Phase Diagram:

The Fe-C phase diagram serves as the abbreviation for the iron-carbon phase diagram and is commonly used in scientific literature and discussions within the field of metallurgy.

Steel Phase Diagram:

While closely related to the iron-carbon phase diagram, the steel phase diagram specifically focuses on the microstructural evolution of steel alloys. Steel, being an iron-carbon alloy with additional alloying elements, exhibits a wide range of microstructures and properties, making its phase diagram a vital tool for engineers and metallurgists.

Iron-Iron Carbide Phase Diagram (Fe-Fe3C):

This diagram zooms in on the segment of the iron-carbon system that involves the formation of iron carbide (Fe3C), commonly known as cementite. Understanding the equilibrium phases and transformations within this segment is essential for designing heat treatments and optimizing material properties in steel production.

Origin of the Iron Carbon Phase Diagram

Development and Evolution

The iron-carbon phase diagram has its roots in the extensive studies conducted by various researchers over the years. However, Sir William Chandler Roberts-Austen’s seminal work in 1897 stands out as a milestone, laying the foundation for our understanding of phase transformations in iron-carbon alloys. His meticulous experiments and observations provided invaluable insights into the complex interplay between temperature, carbon content, and microstructural changes.

Roberts-Austen’s T-x Diagram

Roberts-Austen’s pioneering efforts culminated in the development of the T-x diagram, a precursor to the modern iron-carbon phase diagram. Although not in full equilibrium, this early graphical representation offered a glimpse into the relationship between temperature and composition in iron-carbon systems. Through his T-x diagram, Roberts-Austen set the stage for future researchers to delve deeper into the intricate mechanisms governing phase transformations in metallic alloys.

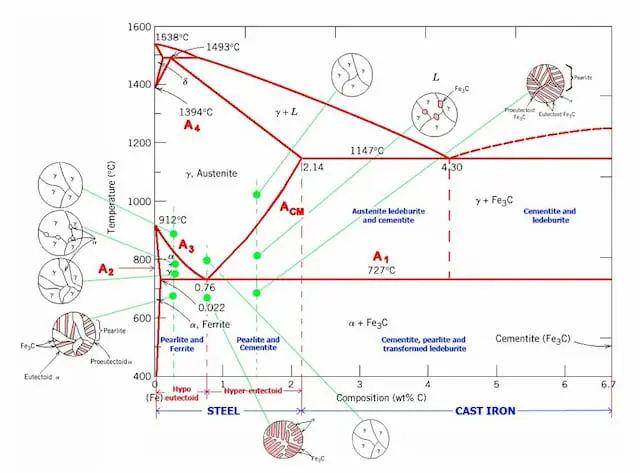

Working Principles Unveiled

Axes Representation

At the heart of the iron-carbon phase diagram lies a simple yet powerful representation of temperature and carbon content along the Y and X axes, respectively. This Cartesian coordinate system provides a framework for visualizing the complex interactions between these two critical variables, allowing researchers to map out the intricate phase transformations occurring within the material.

Segmented Phases

The iron-carbon phase diagram delineates various phases of microstructure based on temperature and chemical composition. From austenite to ferrite, pearlite, and beyond, each phase represents a distinct configuration of atoms and exhibits unique mechanical and thermal properties. By segmenting these phases within the diagram, researchers gain invaluable insights into the material’s behavior under different processing and environmental conditions.

Influence of Conditions

Microstructure is not static but rather dynamic, evolving in response to changes in temperature and chemical composition. The iron-carbon phase diagram vividly illustrates how altering these conditions can lead to profound transformations in the material’s structure and properties. Whether through heat treatment processes or alloying additions, engineers can leverage this understanding to tailor the microstructure to meet specific performance requirements.


Microstructural Understanding: The iron-carbon phase diagram stands as a cornerstone in materials science, offering unparalleled insights into the behavior of iron and its alloys across a spectrum of conditions. At its core, the diagram serves as a visual roadmap, elucidating how microstructural transformations unfold in response to variations in temperature and carbon content. This nuanced understanding is indispensable for engineers and researchers alike, providing a solid foundation upon which to design and optimize materials for a multitude of applications, from structural components to electronic devices.

Clarification: Within the realm of metallurgy, clarity is paramount, especially when communicating complex phenomena such as austenite transformation. By mapping out the intricate relationship between temperature and carbon content, the iron-carbon phase diagram provides a common language for describing and analyzing these phenomena. Whether elucidating the kinetics of phase transformations or predicting the mechanical properties of a steel alloy, the diagram serves as a universal reference point, facilitating clear and precise communication among researchers, engineers, and stakeholders across industries.

Phases in the Iron Carbon Phase Diagram


Characteristics: δ-Ferrite represents a low-carbon phase within the iron-carbon phase diagram, characterized by a body-centered cubic (BCC) crystal structure. With its relatively open lattice, δ-ferrite exhibits magnetic properties and possesses ductility, albeit with low strength compared to other phases.

Transformation: This phase transforms into austenite upon heating above 912°C, marking a critical transition in the material’s microstructural evolution. Understanding this transformation is essential for controlling the mechanical properties of iron-carbon alloys during heat treatment processes.

Properties: Despite its modest strength, δ-ferrite’s ductile nature makes it valuable in certain applications, particularly in materials where formability and machinability are prioritized over mechanical robustness.


Characteristics: γ-Austenite, characterized by a face-centered cubic (FCC) crystal structure, represents a high-temperature phase in the iron-carbon phase diagram. It is non-magnetic and exhibits relatively low hardness, rendering it soft and highly ductile compared to other phases.

Transformation: Above 1,395°C, γ-austenite undergoes transformation into ferrite, marking the onset of significant microstructural changes. This phase transition is crucial for understanding the behavior of iron-carbon alloys during processes such as casting and forging.

Properties: Despite its softness, γ-austenite plays a pivotal role in facilitating the formability of iron-carbon alloys, particularly in applications where shaping and manipulation are critical.


Characteristics: α-Ferrite represents a high-temperature phase that forms during the cooling of low-carbon liquid in iron-carbon alloys. With its ability to resist lattice dislocation, α-ferrite contributes to the material’s overall strength and resilience.

Effects: The presence of α-ferrite enhances the mechanical properties of iron-carbon alloys, reducing vulnerability to fatigue and improving overall structural integrity. Understanding its formation and behavior is essential for optimizing alloy compositions and heat treatment regimes to achieve desired performance characteristics.

Fe3C (Cementite):

Formation: Fe3C, commonly known as cementite, is a compound that forms above a certain threshold of carbon content in iron-carbon alloys, fully forming at approximately 7% carbon content. Its presence significantly influences the material’s mechanical properties and microstructural characteristics.

Properties: Cementite is inherently hard and brittle, contributing to the overall hardness and wear resistance of iron-carbon alloys. Despite its brittleness, under certain conditions, it can exhibit corrosion resistance, making it suitable for specific applications where hardness and durability are paramount.


Characteristics: Ledeburite represents a unique phase found in cast iron, characterized by a mixture of austenite and cementite. With a carbon content of approximately 4.3%, ledeburite exhibits distinctive microstructural properties and behaviors.

Carbon Content: The precise composition of ledeburite, with its intermediate carbon content, plays a critical role in determining its mechanical and thermal properties. Understanding the phase composition and its implications is essential for optimizing the performance of cast iron components.


Formation: Pearlite is a microstructural constituent that forms as a result of slow cooling in iron-carbon alloys, comprising alternating layers of ferrite and cementite. This lamellar structure imparts unique mechanical properties to the material.

Properties: Pearlite offers a balance of toughness and strength, making it highly desirable in engineering applications where resilience and durability are paramount. Its controlled formation through heat treatment processes enables engineers to tailor the material’s properties to specific requirements.


Formation: Martensite forms as a result of rapid cooling of austenite, bypassing equilibrium phase transformations. This non-equilibrium phase exhibits unique mechanical properties that differentiate it from other phases in the iron-carbon phase diagram.


Martensite is characterized by high hardness and strength, achieved through the quenching process. Its metastable nature makes it suitable for applications requiring exceptional wear resistance and hardness, such as in cutting tools and structural components subjected to high stress environments. Understanding the formation and behavior of martensite is crucial for optimizing heat treatment processes to achieve desired material properties.

Purpose of Heat Treatment in the Context of the Iron-Carbon Phase Diagram

Altering Microstructure

Heat treatment stands as a fundamental process in metallurgy, serving to modify the microstructure of alloys, including those within the iron-carbon system. By subjecting materials to controlled heating and cooling cycles, engineers can induce specific phase transformations outlined in the iron-carbon phase diagram. This deliberate manipulation of microstructure enables the tailoring of mechanical, thermal, and electromagnetic properties to meet desired performance criteria across various applications.

Impact of Cooling Rate

One of the key parameters influencing heat treatment outcomes is the cooling rate employed during quenching. Varying cooling rates result in distinct microstructural configurations, exemplified by the formation of pearlite at different cooling rates and the rapid quenching leading to the formation of martensite. Understanding these nuances allows engineers to strategically select heat treatment parameters to achieve desired material properties, whether enhancing hardness and wear resistance or optimizing toughness and ductility for specific applications.

Significance of Critical Temperature (A1) in the Iron-Carbon Phase Diagram

Critical Temperature

Within the iron-carbon phase diagram, the critical temperature denoted as A1 holds particular significance. At 723°C, this critical point marks the transformation of austenite into eutectoid pearlite during cooling. Understanding the implications of A1 is essential for predicting and controlling phase transitions in iron-carbon alloys, as it delineates the boundary between different microstructural regimes. By precisely managing temperature conditions around A1 during heat treatment processes, engineers can manipulate phase transformations to achieve desired material properties with precision.

Different Reactions in the Iron Carbon Phase Diagram

Eutectoid Reaction

One of the fundamental reactions depicted in the iron-carbon phase diagram is the eutectoid reaction. At the eutectoid point, characterized by 0.8% weight carbon and 723°C, austenite undergoes transformation into ferrite and cementite. This reaction plays a pivotal role in determining the microstructural composition of iron-carbon alloys during cooling, influencing their mechanical properties and overall performance characteristics.

Eutectic Reaction

Another critical reaction observed in the iron-carbon phase diagram is the eutectic reaction. At specific compositions and temperatures, the liquid phase within the alloy undergoes transformation into two distinct solid phases. Understanding the kinetics and thermodynamics governing this reaction is crucial for optimizing casting processes and controlling the microstructural evolution of alloys, particularly in foundry applications where precise control over solidification behavior is essential.

Peritectic Reaction

In addition to the eutectoid and eutectic reactions, the iron-carbon phase diagram also illustrates the peritectic reaction. This reaction involves the combination of molten and solid phases to form a secondary solid phase. By elucidating the conditions under which peritectic reactions occur, engineers can tailor processing parameters to optimize alloy microstructures and enhance material properties. This understanding is particularly relevant in alloy design and manufacturing processes where the formation of specific secondary phases is desired to impart unique properties to the final product.

Utilization by Engineers and Metallurgists

Predictive Tool: The iron-carbon phase diagram serves as a foundational predictive tool for engineers and metallurgists, enabling them to anticipate the material phase states under specific heat treatment conditions and compositions. By referencing the diagram, practitioners can strategically design heat treatment processes to achieve desired microstructural configurations, ensuring optimal material performance for diverse applications across industries.

Property Prediction: Leveraging insights gleaned from the phase diagram, engineers can forecast mechanical properties such as hardness and brittleness, facilitating informed material selection and design. By correlating phase compositions with corresponding mechanical behaviors, practitioners can tailor alloys to meet specific performance criteria, whether prioritizing strength, toughness, or wear resistance. This predictive capability enhances the efficiency and effectiveness of materials engineering, empowering practitioners to develop innovative solutions to complex engineering challenges.

Influence of Quenching Rate on Steel Alloy Microstructure

Quenching Objective

Quenching, a critical step in heat treatment processes, aims to impart desirable mechanical properties to steel alloys by rapidly cooling them from elevated temperatures. By subjecting the alloy to a controlled quenching rate, engineers can effectively trap carbon atoms within the lattice structure, enhancing hardness and strength while minimizing ductility and toughness. Understanding the interplay between cooling rate and microstructural evolution is essential for optimizing quenching processes to achieve desired material properties.

Martensitic Transformation

One of the most significant consequences of rapid quenching is the formation of martensite, a metastable phase characterized by its high hardness and brittleness. Through the martensitic transformation, carbon atoms are effectively trapped within the iron lattice, creating a supersaturated solid solution with enhanced hardness. While martensite offers exceptional wear resistance and hardness, its inherent brittleness can compromise the material’s overall mechanical performance. To mitigate this brittleness, engineers often employ tempering processes, wherein the martensitic structure is selectively reheated to induce controlled structural changes, reducing brittleness while preserving hardness and strength.

Prediction of Mechanical Properties Using the Iron-Carbon Phase Diagram

Phase State Determination

The iron-carbon phase diagram serves as a powerful tool for predicting mechanical properties by enabling engineers to determine the alloy’s phase states under specific heat treatment conditions. By correlating phase compositions with mechanical behaviors, practitioners can anticipate properties such as hardness, ductility, and strength, crucial for informed material selection and design. This predictive capability enhances the efficiency and effectiveness of materials engineering, facilitating the development of high-performance alloys tailored to meet the demands of diverse applications.


An illustrative example of utilizing the iron-carbon phase diagram for predicting mechanical properties involves heating and quenching a 0.8% carbon steel above 723°C. At this temperature, the steel undergoes the eutectoid reaction, transforming austenite into martensite upon rapid quenching. Martensite, characterized by its supersaturated carbon content and lattice distortion, exhibits exceptionally high hardness, making it suitable for applications requiring wear resistance and cutting-edge retention. By referencing the phase diagram, engineers can anticipate the formation of martensite and predict the resulting mechanical properties, guiding material selection and heat treatment processes for optimal performance.

Types of Steel and Their Applications

High-Carbon Steel

High-carbon steels, characterized by carbon content exceeding 0.6%, exhibit exceptional hardness and strength, making them ideal for applications requiring cutting, shaping, or high-wear resistance. Common uses include cutting tools, dies, high-strength wire, and specialized machinery components where hardness and durability are paramount. The ability to predict mechanical properties using the iron-carbon phase diagram enables engineers to tailor high-carbon steel alloys to meet specific performance requirements, ensuring optimal performance in demanding applications.

Medium-Carbon Steel

Medium-carbon steels, typically containing carbon content ranging from 0.3% to 0.6%, strike a balance between hardness and ductility, making them versatile materials for a wide range of applications. With moderate strength and toughness, medium-carbon steels find use in pressure vessels, gears, shafts, and structural components requiring a combination of strength and formability. By leveraging the predictive capabilities of the iron-carbon phase diagram, engineers can optimize alloy compositions and heat treatment processes to achieve the desired balance of mechanical properties, ensuring reliable performance in critical applications.

Low-Carbon Steel

Low-carbon steels, characterized by carbon content below 0.3%, offer excellent ductility and malleability, making them highly versatile materials for general-purpose applications. With relatively low strength and hardness, low-carbon steels are commonly used in construction, automotive manufacturing, pipework, and structural frameworks where formability, weldability, and ease of fabrication are essential. By harnessing the predictive power of the iron-carbon phase diagram, engineers can tailor low-carbon steel alloys to meet specific design requirements, optimizing performance while minimizing material costs and manufacturing complexities.

Advantages, Disadvantages, and Accuracy of the Iron-Carbon Phase Diagram

Advantages of the Iron-Carbon Phase Diagram

Easy Interpretation: One of the primary advantages of the iron-carbon phase diagram lies in its ease of interpretation. Unlike complex mathematical models or abstract theoretical frameworks, phase diagrams offer a visual representation that is relatively straightforward to comprehend. This accessibility makes the diagram accessible to a wide range of practitioners, from seasoned metallurgists to novice engineers, facilitating informed decision-making and enhancing collaboration in materials engineering projects.

Comprehensive Information

The iron-carbon phase diagram provides a wealth of comprehensive information on the microstructural evolution of iron and its alloys, supported by decades of rigorous research and experimentation. By accurately delineating the boundaries between different phases and depicting phase transformations with precision, the diagram offers invaluable insights into the material’s behavior under varying conditions of temperature and composition. This comprehensive information serves as a foundational tool for materials scientists and engineers, enabling them to design and optimize alloys for diverse applications with confidence.

Disadvantages of the Iron-Carbon Phase Diagram

Incomplete Information

Despite its merits, the iron-carbon phase diagram suffers from certain limitations, chief among them being the omission of non-equilibrium phases such as martensite. Additionally, the diagram lacks time-dependent data, failing to capture transient phenomena and dynamic processes that occur during rapid cooling or heating cycles. This incomplete information can pose challenges in certain applications, particularly in scenarios where precise control over phase transformations and microstructural evolution is essential for achieving desired material properties.

Limited Property Details

Another drawback of the iron-carbon phase diagram is its limited ability to provide detailed information about the mechanical, thermal, and electromagnetic properties of individual phases. While the diagram accurately depicts phase compositions and transformations, it does not specify the exact properties of each phase, such as hardness, ductility, or electrical conductivity. As a result, engineers may need to supplement their analysis with additional experimental data or computational modeling to fully characterize the material’s performance under specific conditions.

Accuracy of the Iron-Carbon Phase Diagram

Generally Accurate

Despite its limitations, the iron-carbon phase diagram is generally regarded as a reliable tool for understanding the microstructural behavior of iron and its alloys. With roots dating back to pioneering research by Sir William Chandler Roberts-Austen and subsequent refinements by countless scientists, the diagram benefits from a robust foundation supported by empirical evidence and theoretical principles. However, it’s important to note that the accuracy of individual phase diagrams may vary based on factors such as the quality of experimental data, the methodology used for construction, and the validity of underlying assumptions.


While the iron-carbon phase diagram offers valuable insights into the macroscopic behavior of iron-carbon alloys, it is not without its limitations. Certain phases, such as bainite and martensite, which are crucial for understanding the mechanical properties of quenched and tempered steels, are not explicitly included in the diagram. Furthermore, the diagram lacks time-dependent information, making it less suitable for predicting transient phenomena or dynamic processes that occur during rapid cooling or heating cycles. As such, engineers must exercise caution and supplement their analysis with additional data and modeling techniques to account for these limitations effectively.
