The iPhone Pros have traditionally featured aluminum and stainless steel frames, a design choice that has occasionally led to customer dissatisfaction due to increased device weight. However, the latest iterations, the iPhone 15 Pro and iPhone 15 Pro Max, diverge from this norm by integrating brushed Grade 5 titanium frames.
While titanium presents numerous advantages, its machining poses certain challenges. Consequently, one may wonder why Apple opted for titanium for the iPhone 15 Pros and what advantages it offers over steel. This article aims to address these queries by exploring the properties of Grade 5 titanium and discussing the intricacies of machining this material, along with offering practical advice for achieving optimal results.
Overview of iPhone 15 Pros
With the integration of titanium into the iPhone 15 and 15 Pro Max models, a host of enhancements have been introduced. Here are some of the notable advancements:
Brushed Finish
The adoption of titanium in the iPhone 15 Pro ushers in a significant visual shift in the chassis presentation. Previous iPhone Pro iterations featured highly polished stainless steel chassis, resulting in a reflective, mirror-like surface. However, the iPhone 15 Pro showcases a brushed finish, markedly reducing reflectivity compared to its predecessors.

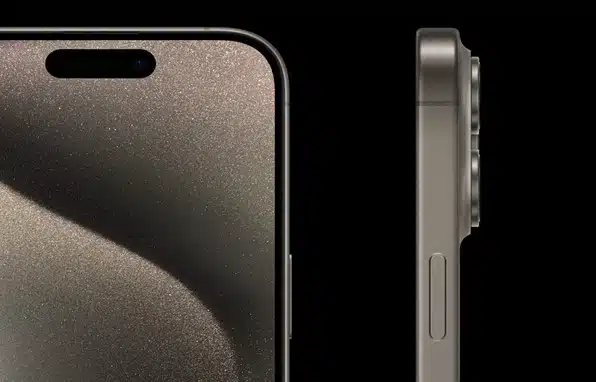

The meticulously crafted brushed texture on the titanium bands is achieved through a precise process involving machining, sanding, brushing, and blasting. Additionally, the iPhone 15 Pro boasts refined contoured edges and the slimmest borders ever witnessed on an iPhone, enhancing its ergonomic profile during handling.
Furthermore, the new brushed texture is poised to render scratches less conspicuous on the devices while augmenting resistance to fingerprints, making them less perceptible. Additionally, it facilitates easier removal of fingerprints compared to steel or glossy finishes.
Reduction in Device Weight
The advantage of reduced weight becomes immediately apparent upon handling the device. Despite possessing strength equivalent to stainless steel, titanium weighs merely half as much. Consequently, the titanium chassis is anticipated to contribute to lighter devices. Specifically, the iPhone 15 Pro and 15 Pro Max weigh approximately 18 grams less than their predecessors, marking a substantial 10% reduction in weight.
New Titanium Gray Color Option

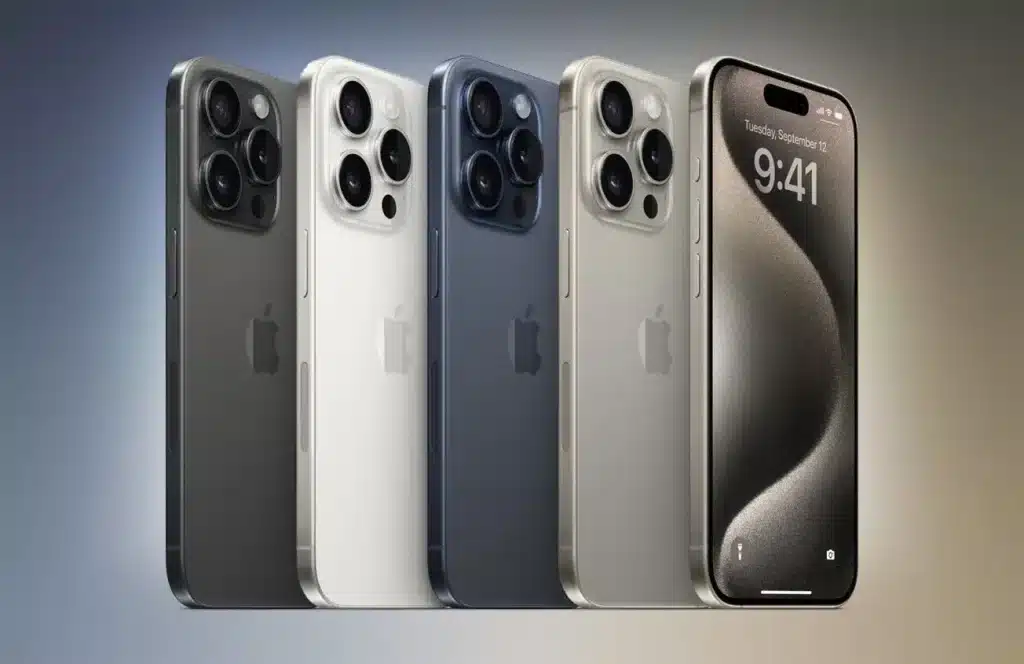

The inclusion of titanium influenced the palette of color options considered for the iPhone 15 Pro and 15 Pro Max. The updated color lineup comprises:
- Space Black / Space Gray
- Blue
- Silver
- Titanium Gray
Apple opted for a transition towards grayish hues for the iPhone 15 Pro lineup, introducing an internally labeled color variant dubbed “Titanium Gray.” As implied by its name, Titanium Gray closely mimics the natural color of titanium, positioning itself between Silver and the Space Black option in terms of darkness. This addition enriches the aesthetic choices available for the iPhone 15 Pro.

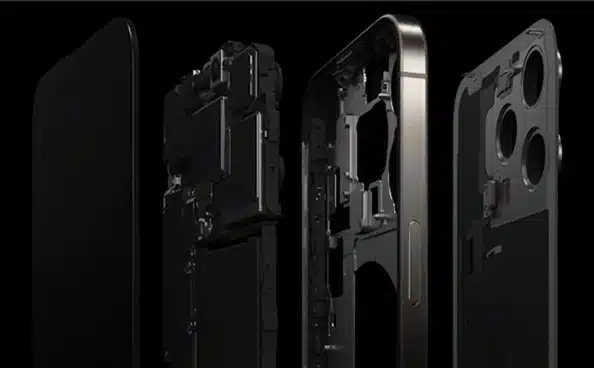

Evolution of iPhone Steel/Aluminum Frame to Titanium Frame
Apple’s gradual transition from aluminum to titanium signifies the culmination of a significant era in smartphone design. Over the past two decades, Apple has been instrumental in reshaping the landscape of materials utilized in smartphone construction. The inaugural iPhone, commonly known as the iPhone 2G, featured an aluminum frame, imbuing the device with a sleek and contemporary aesthetic coupled with reasonable durability. Subsequent iPhone iterations, including the 3G, 3GS, iPhone 6, 6 Plus, iPhone 7, 8 series, and iPhone 11 series, continued to adopt aluminum frames.
Apple ushered in a notable shift with the introduction of stainless steel frames with the iPhone 4 and 5, imparting a heightened sense of premium quality and durability to the devices. Following a hiatus, Apple reintroduced stainless steel frames with the iPhone X, XR, XS, and XS Max models. While standard iPhone 12, 13, and 14 models retained aluminum frames, the Pro variants returned to stainless steel frames.
In line with its commitment to enhancing device quality, durability, and aesthetics, Apple has embraced titanium frames with the iPhone 15 Pro and 15 Pro Max. Grade 5 titanium, renowned for its exceptional strength-to-weight ratio, emerged as a compelling choice for smartphone frames. But what distinguishes Grade 5 titanium?

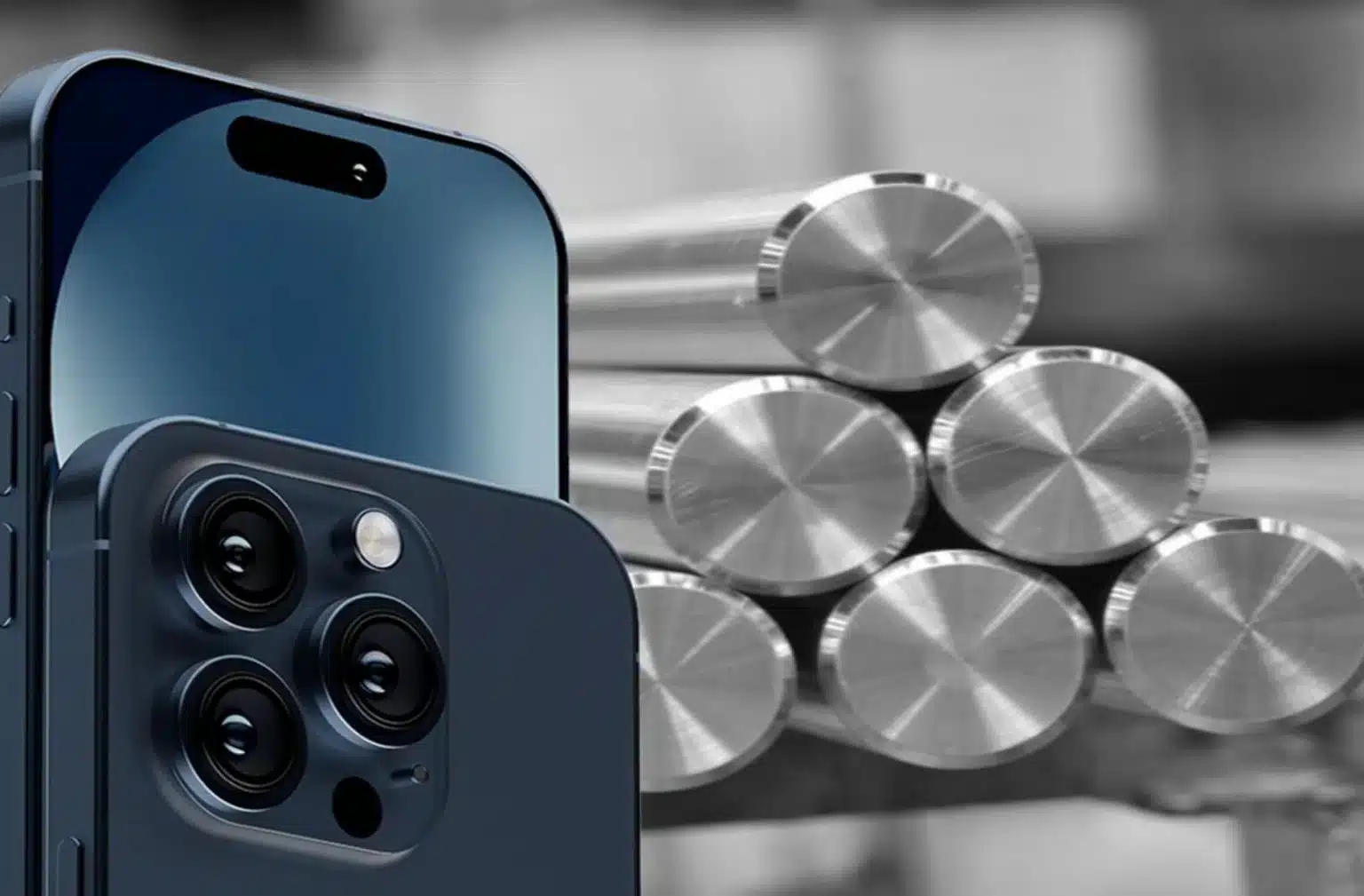

iPhone 15 Pro with Grade 5 Titanium: Exploring the Power of a Metal
Grade 5 Titanium, an alloy comprising titanium, 6% aluminum, and 4% vanadium (Ti-6Al-4V), boasts remarkable corrosion resistance, making it a preferred material across various industries. Apple’s adoption of Grade 5 Titanium for the iPhone 15 Pro can be attributed to its inherent lightweight, strength, and hardness.
Superior Strength-to-Weight Ratio
Titanium, particularly Grade 5 titanium, excels in the strength-to-weight ratio department, rivaling many steel variants while weighing only half as much. Although aluminum, utilized in prior iPhone models, offers lighter weight, it significantly lags behind in terms of strength. Balancing durability and portability is crucial for smartphone design, and Grade 5 titanium ensures sturdy resilience while minimizing weight, enhancing the overall user experience.
Corrosion Resistance
While both titanium and aluminum exhibit commendable corrosion resistance, titanium holds a distinct advantage, especially in corrosive environments rich in saline or chlorine. Grade 5 titanium’s exceptional corrosion resistance surpasses that of steel, particularly non-stainless variants or untreated steel. Moreover, Grade 5 titanium strikes a balance between flexibility and rigidity, rendering the iPhone 15 Pro more resistant to deformation and bending.
The exceptional corrosion resistance of Grade 5 titanium significantly contributes to the longevity and durability of devices like the iPhone 15 Pro. By withstanding harsh environmental conditions, Grade 5 titanium safeguards internal components, extending the device’s lifespan and ensuring sustained resilience.
Aesthetic Enhancement with Grade 5 Titanium
Grade 5 titanium enhances the aesthetic appeal of the iPhone 15 Pro models, imbuing them with a premium, high-end appearance. Its inherent natural luster and impeccably polished finish contribute to a sleek and luxurious feel, elevating the overall visual allure and perceived quality of the devices. This emphasis on premium aesthetics aligns seamlessly with Apple’s steadfast commitment to crafting visually striking and sophisticated products.
The incorporation of Grade 5 titanium expands the spectrum of color and finish options available for the iPhone 15 Pro lineup. From Space Black/Space Gray and Blue to Silver and Titanium Gray, the array of choices offers customers diverse aesthetic possibilities to cater to their individual preferences. These expanded options not only enhance the device’s visual appeal but also afford users the opportunity to select a finish that resonates with their unique style and taste.
Thermal Performance Optimization
Grade 5 titanium boasts a thermal expansion rate closely aligned with that of glass, a critical attribute when integrated into devices such as smartphones. Given that iPhone screens predominantly consist of glass, utilizing a metal with a thermal expansion profile akin to glass minimizes the risk of temperature-induced degradation. This compatibility ensures the stability and sustained performance of the device over time.
Efficient heat dissipation is paramount for mobile devices, aiding in the prevention of overheating and the maintenance of optimal performance, even in demanding usage scenarios. Moreover, the heat-treatable nature of Grade 5 titanium renders it exceptionally suited for various manufacturing applications. Its ease of welding and fabrication, coupled with its impressive combination of high strength and corrosion resistance, underscores its versatility and suitability for advanced technological endeavors.
Machining Titanium: Addressing Challenges and Implementing Solutions
Titanium, the material of choice for iPhone 15 Pros, offers myriad benefits to users. However, machining titanium effectively poses significant challenges. This section delves into the complexities involved and the strategies employed by manufacturers to surmount these hurdles.
Difficulties Arising from Material Properties
1. Low Thermal Conductivity:
Titanium’s low thermal conductivity poses a formidable challenge during machining. Heat generated in the machining process tends to accumulate in the work zone rather than dissipating efficiently. This accumulation can lead to temperatures exceeding 1000°C, resulting in wear, chipping, tool blunting, or even breakage. Machining components with thin walls exacerbates this challenge, as local deformation may exceed the elastic limit, leading to plastic deformation and increased material strength and hardness at the cutting point.
2. Work Hardening:
Titanium alloys, characterized by a hexagonal close-packed (HCP) crystal structure, are prone to work hardening. This process, which increases material hardness and strength through plastic deformation, poses challenges such as accelerated tool wear, heightened cutting forces, and reduced machinability. Additionally, work hardening introduces residual stresses within machined components, potentially causing issues like distortion, cracking, and reduced fatigue life.
3. Chemical Reactivity:
Titanium alloys exhibit reactivity with nitrogen, hydrogen, oxygen, and carbon at elevated temperatures, resulting in surface oxidation and potential contamination of machined parts. These outcomes can detrimentally affect corrosion resistance, fatigue strength, and biocompatibility. Moreover, titanium alloys tend to adhere to tool surfaces, forming a built-up edge, leading to issues like chipping, galling, and tool failure.
Addressing these challenges requires meticulous planning, advanced machining techniques, and specialized tooling. Implementing strategies such as cryogenic machining, adaptive machining strategies, and protective coatings can mitigate the adverse effects of titanium’s material properties, ensuring precise and efficient machining processes.

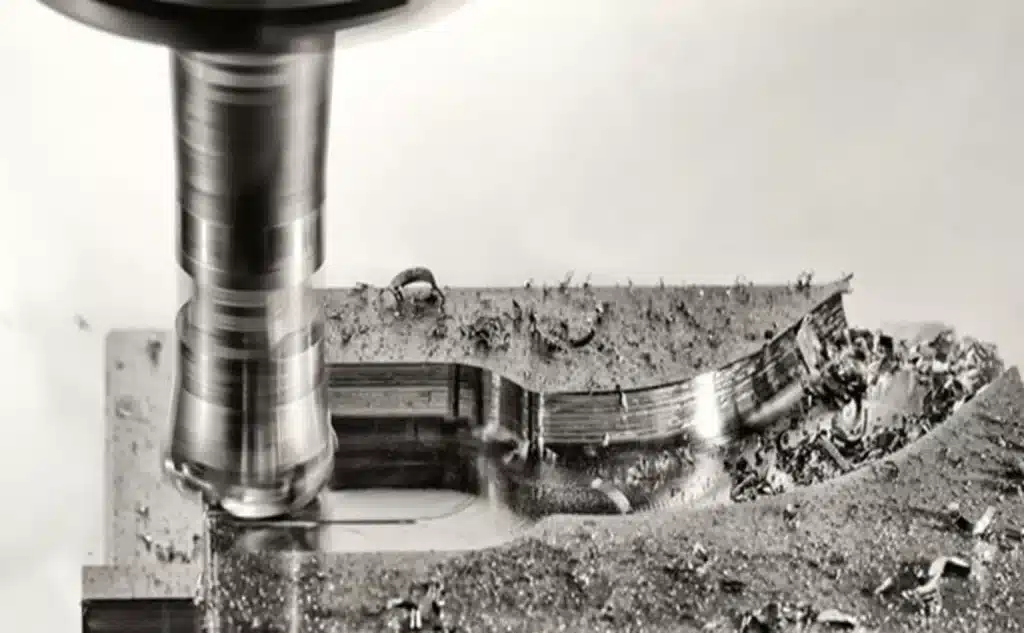

Overcoming Challenges in Machining Titanium
1. Management of Heat Generation
Titanium alloys, renowned for their strength, present significant challenges in machining, necessitating high cutting forces. Maintaining optimal temperatures during machining proves challenging due to their low thermal conductivity. Heat accumulation in both the tool and workpiece can result in vibration, accelerated tool wear, and the production of faulty parts. Furthermore, poor heat conduction may lead to expansion, distortion, and potential fire risks.
2. Mitigation of Vibration and Chatter
The elasticity of titanium alloys contributes to challenges during cutting, inducing vibrations and frictional heat generation. This exacerbates heat dissipation issues. Titanium’s low modulus of elasticity and high elongation at break value result in extended, thin chips that can damage cutting tools and leave surface marks on workpieces.
3. Enhancing Material Removal Rates
The inherent high strength and low thermal conductivity of titanium alloys hinder material removal rates. Additionally, the production of long, thin chips further complicates machining efficiency and tool wear. Employing precise machining techniques and specialized tooling becomes imperative to maintain productivity and overcome the challenges posed by titanium’s unique properties.
Advanced Machining Strategies for Titanium

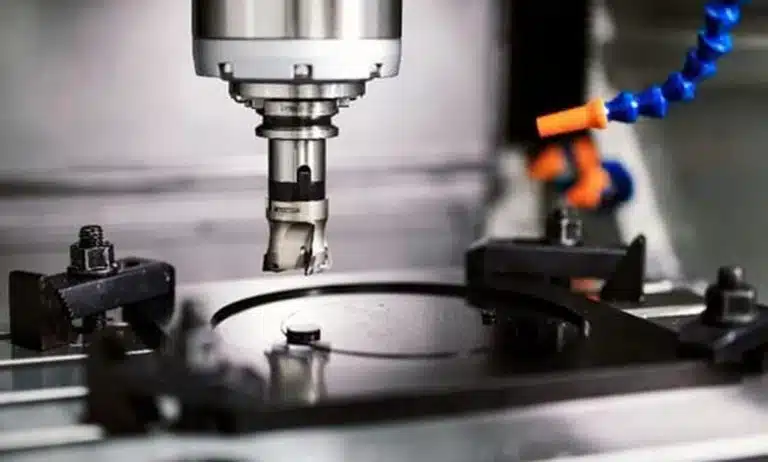

Responding to the escalating demand for titanium, machinists are actively pioneering innovative approaches to enhance the machinability of this metal. Below, we present practical tips aimed at achieving optimal outcomes:

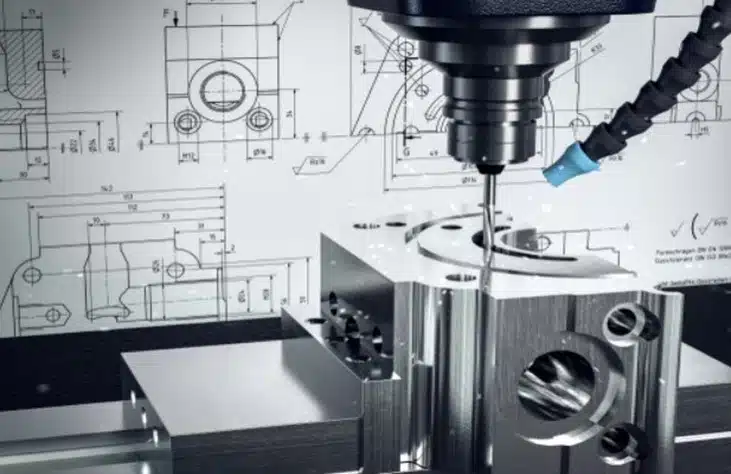

1. Utilize Cutting Tools with Robust Materials and Geometric Designs
Opt for high-quality, titanium-specific tools engineered to endure the rigors of machining this demanding material. Ensuring tools remain in prime condition through regular inspection and timely replacement of worn components is essential. Additionally, selecting tools with smaller diameters and increased cutting edges aids in maintaining a consistent workpiece removal rate while effectively managing heat generation.
2. Maintain Sharpness of Blade Edges
During machining, titanium molecules tend to accumulate in front of cutting blades, forming a built-up edge under high pressure and elevated temperatures. Employing specialized blade materials and geometric shapes mitigates this phenomenon. Maintaining sharp cutting edges is imperative to minimize heat generation, prolong tool life, and achieve precision cuts.
3. Optimize Tool-tip Geometry
Enhance tool-tip geometry by incorporating larger radii or chamfered cutting edges to maximize blade engagement. This strategy effectively reduces cutting forces and mitigates localized heat accumulation. When milling titanium alloys, consider factors such as cutting speed and radial depth to extend tool life and maintain efficiency.
Adjusting parameters and optimizing tool geometry play pivotal roles in extending tool life and ensuring efficiency when machining titanium alloys.
4.Enhanced Machining Techniques for Titanium
In the realm of titanium machining, precise calibration of feed rates, spindle speeds, and chip loads is imperative. This meticulous approach effectively manages tool and machinery stress, averting prolonged dwell time in any given area. Exploring alternative cutting methods offers a promising strategy.
One such method involves augmenting axial cut depth while concurrently diminishing radial engagement. This adjustment optimizes cutting efficiency, mitigates heat generation, and fosters more controlled and productive machining operations.
5.Consistent and Efficient Cutting Practices
Consistency, aggression, and depth characterize cutting practices essential for optimal titanium machining outcomes. These practices minimize tool-workpiece contact time, thereby reducing the risk of work hardening. Swift and efficient material removal effectively regulates heat generation, thereby enhancing tool longevity. This harmonious blend of cutting elements optimizes the machining process for titanium alloys, ensuring a delicate balance between efficiency, precision, and tool longevity.
6.Utilization of High-Pressure Coolant Systems
Maintaining precise temperature control during titanium machining is paramount. Employing high-pressure coolant systems directed at the cutting area ensures optimal cooling of workpieces and tools. This prevents chip adherence, maintains thermal stability, and safeguards against workpiece surface denaturation and tool damage due to excessive temperatures. Augmenting coolant concentration further bolsters tolerance maintenance and extends tool life during titanium machining.
7.Application of Advanced Tool Coatings
The success of titanium machining hinges upon the utilization of coated high-frequency steel tools. Tools featuring coatings like titanium carbo-nitride (TiCN) or heat-resistant titanium aluminum nitride (TiAlN) exhibit the durability requisite for prolonged use. These specialized tools are engineered to withstand the formidable temperatures and forces inherent in titanium machining. Their ability to retain sharpness over extended periods proves invaluable when navigating the challenges posed by resilient materials like titanium.
Concluding Remarks
Titanium and its alloys present numerous advantages that render them invaluable for mobile device applications. Apple’s integration of these materials into the iPhone 15 Pro models exemplifies their commitment to enhancing product quality. Grade 5 titanium ensures these phones achieve an optimal balance of lightweight construction and robustness, while the brushed finish enhances both durability and aesthetic appeal.
However, the machining of titanium poses significant challenges, necessitating collaboration with a proficient manufacturing partner to ensure optimal outcomes. BOYI’s seasoned experts possess a deep understanding of the complexities inherent in titanium machining, offering invaluable assistance for your projects. Leveraging advanced tooling and unparalleled expertise, BOYI delivers CNC machining services that surpass expectations. Reach out to us today to initiate a comprehensive discussion about your project requirements.
